Wiring Diagrams

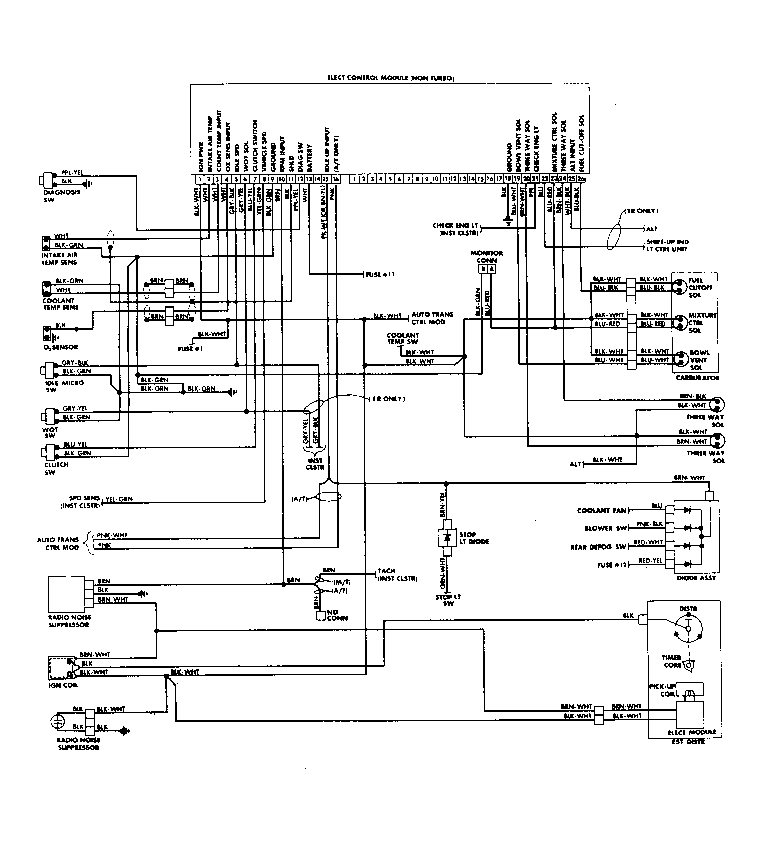

Fig 1: Chevrolet Sprint Non-Turbo FBC System Wiring Diagram

G61354

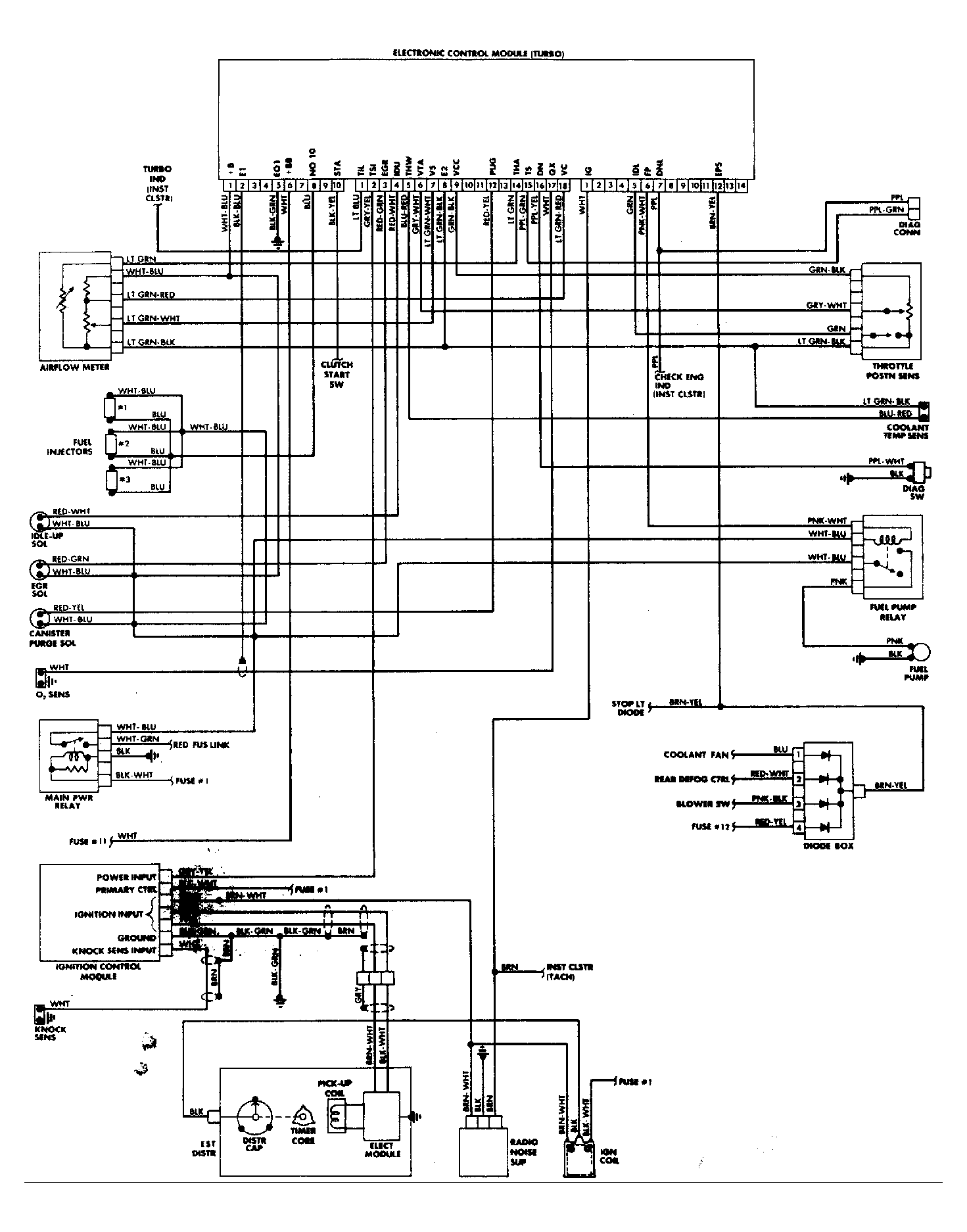

Fig 2: Chevrolet Sprint Turbo FBC System Wiring Diagram

G61355
