Feedback Carburetor System
>>
Diagnostic Charts
Diagnostic Charts

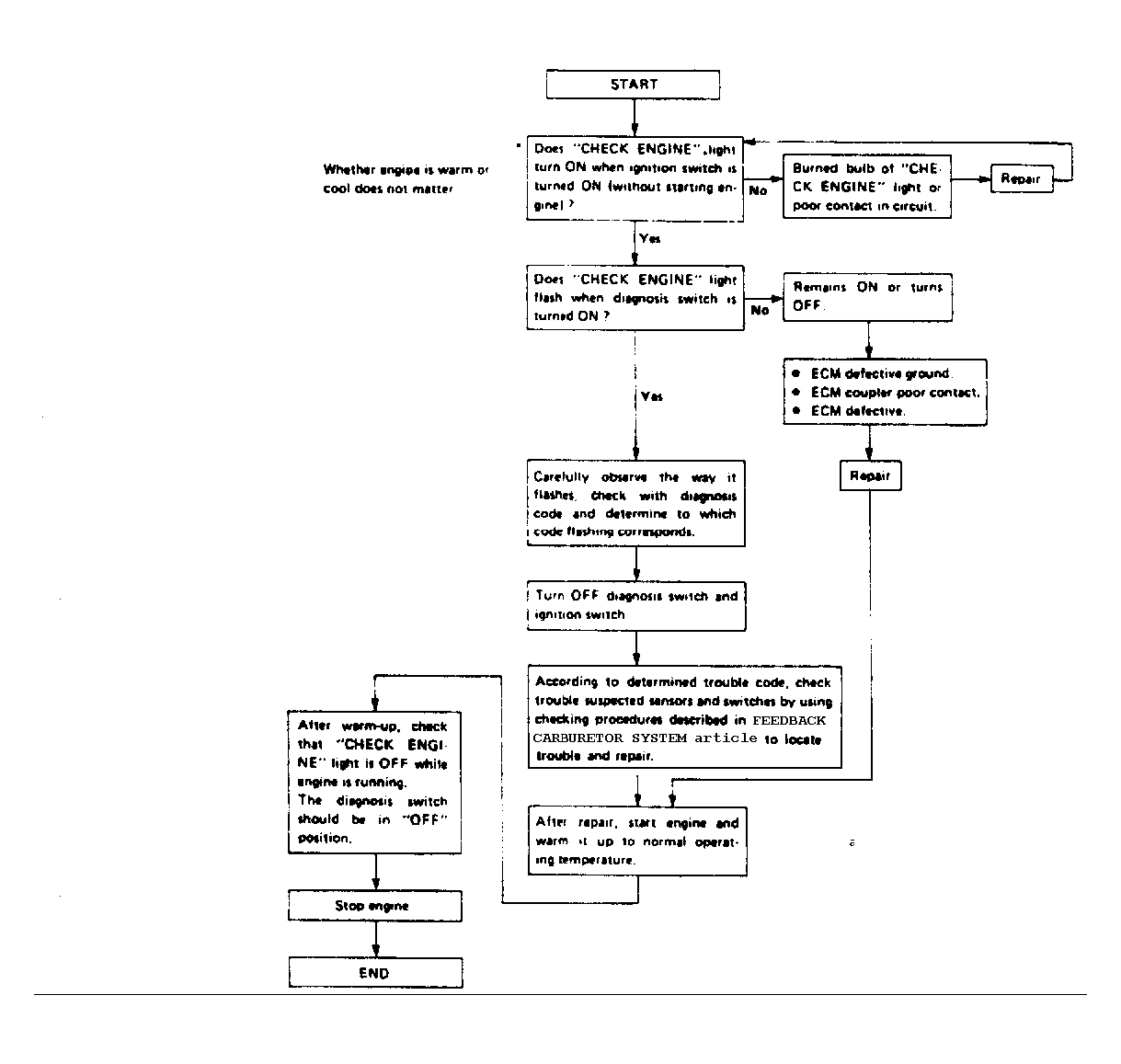

Fig 1: Diagnosis Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
