Component Disassembly & Reassembly: Synchronizer: Reassembly

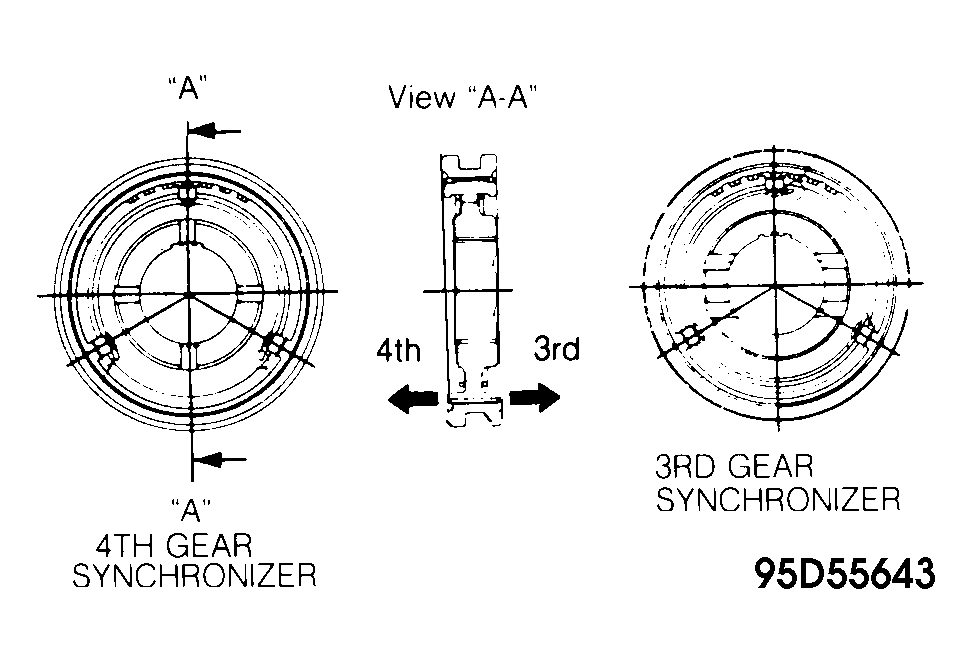

Install synchronizer springs on hubs. Each spring should support all 3 keys. Open portion of insert spring should face in opposite direction from the other so that load is evenly applied to synchronizer keys. See Fig 1 . Spring ends should not interfere with hub.
