Home >> Chevrolet >> 1987 >> Spectrum Express >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Heater System >> Removal & Installation >> Notes

Removal & Installation: Notes

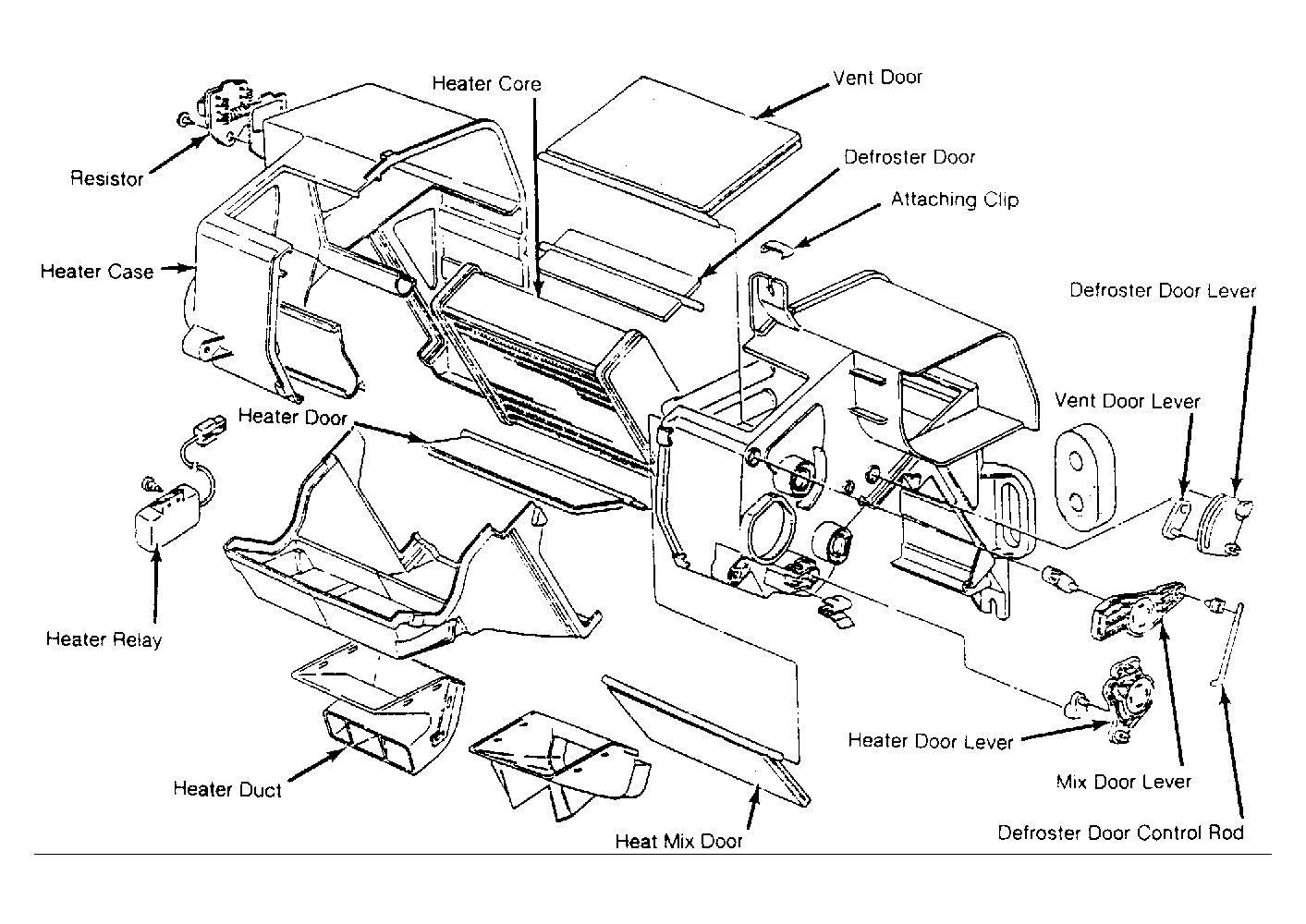

Fig 1: Exploded View of Spectrum Heater Unit

G66086
