EXPERTEC TSB (88-326-6E)

WARNING: This page is about the Forward Control 4.8 T, Automatic, 400/M40, which is a different variant/trim than selected.

Publication date: 1988-08-09
Reference number: 88-326-6E

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 88-326-6E, Date of Issue: 08/09/88

08/09/1988

Chevrolet 88-326-6E

Fig 1: Graphic

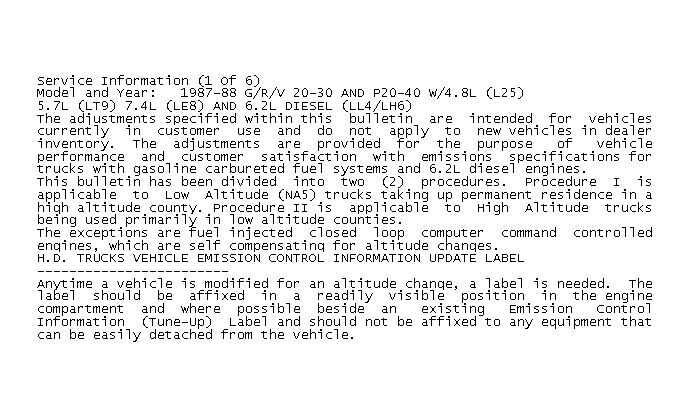

Fig 2: Service Information (1 Of 6)

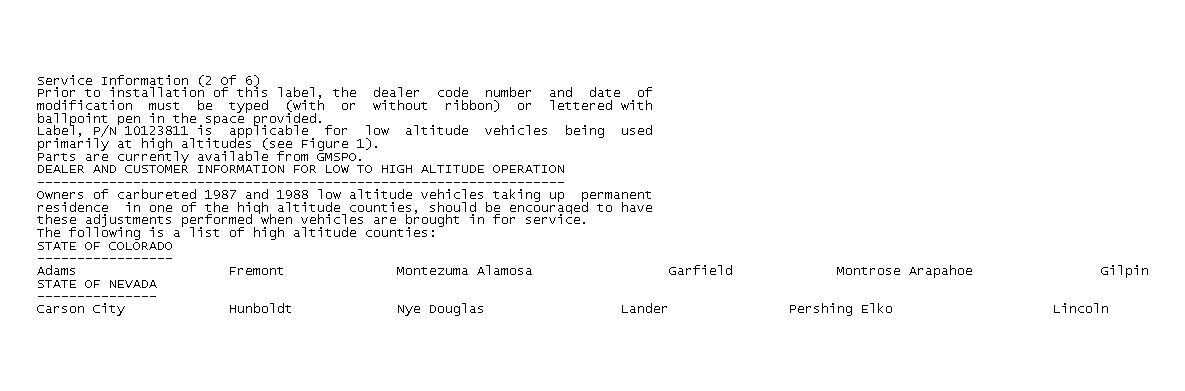

Fig 3: Service Information (2 Of 6)

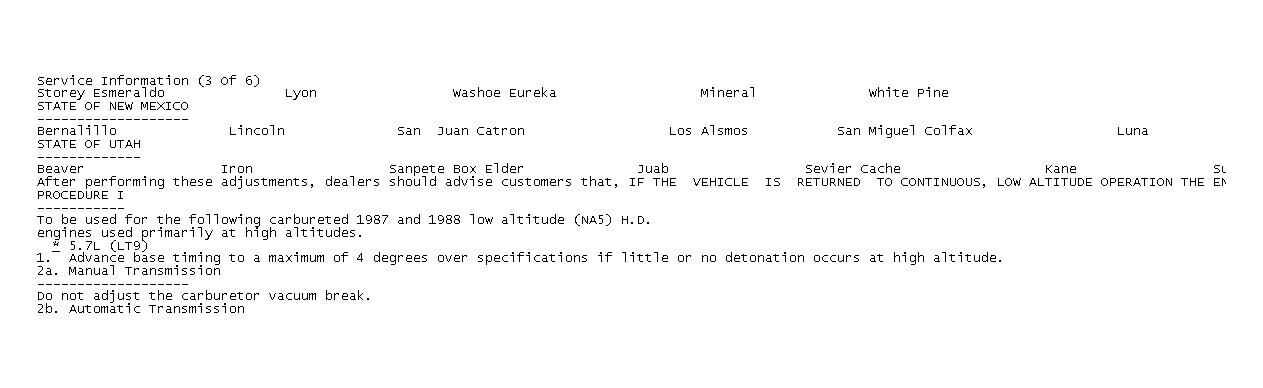

Fig 4: Service Information (3 Of 6)

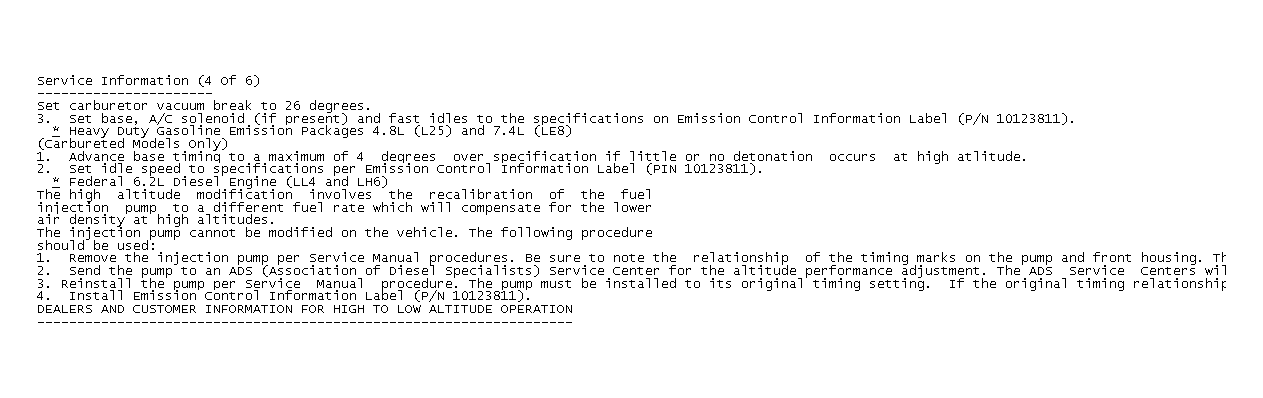

Fig 5: Service Information (4 Of 6)

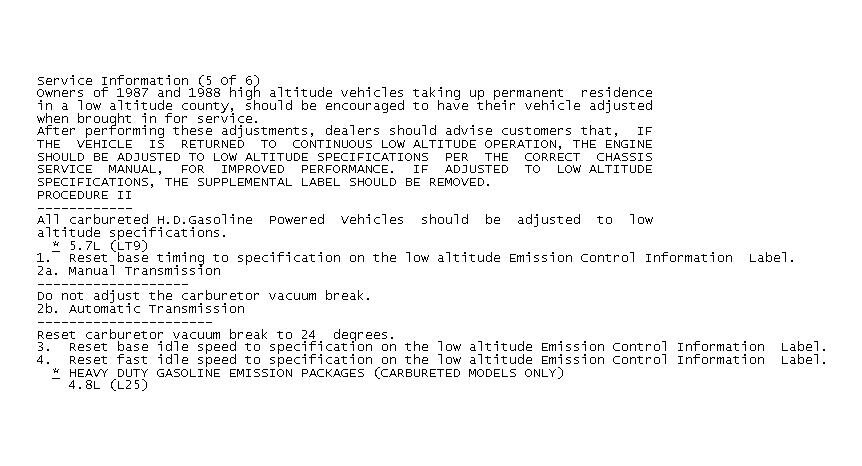

Fig 6: Service Information (5 Of 6)

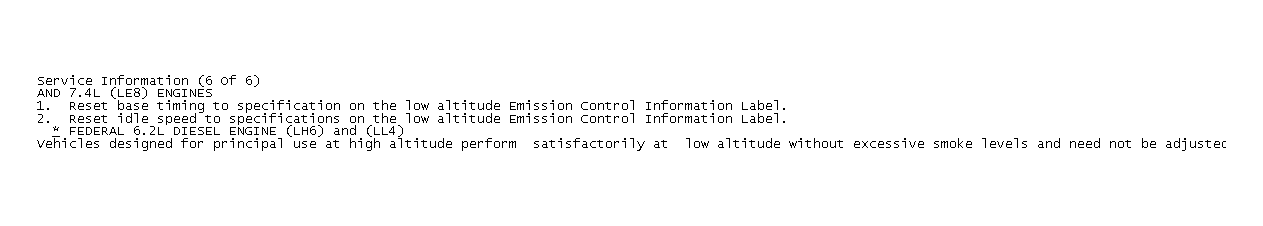

Fig 7: Service Information (6 Of 6)
