Turbo Hydra-MATIC 700-R4

Every diagnosis of automatic transmission problems should begin with a check of the transmission fluid and linkage. Most of the following conditions can be caused by one or more of the following factors:

• Incorrect fluid level.
• Contaminated fluid.
• Improperly adjusted linkage.
• Damaged or worn linkage.

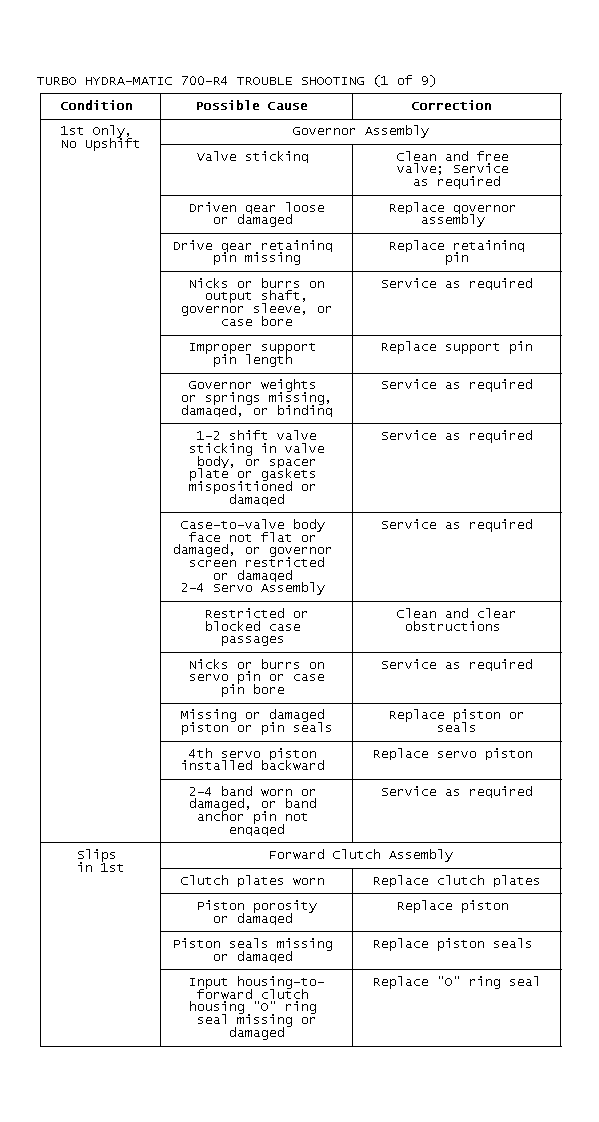

Fig 1: Turbo Hydra-Matic 700-R4 Trouble Shooting (1 Of 9)

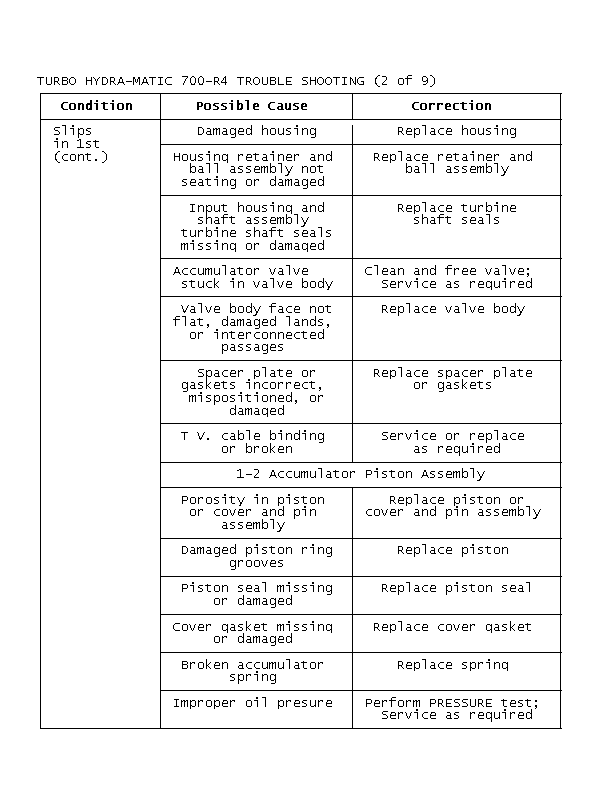

Fig 2: Turbo Hydra-Matic 700-R4 Trouble Shooting (2 Of 9)

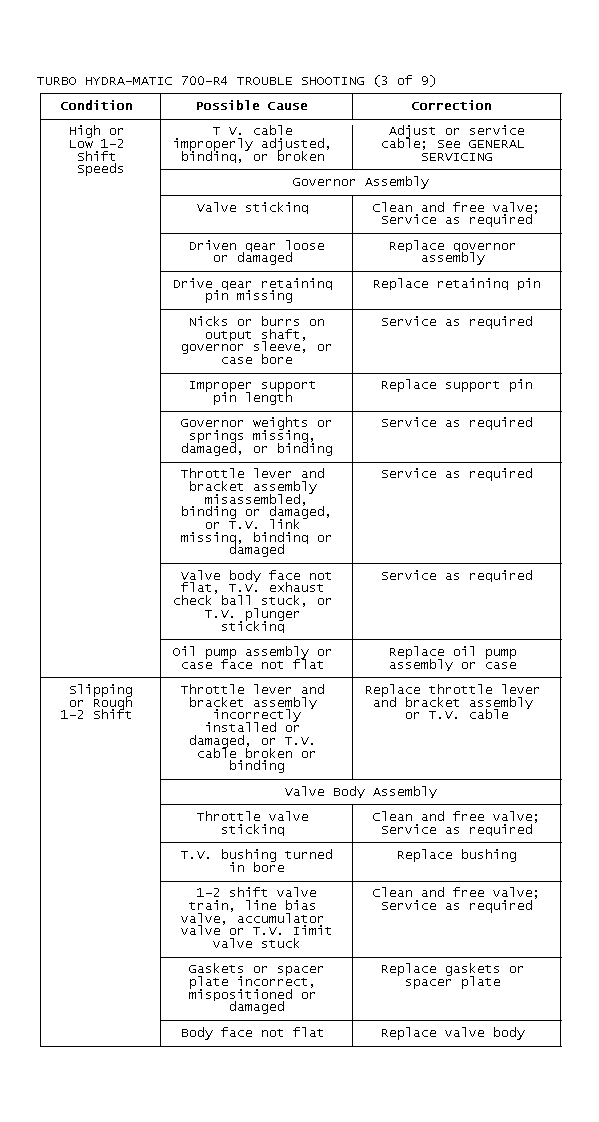

Fig 3: Turbo Hydra-Matic 700-R4 Trouble Shooting (3 Of 9)

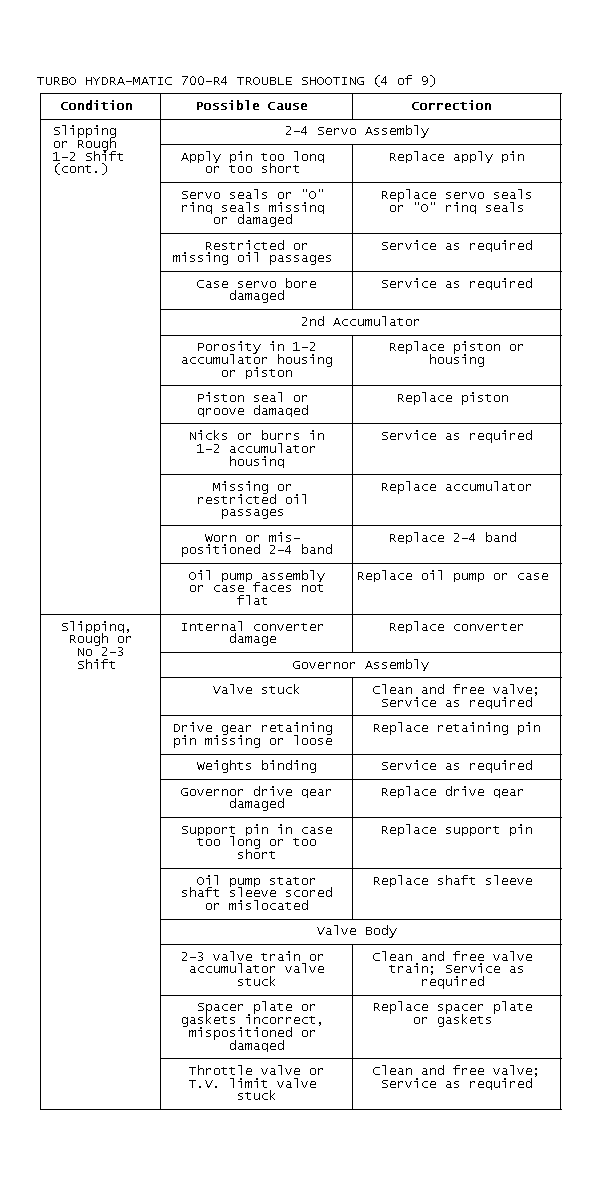

Fig 4: Turbo Hydra-Matic 700-R4 Trouble Shooting (4 Of 9)

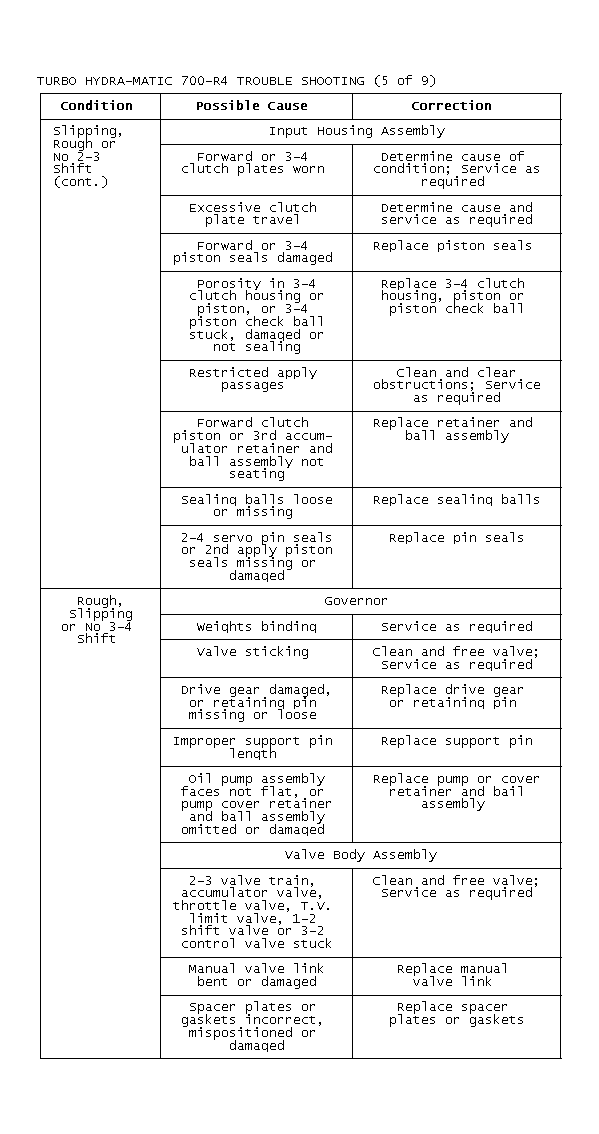

Fig 5: Turbo Hydra-Matic 700-R4 Trouble Shooting (5 Of 9)

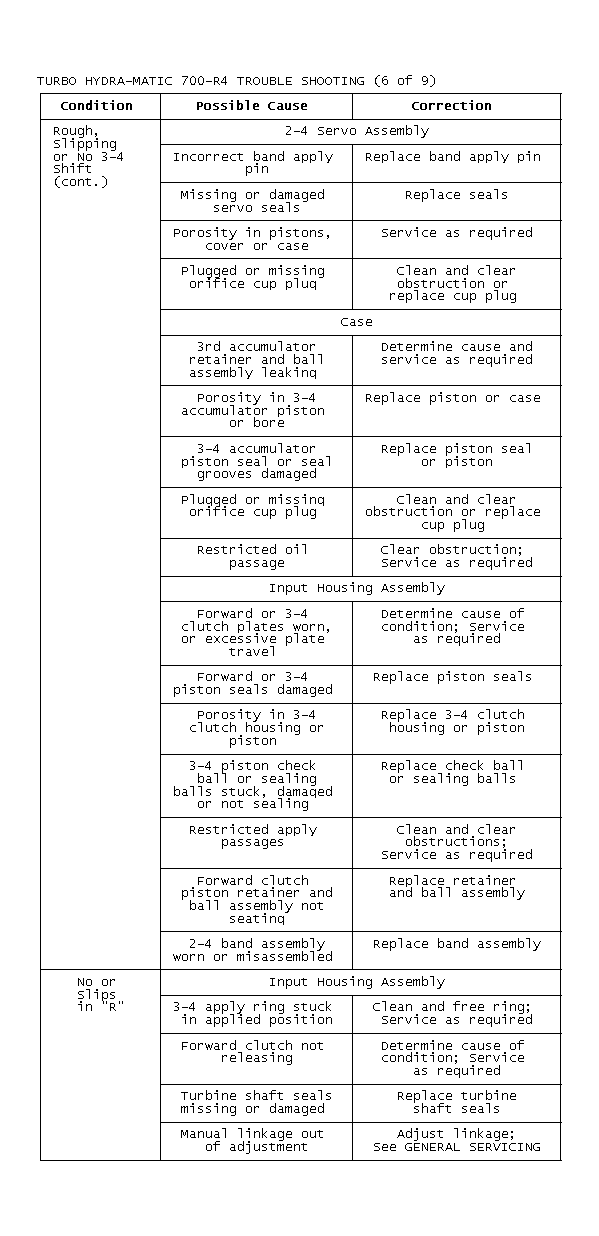

Fig 6: Turbo Hydra-Matic 700-R4 Trouble Shooting (6 Of 9)

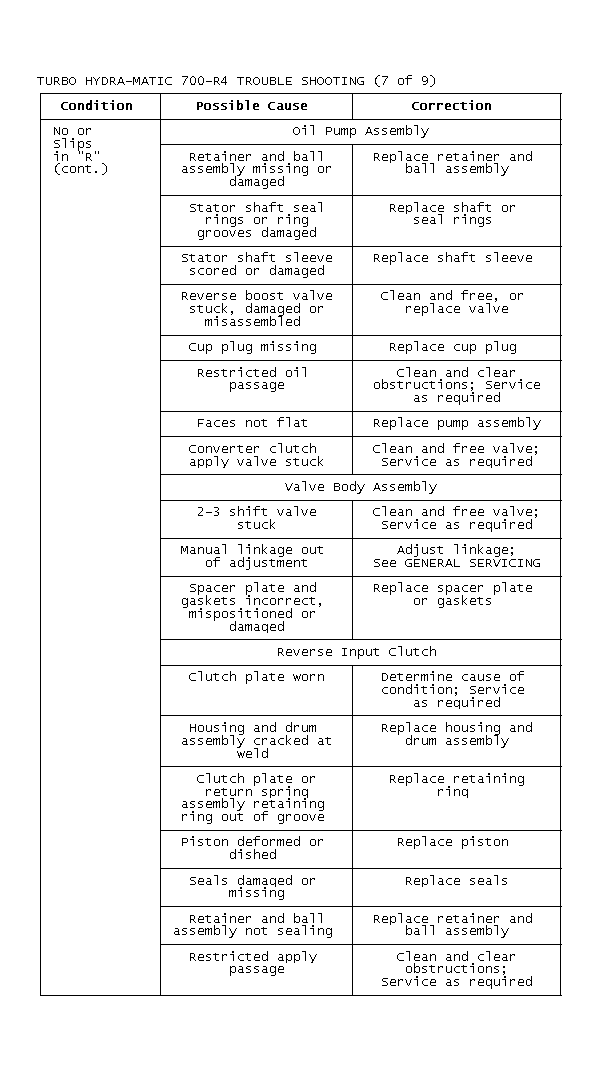

Fig 7: Turbo Hydra-Matic 700-R4 Trouble Shooting (7 Of 9)

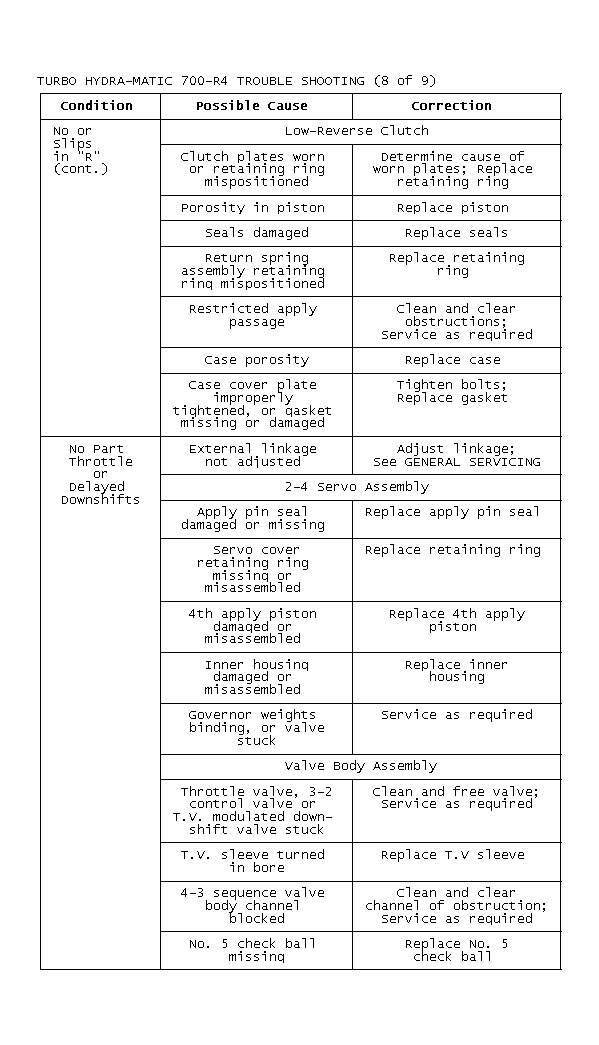

Fig 8: Turbo Hydra-Matic 700-R4 Trouble Shooting (8 Of 9)

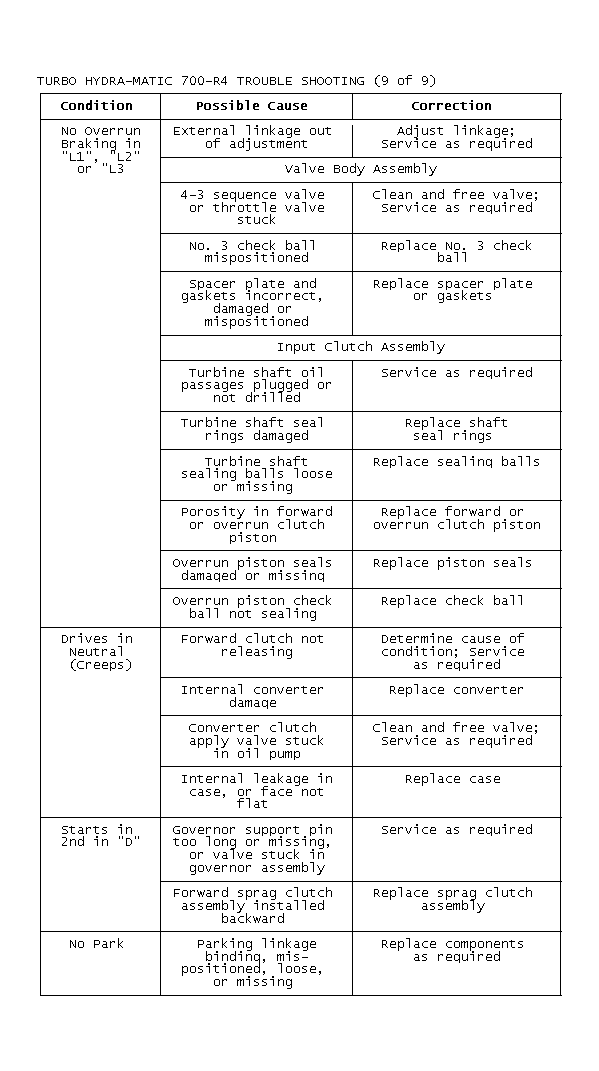

Fig 9: Turbo Hydra-Matic 700-R4 Trouble Shooting (9 Of 9)
