Corvette 2D Convertible, Standard, MH5
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
5.7L PFI Tests W/Codes
>>
Component Locations
Component Locations

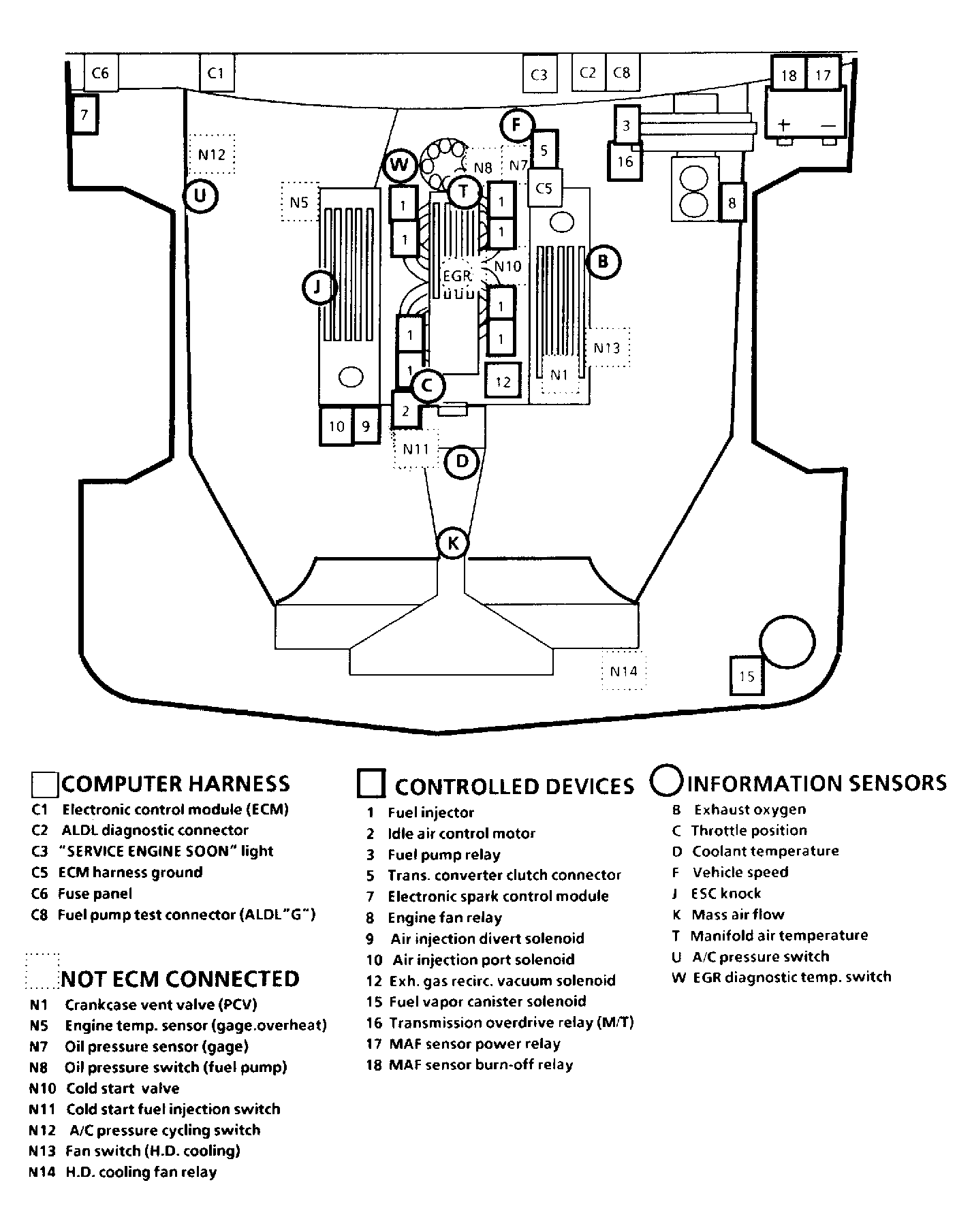

Fig 1: Component Locations
