Choke Unloader

Hold throttle lever in WOT position. Insert correct gauge between lower edge of choke valve and airhorn wall. See Fig 1 . To adjust, bend choke unloader tang on fast idle cam.

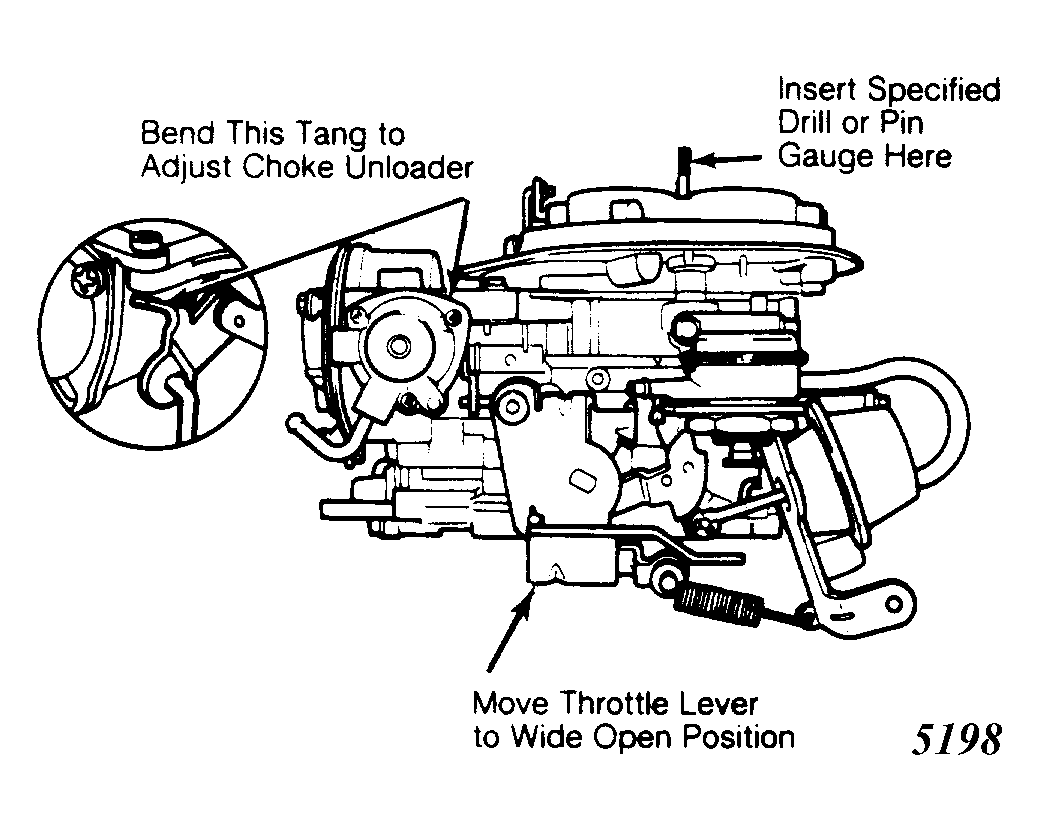

Fig 1: Choke Unloader Adjustment Bend choke unloader tang on fast idle cam to adjust. Courtesy of General Motors Corp.
