Choke Unloader Adjustment
- Using a rubber band, hold choke valve closed. Position throttle at wide-open. Insert specified gauge between lower edge of choke valve and inside wall of air horn.

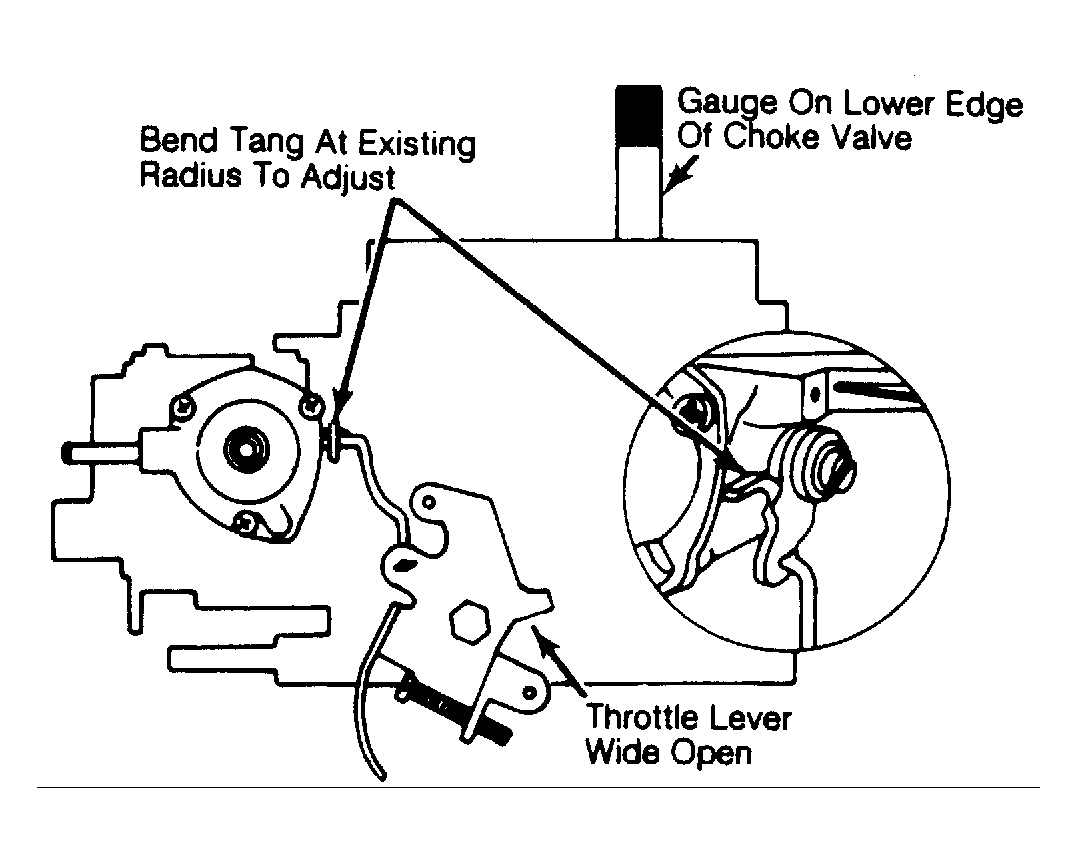

- Ensure that gauge is held verticle for measurement. Clearance is adjusting by bending tang at existing radius. See Fig 1 .
