Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Clutch Diode | In A/C compressor clutch connector. |
| A/C-Heater Blower Motor Resistors | On left side of heater module. |
| ALDL Connector | Below instrument panel to left of steering column. |
| Convenience Center | Behind left side of instrument panel, to left of steering column. |
| Cruise Control Servo | On front of left wheelwell. |

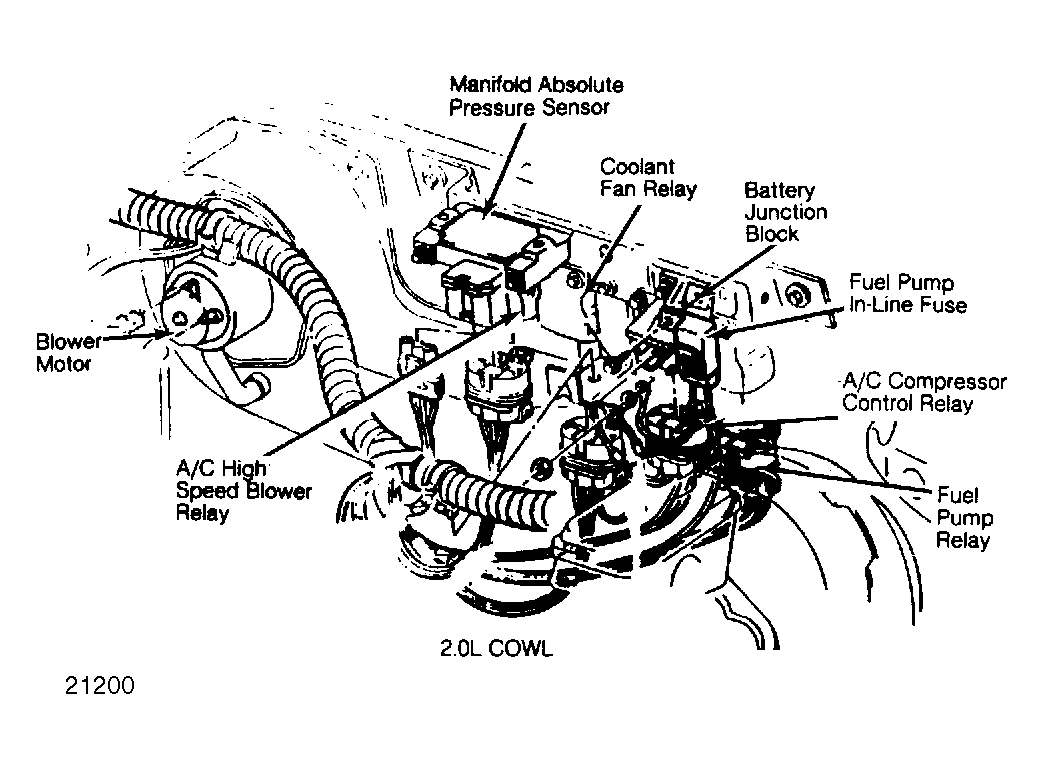

| Fuel Pump In-Line Fuse | On relay bracket, at center of cowl. See Figure & 2. |
| Fuel Pump Prime Connector | Above transmission, at left rear of engine. |
| Fuse Block | Behind lower left side of instrument panel. |
| Fusible Link A (Red) Coolant Fan Relay | At battery junction block. See Figure & 2. |
| Fusible Link B (Red) Charging System | Near starter assembly. |
| Fusible Link C (Red) Charging System | Near starter assembly. |
| Fusible Link D (Red) Accessories | Near starter assembly. |
| Low Coolant Probe | In right front of radiator. |
| Mass Air Flow In-Line Fuse | On relay bracket, at center of cowl. See Figure & 2. |
| Remote Dimmer | Behind instrument panel to left of steering column. |
| Direct Ignition System (DIS) (2.0L) | Below intake manifold, at rear of engine. |
| Direct Ignition System (DIS) (2.8L) | Below exhaust manifold, at front of engine. |
