Repair and Diagnosis: Electrical: Starter: Overhaul: Reassembly

To reassemble, reverse disassembly procedure. Coat all sliding or moving surfaces of shaft splines, bushings and solenoid with multi-purpose grease. Apply molybdenum disulfide grease to clutch assembly cavity to retain steel ball.

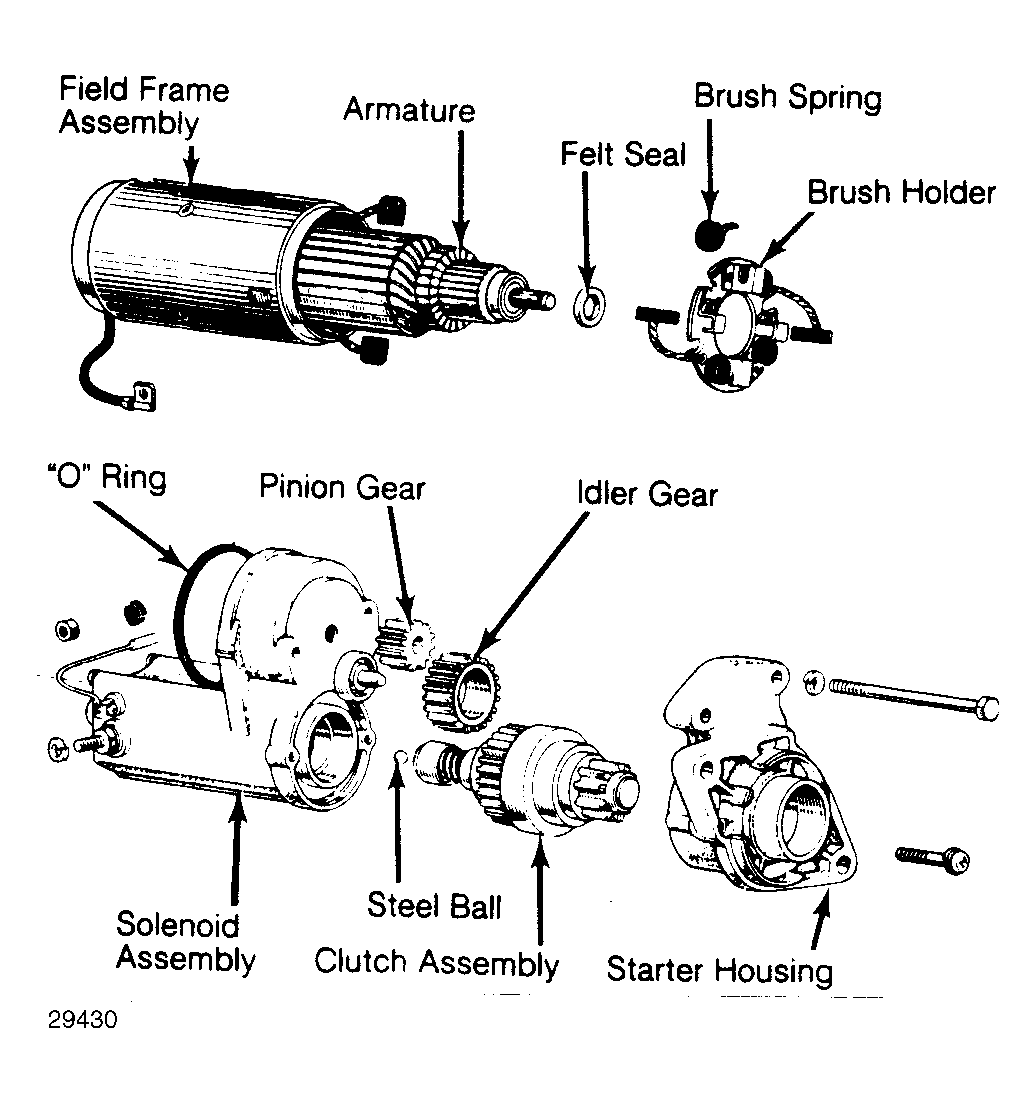

Fig 1: View of Nippondenso Reduction Gear Starter Mitsuba reduction gear starter is similar.
