Neutral Safety Switch

  1. Loosen neutral safety switch bolts at transaxle. Set shift selector lever in "N" range. disconnect switch connector. See Fig 1 .
  2. Connect at ohmmeter between terminals and adjust switch to the point where there is continuity between terminals. Tighten screws and plug in switch connector.

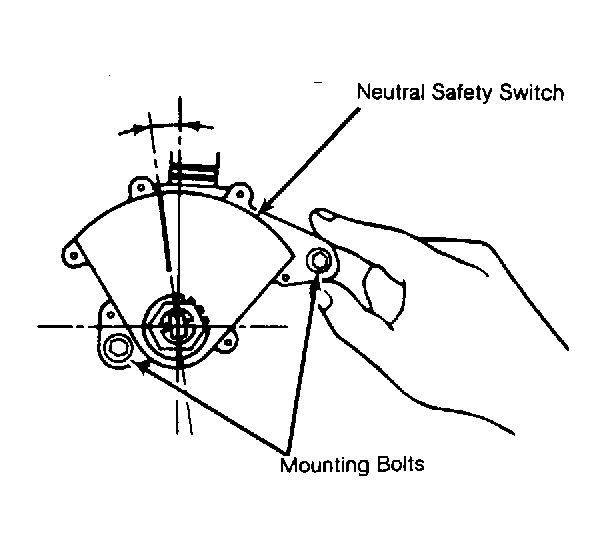

    Fig 1: Neutral Safety Switch Adjustment
    G54122
