Throttle Cable

Depress accelerator pedal to floor and ensure throttle valve opens fully. If not, adjust accelerator link.

Fig 1: Adjusting Transaxle Control Cable
Fully depress accelerator. Loosen throttle cable adjusting nuts. See Fig 2 .
Adjust cable housing so distance between end of boots and stopper on cable is 9-.04" (0-1 mm). tighten adjusting nuts. Recheck adjustment.

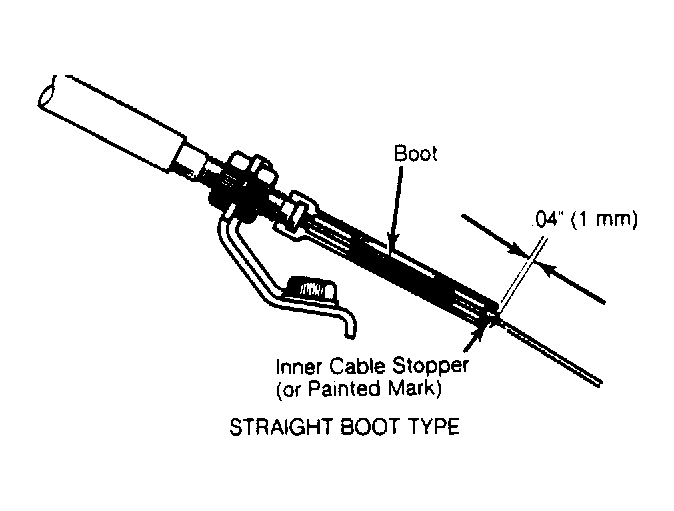

Fig 2: Adjusting Throttle Cable
