Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Ambient Temp. Override Switch | Below left side of dash, on bulkhead connector. |
| A/C Pressure Cycling Switch | On top front of evaporator. See Figure. |
| A/C High Pressure Cut-Out Switch | In right rear corner of engine compartment, on A/C line. See Figure. |
| A/C High Pressure Switch | In right rear corner of engine compartment, on A/C line. See Figure. |
| Ambient Temperature Switch | Under instrument panel, at bulkhead connector. |
| Aux. Cooling Fan Temp. Switch | On right rear of engine, near oil dipstick. |

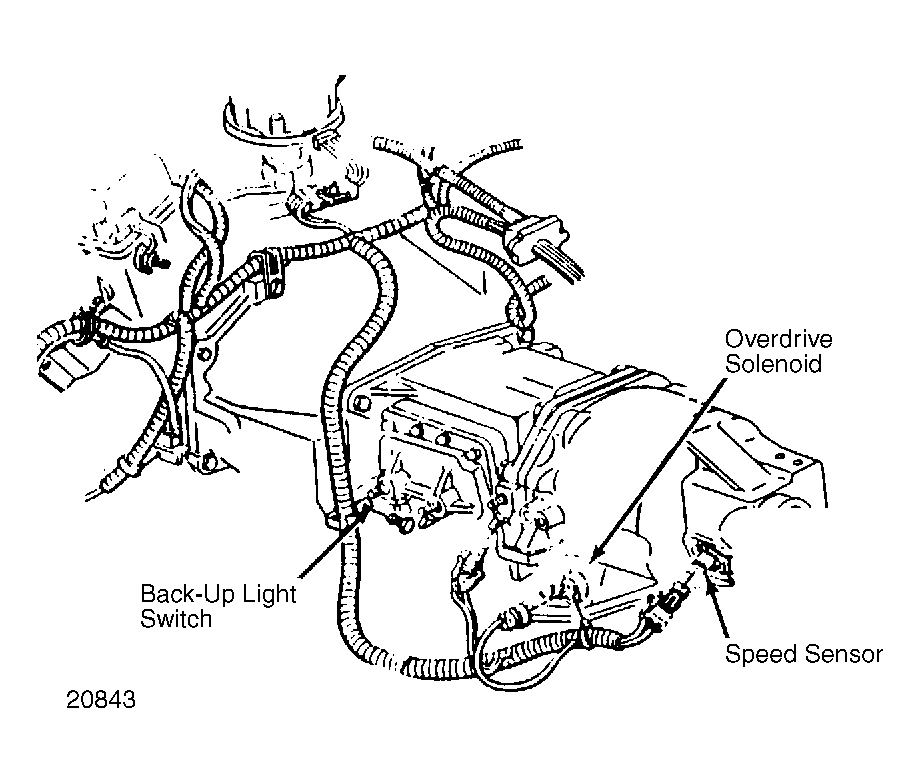

| Back-Up Light Switch | On lower left side of transmission. See Figure. |

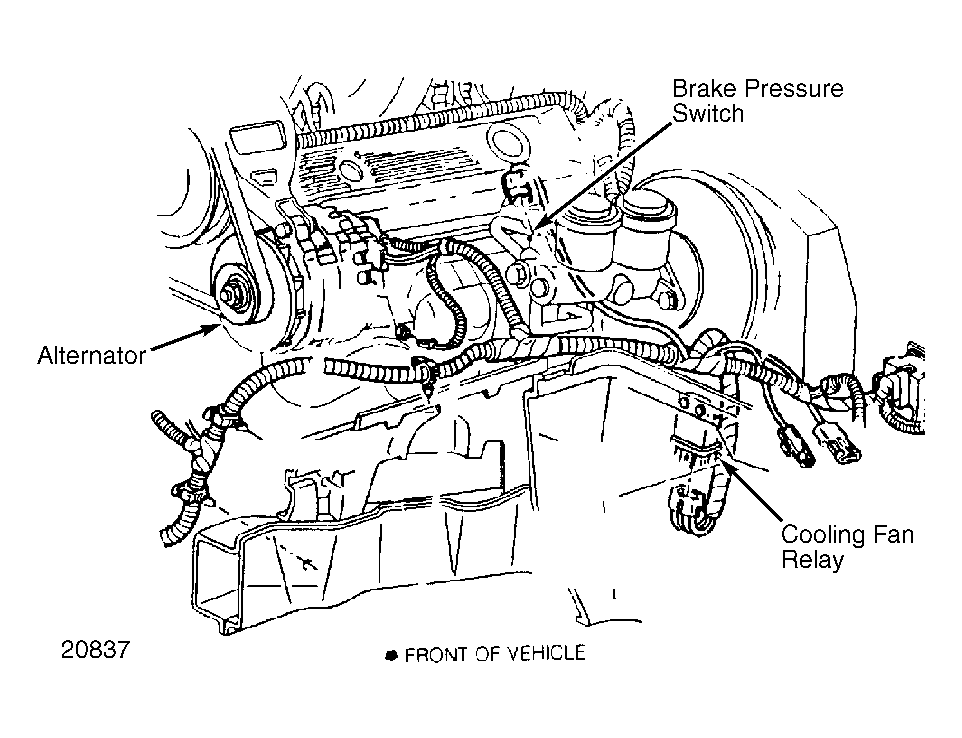

| Brake Pressure Switch | On master cylinder. See Figure. |
| Brake Switch | On brake pedal bracket. |
| Clutch Start Switch | On clutch pedal bracket. |
| Comb. Cruise/Stop Light Switch | On brake pedal bracket. |
| Cooling Fan Temp. Switch | On right rear of engine. |
| Cruise Control Clutch Switch | On clutch pedal bracket. |
| EGR Diagnostic Switch | On right rear of engine, near distributor. |
| Hatch Ajar Switch | In rear compartment, near hatch release. |
| Ignition Key Warning Switch | In top of steering column. |
| Manual Overdrive Defeat Switch | In front floor console. |
| Neutral/Start Switch | On shift lever. |

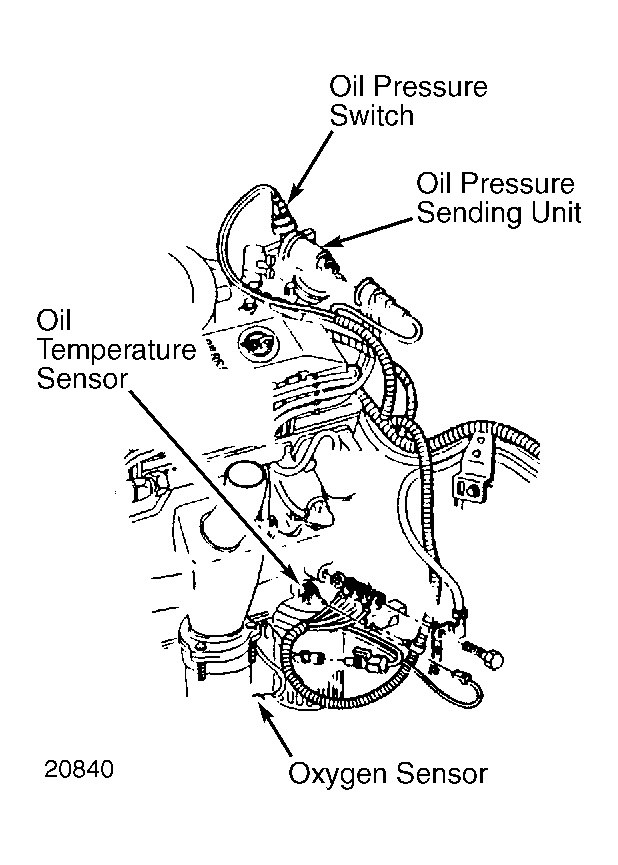

| Oil Pressure Switch | On rear of engine, near distributor. See Figure. |
| Overdrive Enable Switch | Below console, near gear selector switch. |
| Overdrive Select Switch | In console, near shifter. |
| Parking Brake Switch | Under parking brake lever. |
| Pressure Cycling Switch | Top of evaporator housing, on A/C line. |
| Seat Belt Switch | In driver side seat belt assembly. |
| Thermo-time Switch | On front of engine, near right cylinder head. |
| Transmission Switch: 1st Gear | On left side of transmission. |
| Transmission Switch: 4th Gear (Auto. Trans.) | On left side of transmission. |
| Torque Conv. Clutch Brake Switch | On steering column support, behind brake pedal. |
