Chart C7E: Pulse Width Modulated (PWM) EGR System Check
Chart C7E: Pulse Width Modulated (PWM) EGR System Check

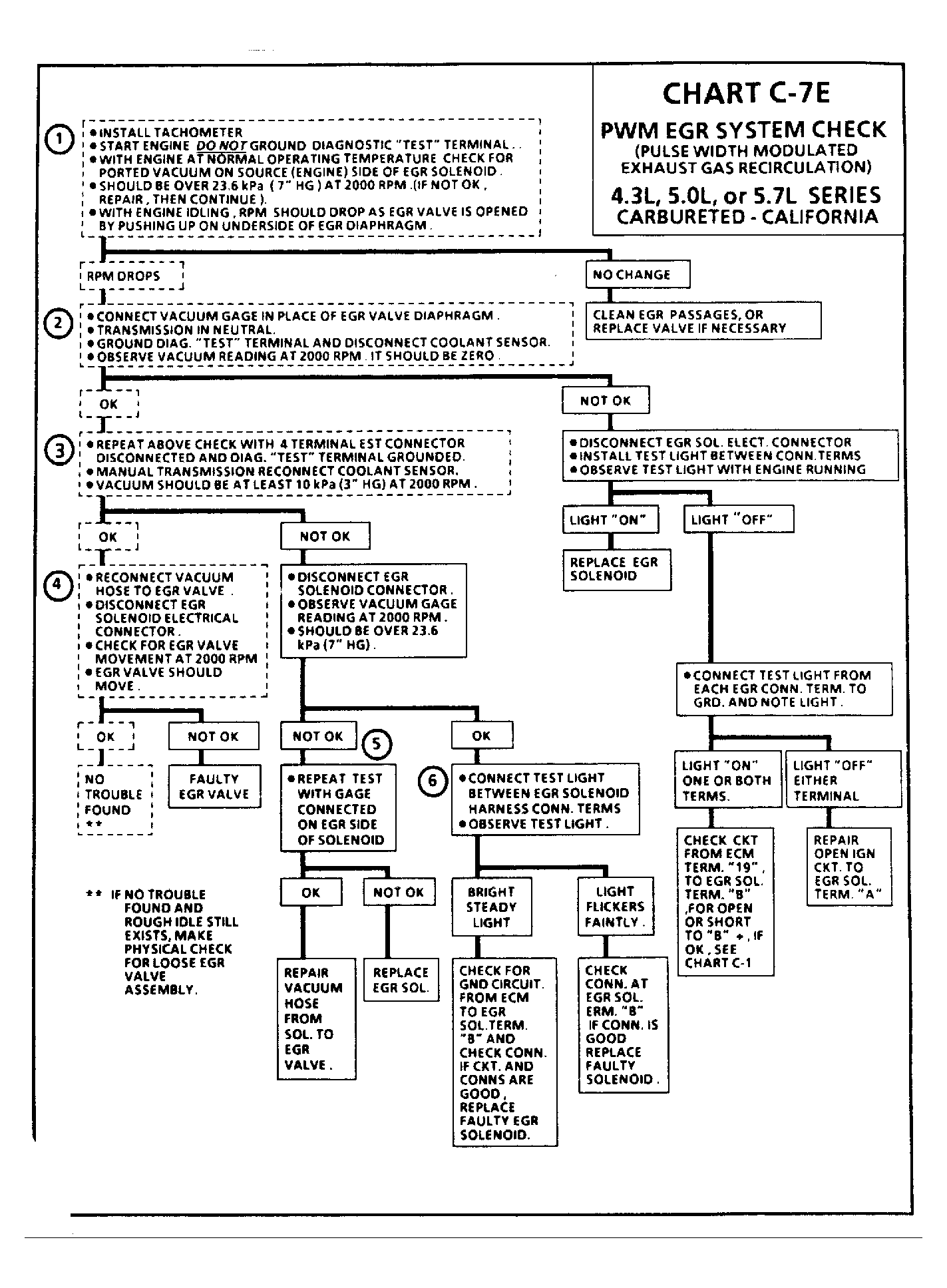

Fig 1: Chart C7E, Pulse Width Modulate (PWM) EGR System Check
