Chart C7A - EGR Valve Check
Chart C7A - EGR Valve Check
There is NO text for CHART C7A - EGR VALVE CHECK.

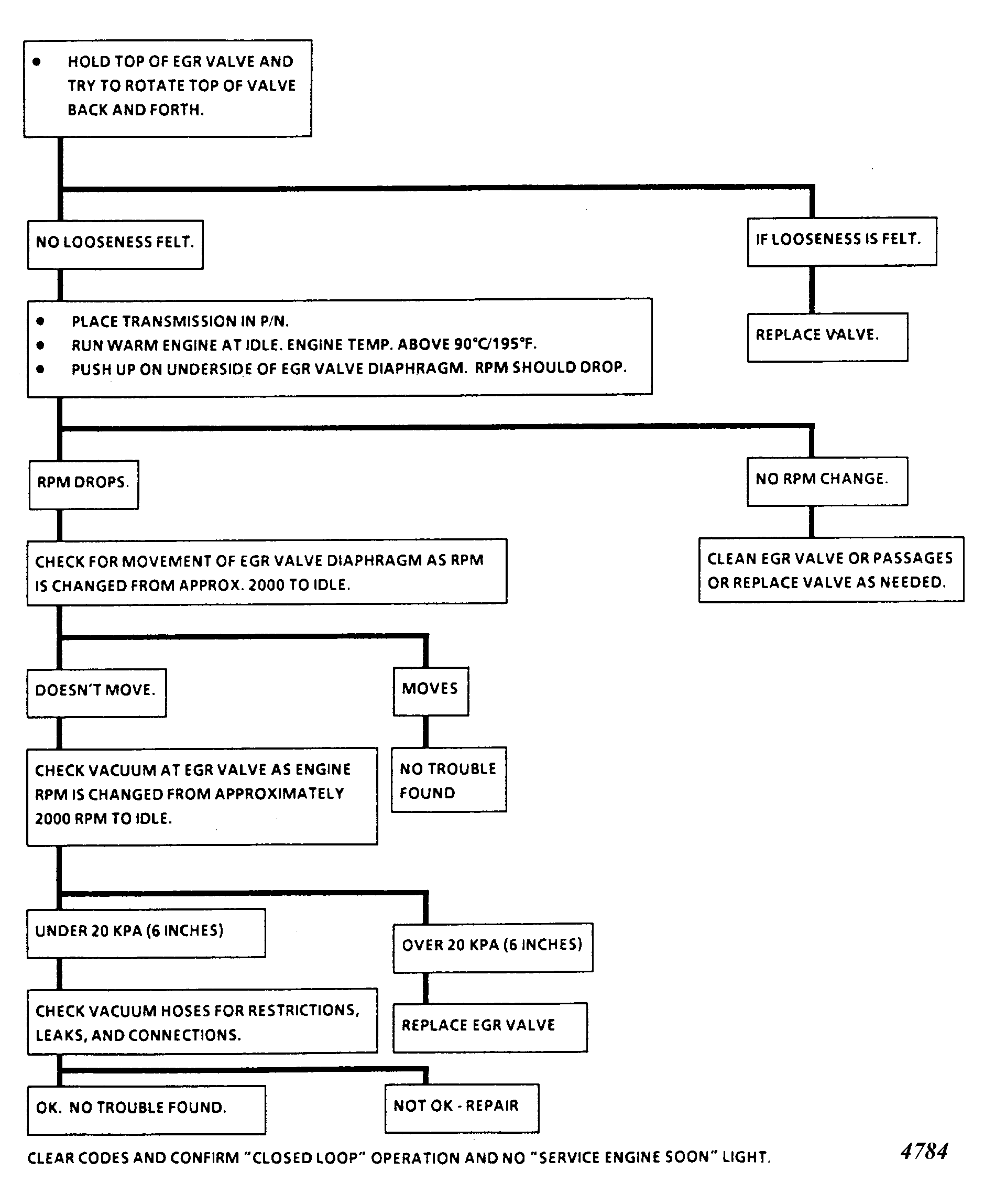

Fig 1: Flow Chart C7A, EGR Valve Check
