Fuel Meter Cover

  1. Install new fuel pressure regulator dust seal into recess of fuel meter body. Install new fuel outlet gasket. Install new fuel meter cover gasket on fuel meter body. Install fuel meter cover.
  2. Ensure pressure regulator dust seal and gaskets are in place. Apply thread locking compound (supplied in service kit) to cover screws. Install lock washers and screws. Tighten screws to 28 INCH lbs. (3 N.m).

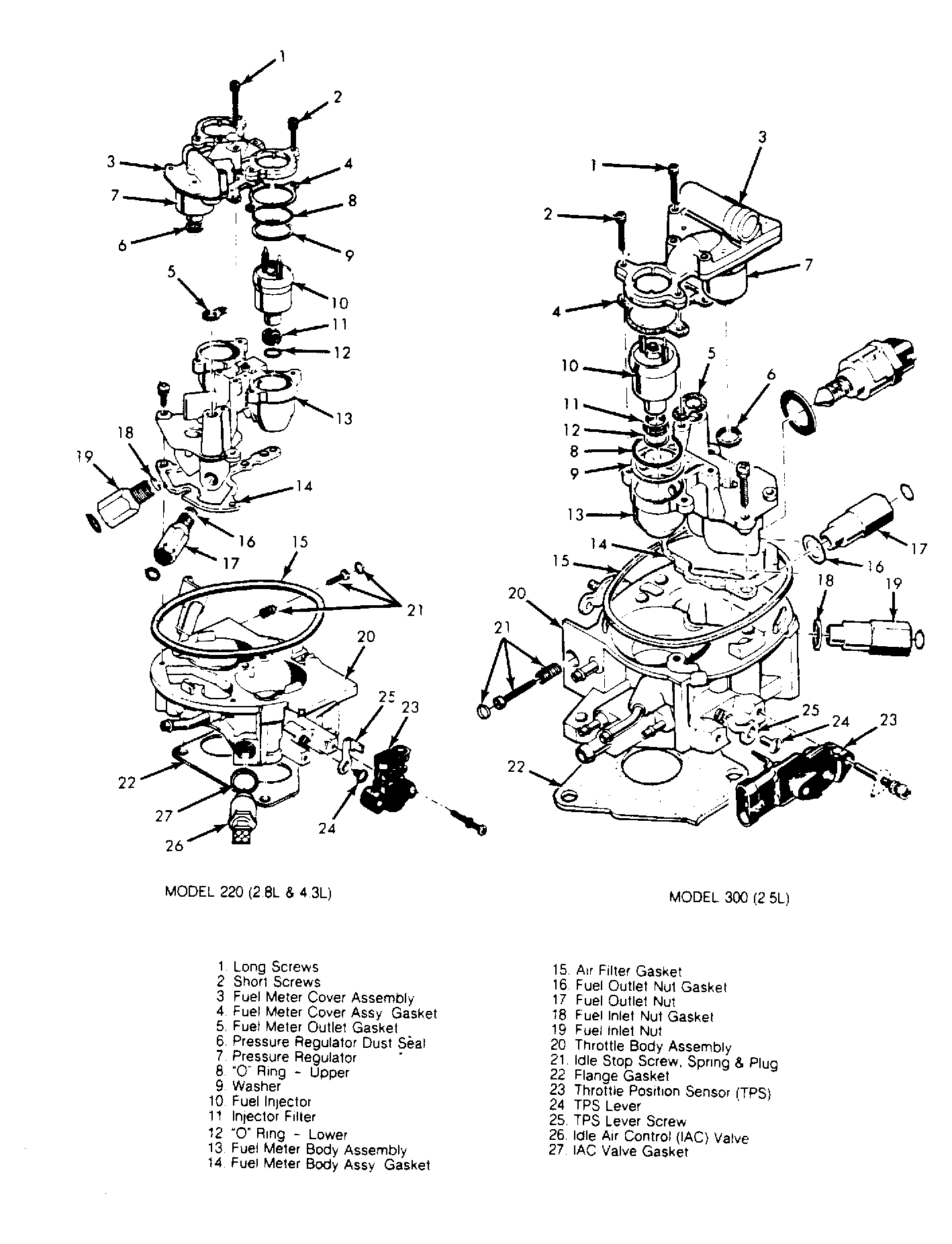

Fig 1: Exploded View of Throttle Body Assembly
G11450
