Throttle Body

Remove throttle position sensor. Invert throttle body assembly and place on clean, flat surface. Remove idle air control valve using a 1-1/4" (32 mm) wrench.

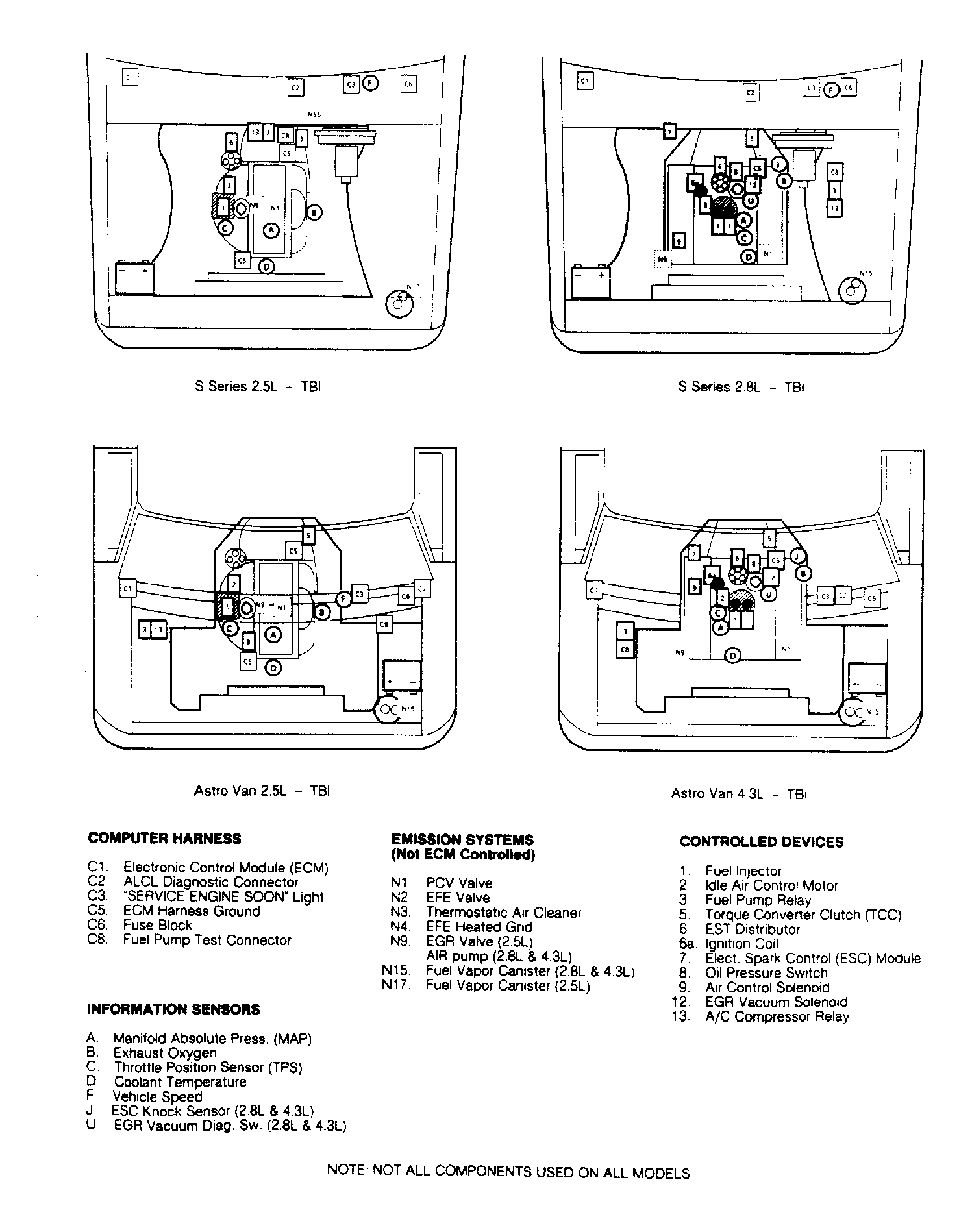

Fig 1: Throttle Body Injection Component Locations

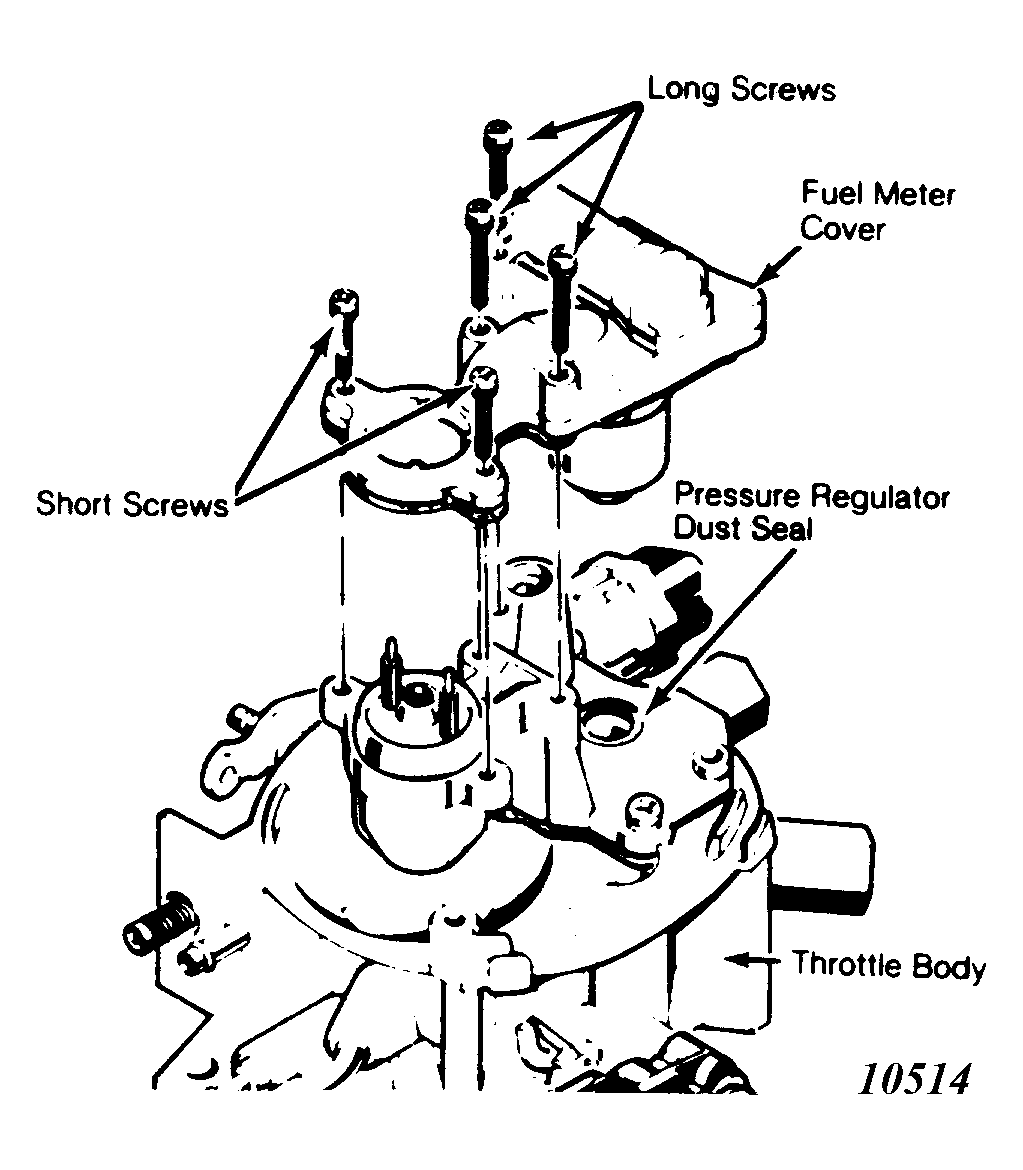

Fig 2: Removing Fuel Meter Cover Assembly

Fig 3: Removing Fuel Injector Assembly
