ECM Terminal Identification

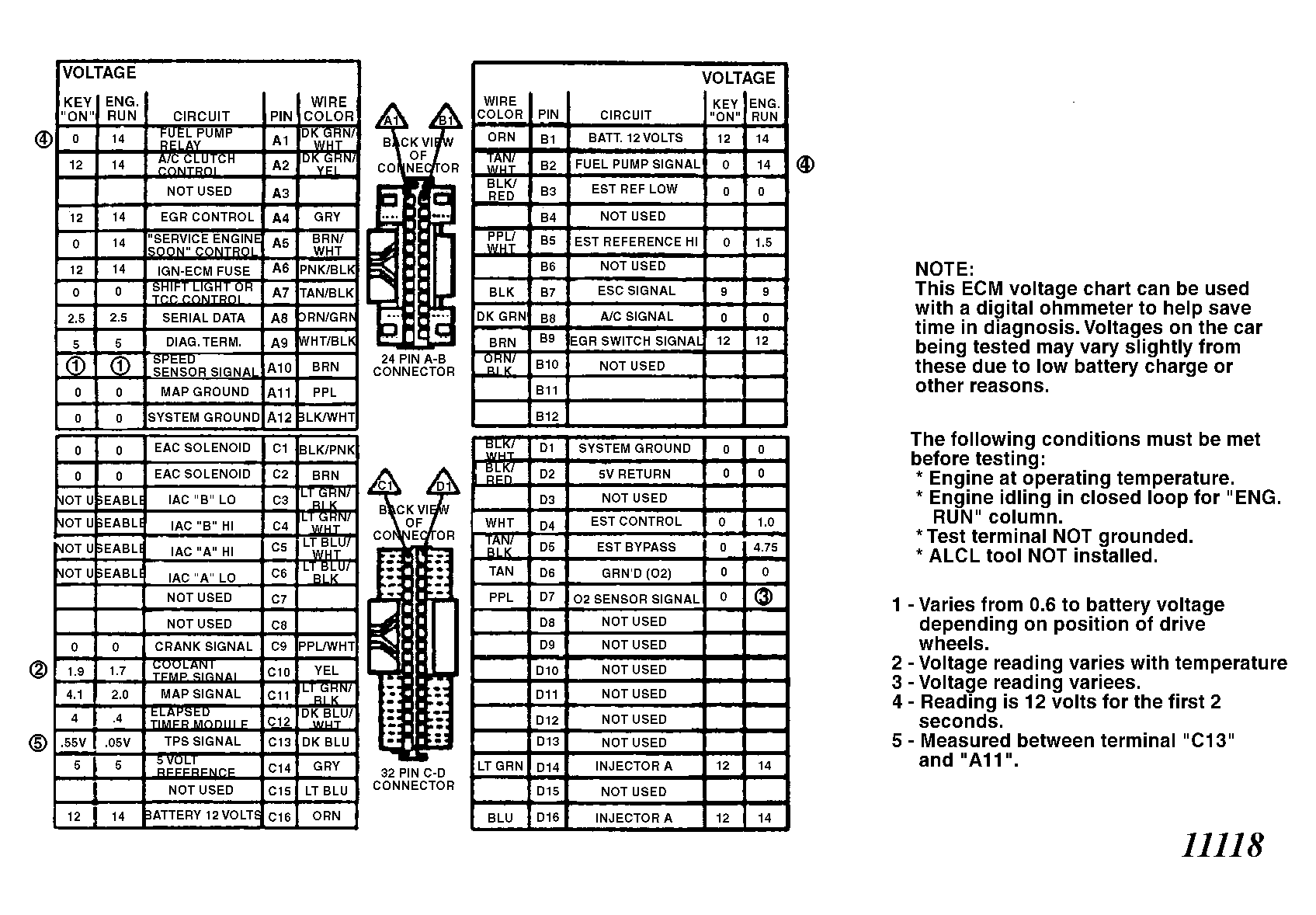

Fig 1: ECM Terminal ID & Voltage Values (2.8L TBI Engine)

G11118

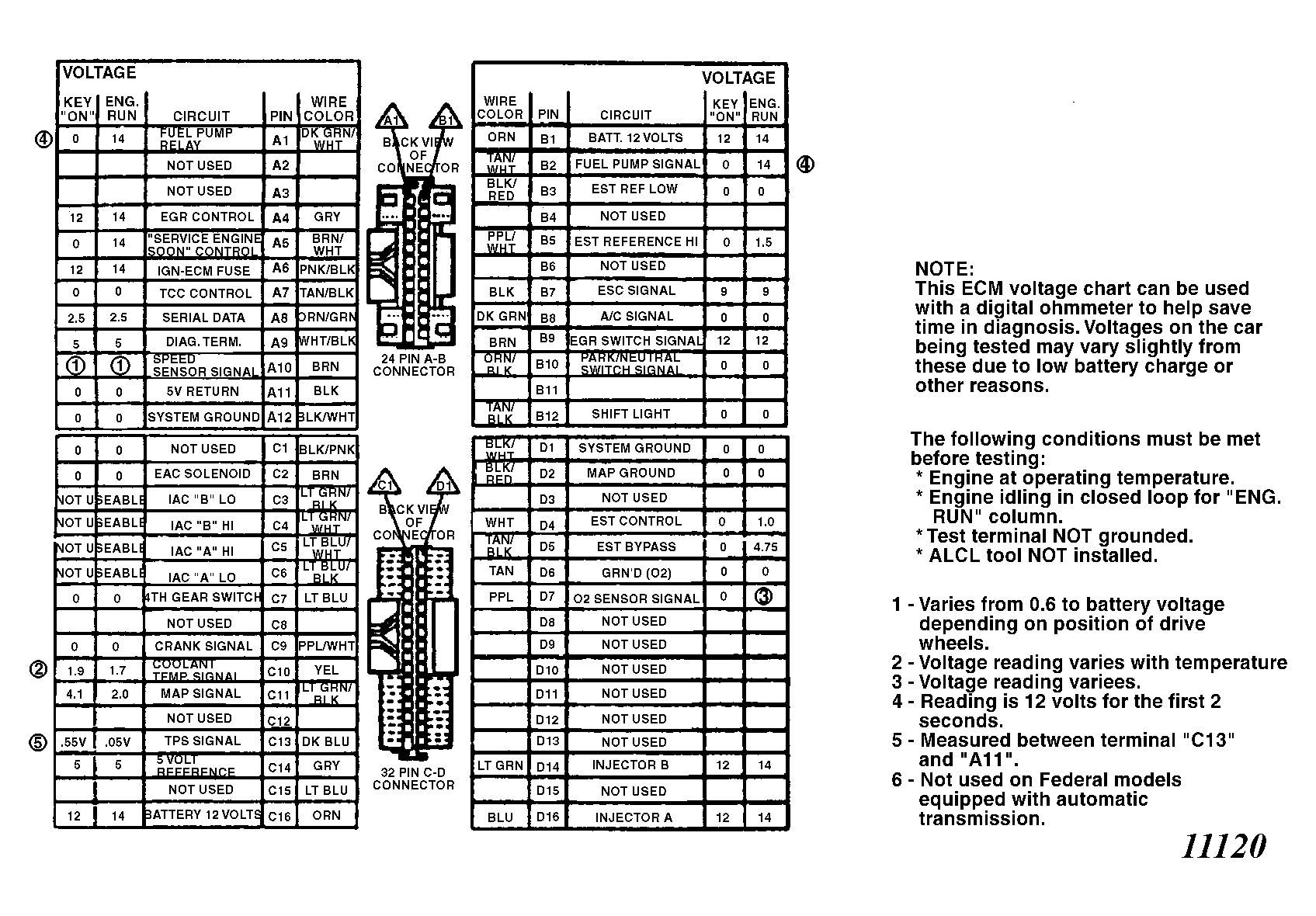

Fig 2: ECM Terminal ID & Voltage Values (4.3L TBI Engine)

G11120
