Chevrolet
>>
1986
>>
Astro Van Passenger, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.5L TBI Tests W/Codes
>>
Chart C4B - Ignition System Check
Chart C4B - Ignition System Check

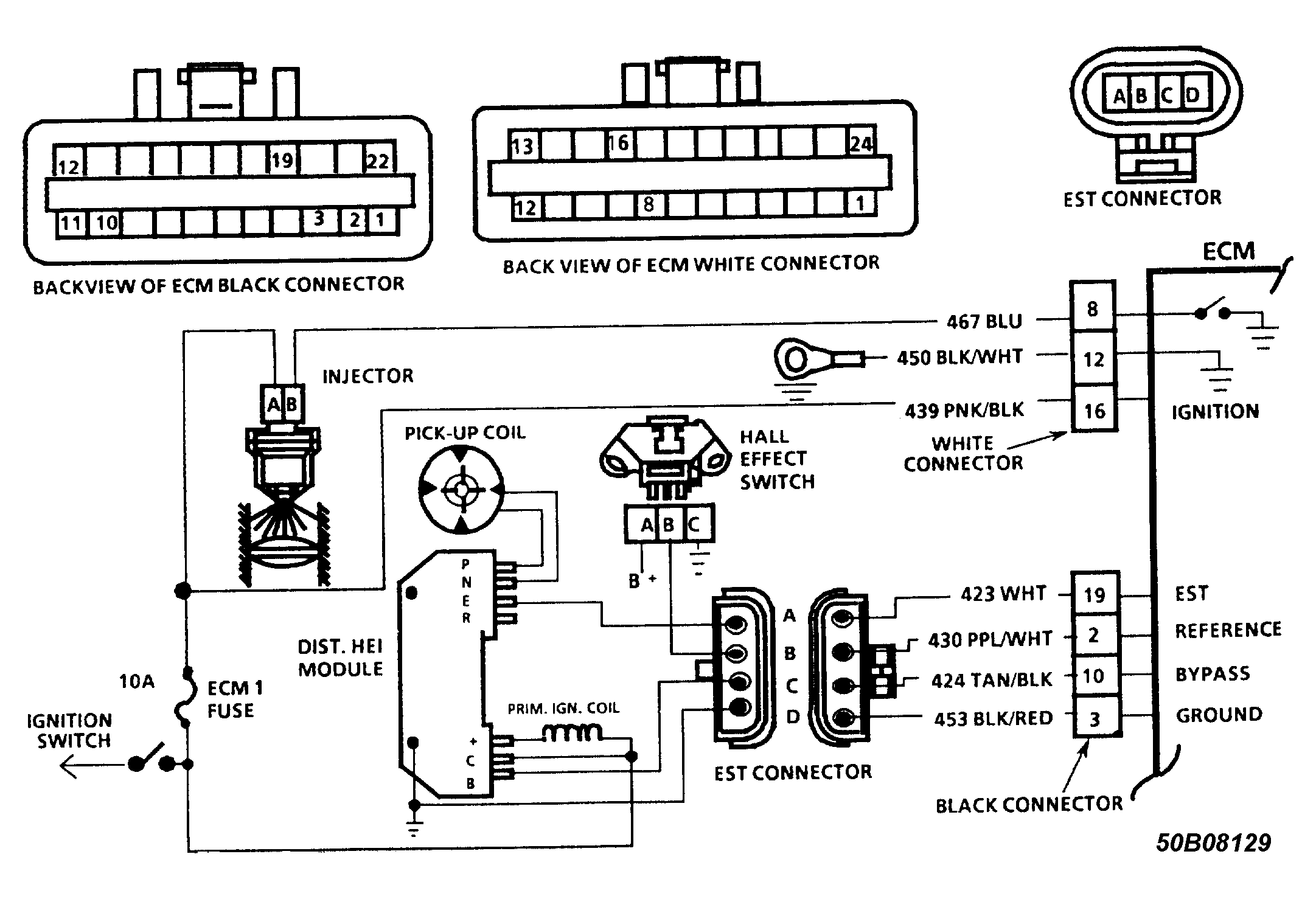

Fig 1: Chart C4B, Fuel Injection (TBI) Ign. Sys Check, Schematic

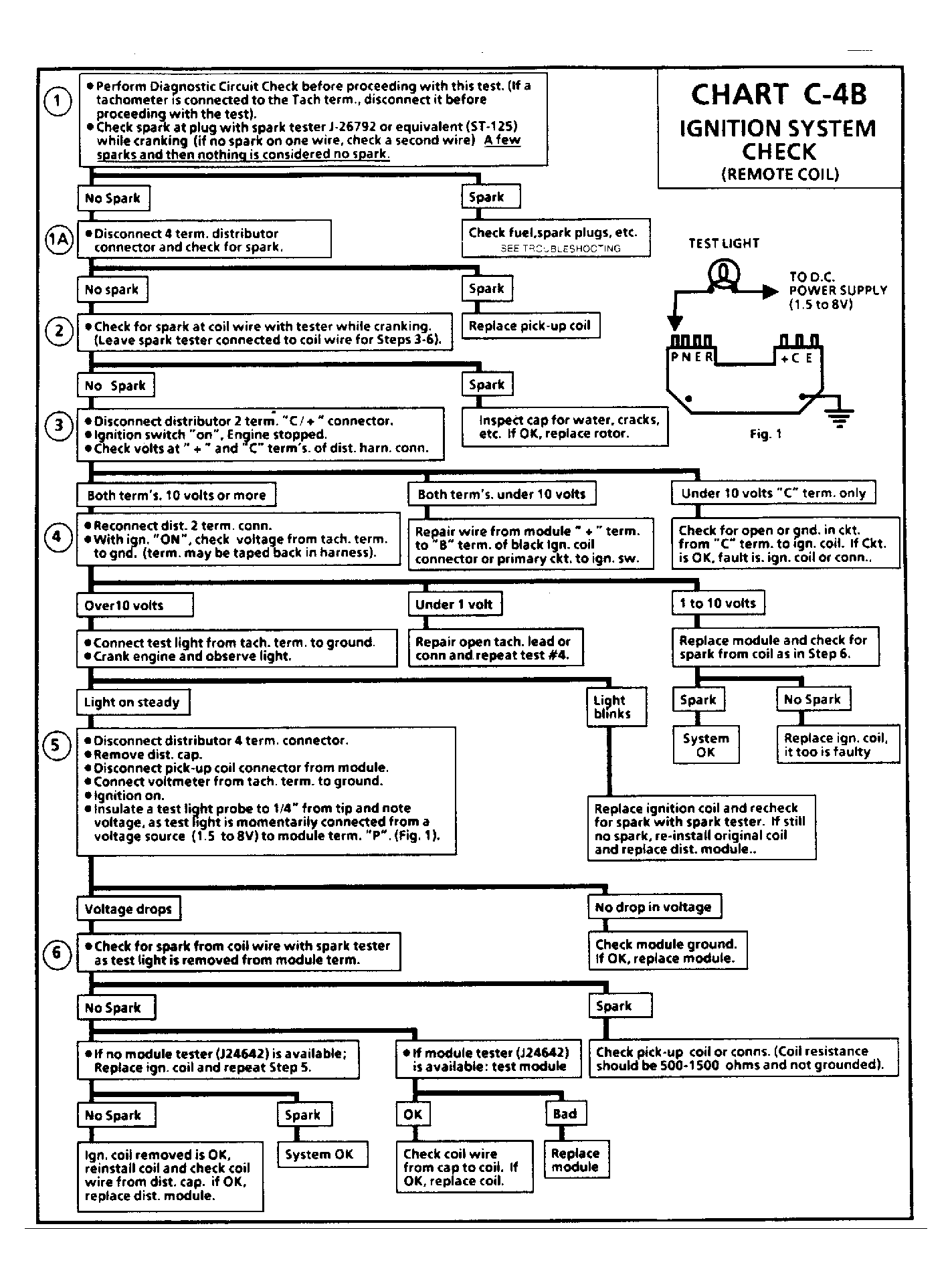

Fig 2: Chart C4B, Fuel Injection (TBI) Ign. Sys Check, Flow Chart
