Gearshift Linkage: Spectrum

Place transaxle and lever in neutral. Turn adjustment nuts, one cable at a time, until shift lever is in vertical position. Tighten adjustment nuts. See Fig 1 .

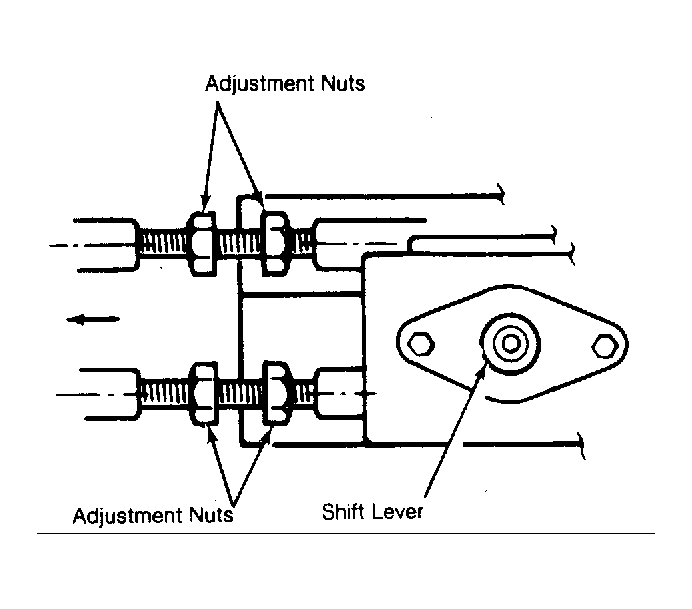

Fig 1: Spectrum Gearshift Linkage Adjustment

NOTE: Sprint gearshift adjustment should be performed only when each shift stroke is short or when gears are not in complete mesh.
