Oil Pressure Control Cable
- Ensure accelerator cable is adjusted. Operate engine until off fast idle speed. Remove the oil pressure control boot. Check gap between boot-to-inner cable stop.

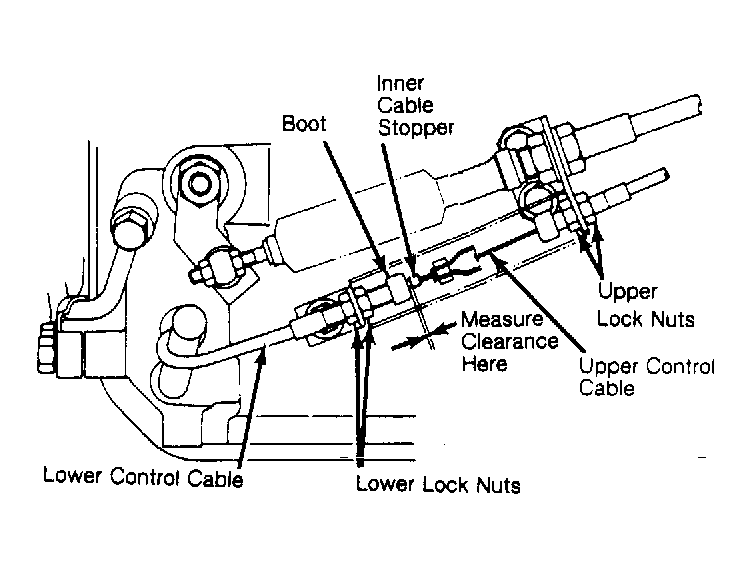

- If clearance is not .000-.002" (.00-.05 mm), loosen upper cable adjusting lock nuts and adjust cable length. If necessary, loosen lower cable adjusting lock nuts. See Fig 1 . Tighten all lock nuts.
