EXPERTEC TSB (86-36)

Publication date: 1986-01-31
Reference number: 86-36

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-36, Date of Issue: 01/31/86

01/31/1986

Chevrolet 86-36

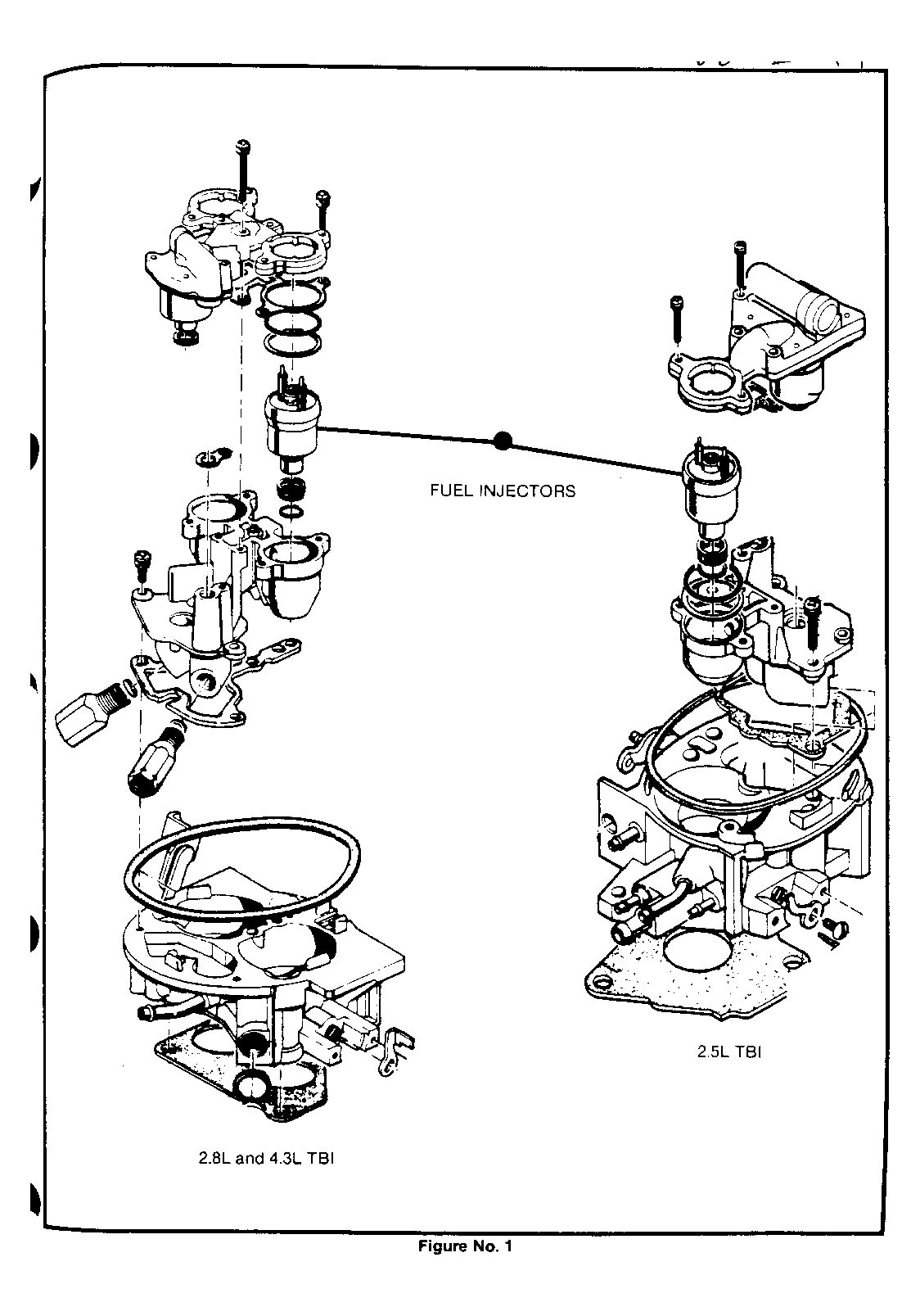

Fig 1: Graphic

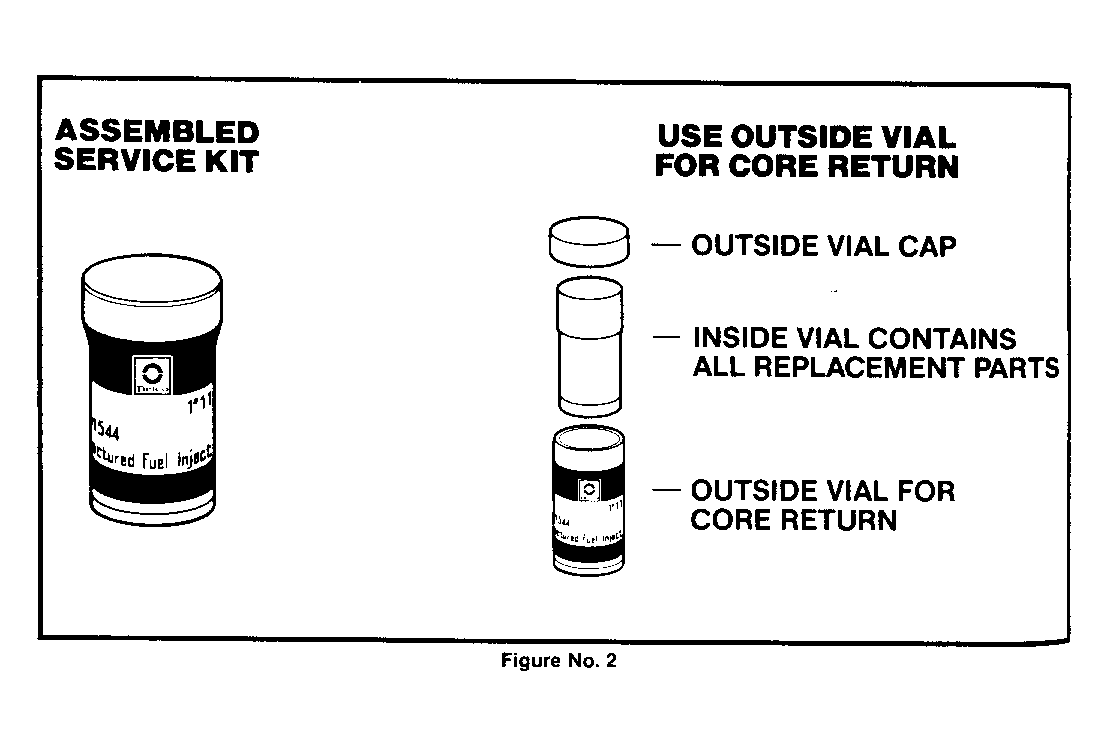

Fig 2: Graphic

REMANUFACTURED FUEL INJECTORS FOR

(TBI) THROTTLE BODY INJECTION

Model and Year: 1982-86 CHEVROLET VEHICLES WITH TBI

---------------

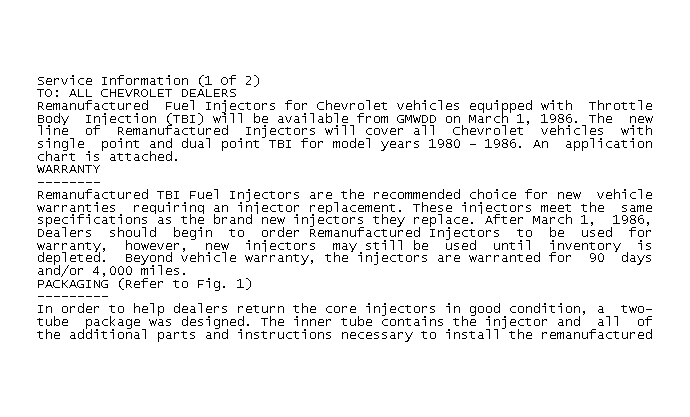

Fig 3: Service Information (1 Of 2)

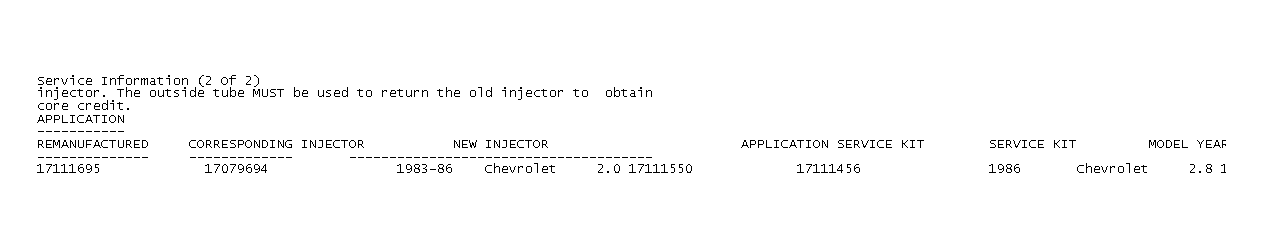

Fig 4: Service Information (2 Of 2)
