EXPERTEC TSB (86-224)

Publication date: 1987-02-05
Reference number: 86-224

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-224, Date of Issue:  02/05/87

REVISED:NO START/ HIGH IDLE - CHANGE PCV SYSTEM

02/05/1987

Chevrolet 86-224

BULLETIN ILLUSTRATION LIST

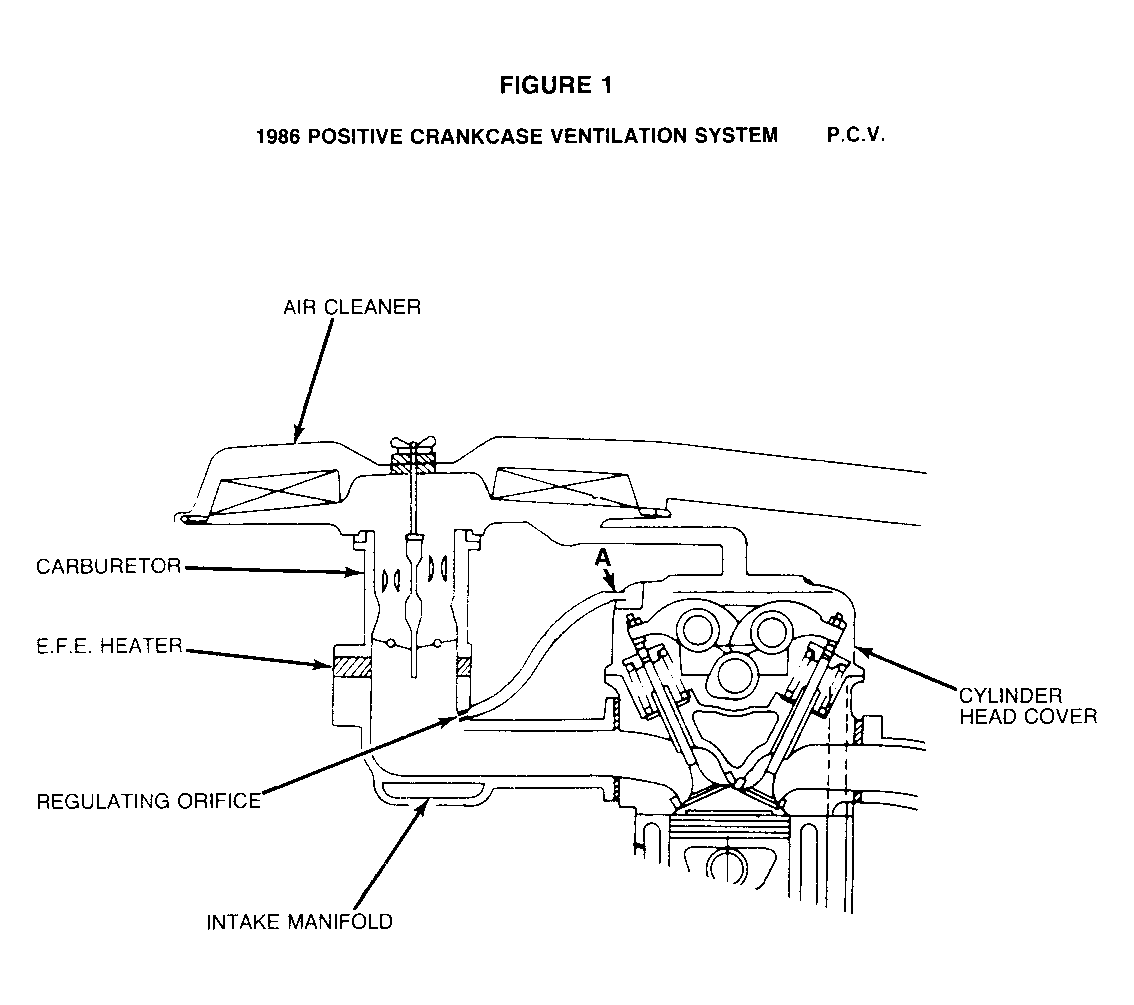

Fig 1: Graphic
GE00WV00027

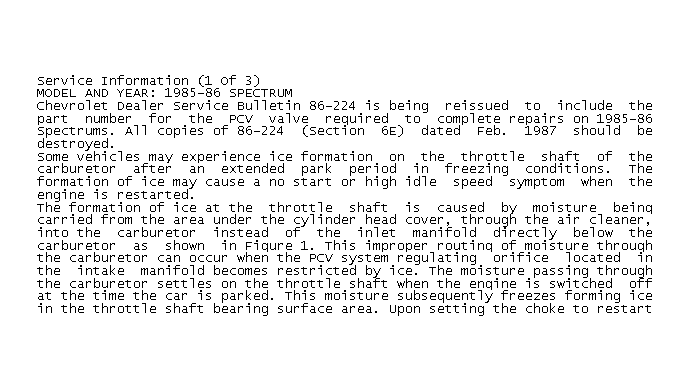

Fig 2: Service Information (1 Of 3)
GB0026635

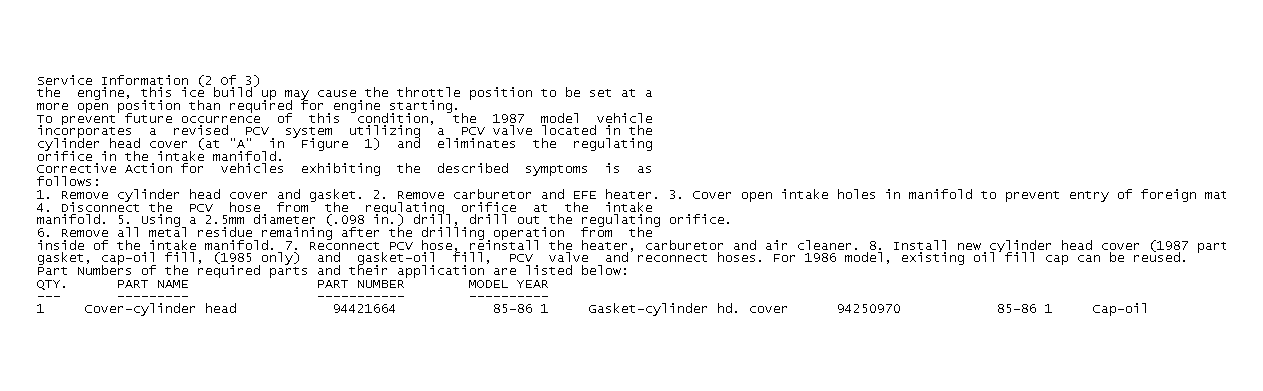

Fig 3: Service Information (2 Of 3)
GB0026636

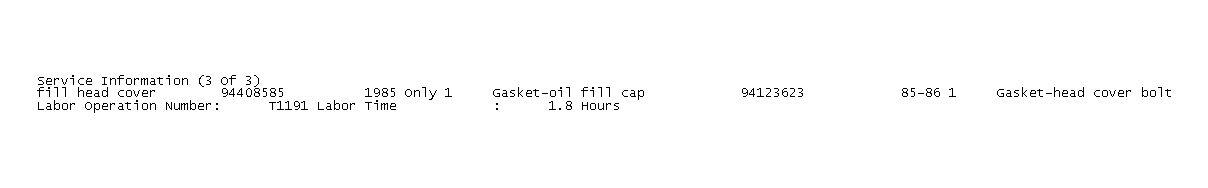

Fig 4: Service Information (3 Of 3)
GB0026637
