EXPERTEC TSB (86-187)

Publication date: 1986-07-23
Reference number: 86-187

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-187, Date of Issue: 07/23/86

Chevrolet 86-187

07/23/1986

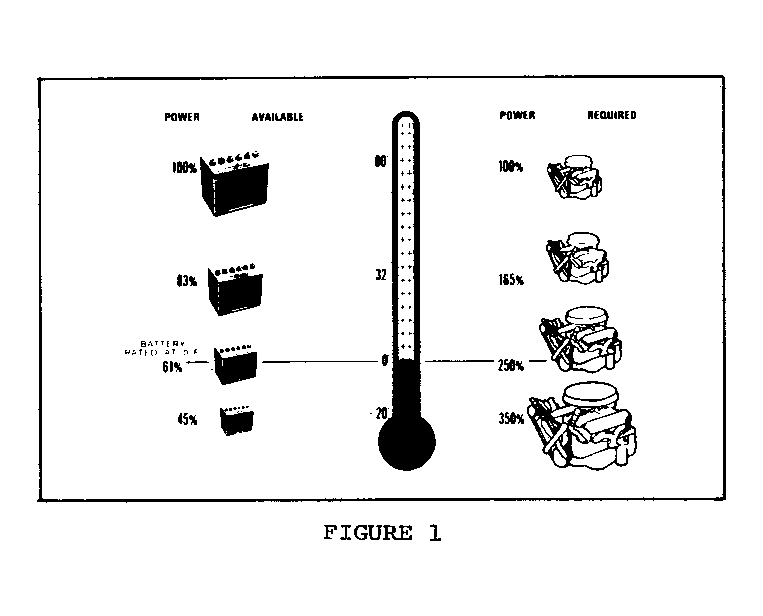

Fig 1: Graphic

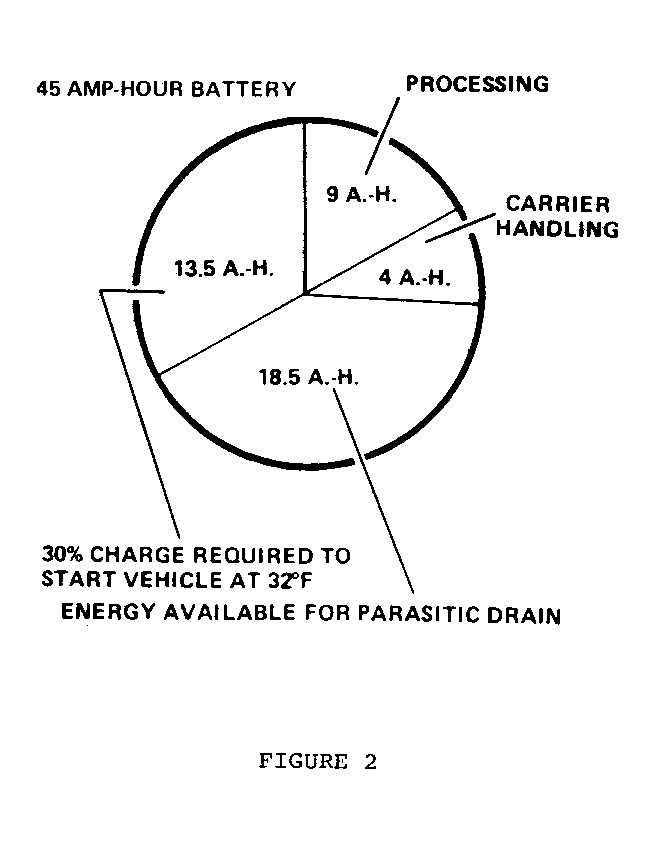

Fig 2: Graphic

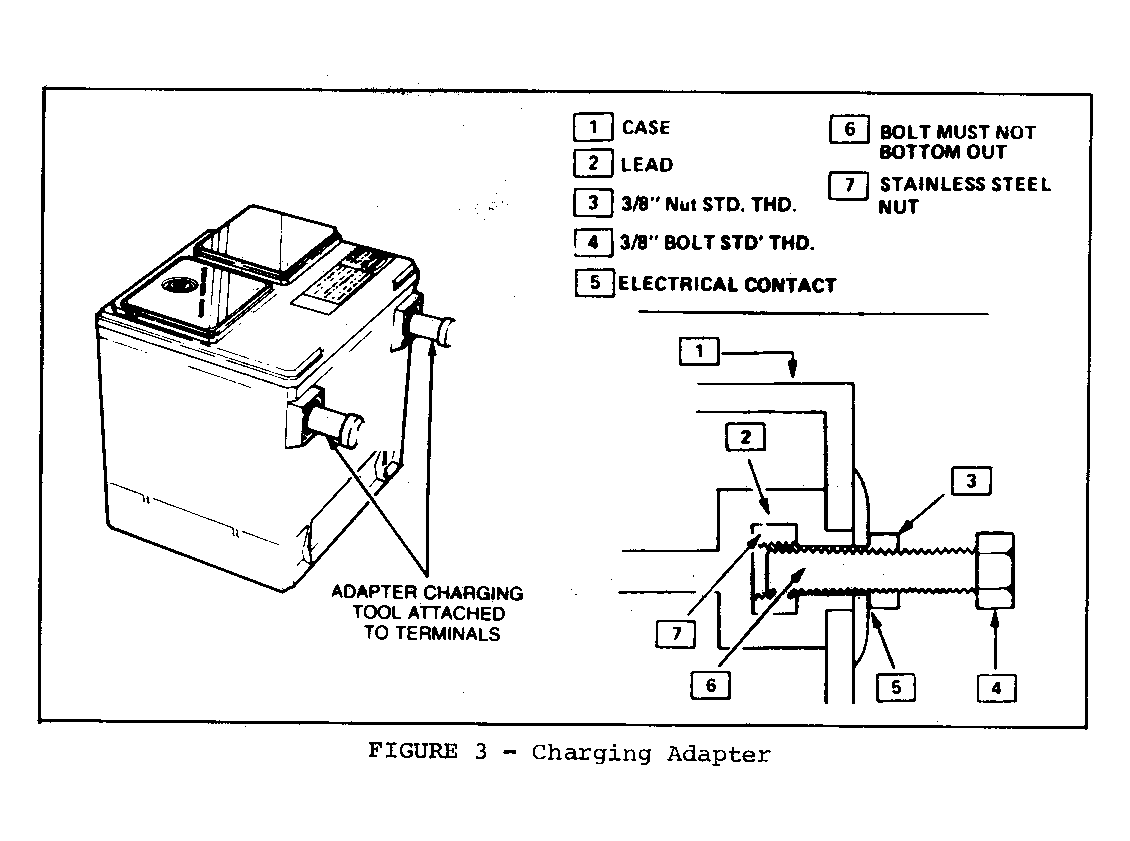

Fig 3: Graphic

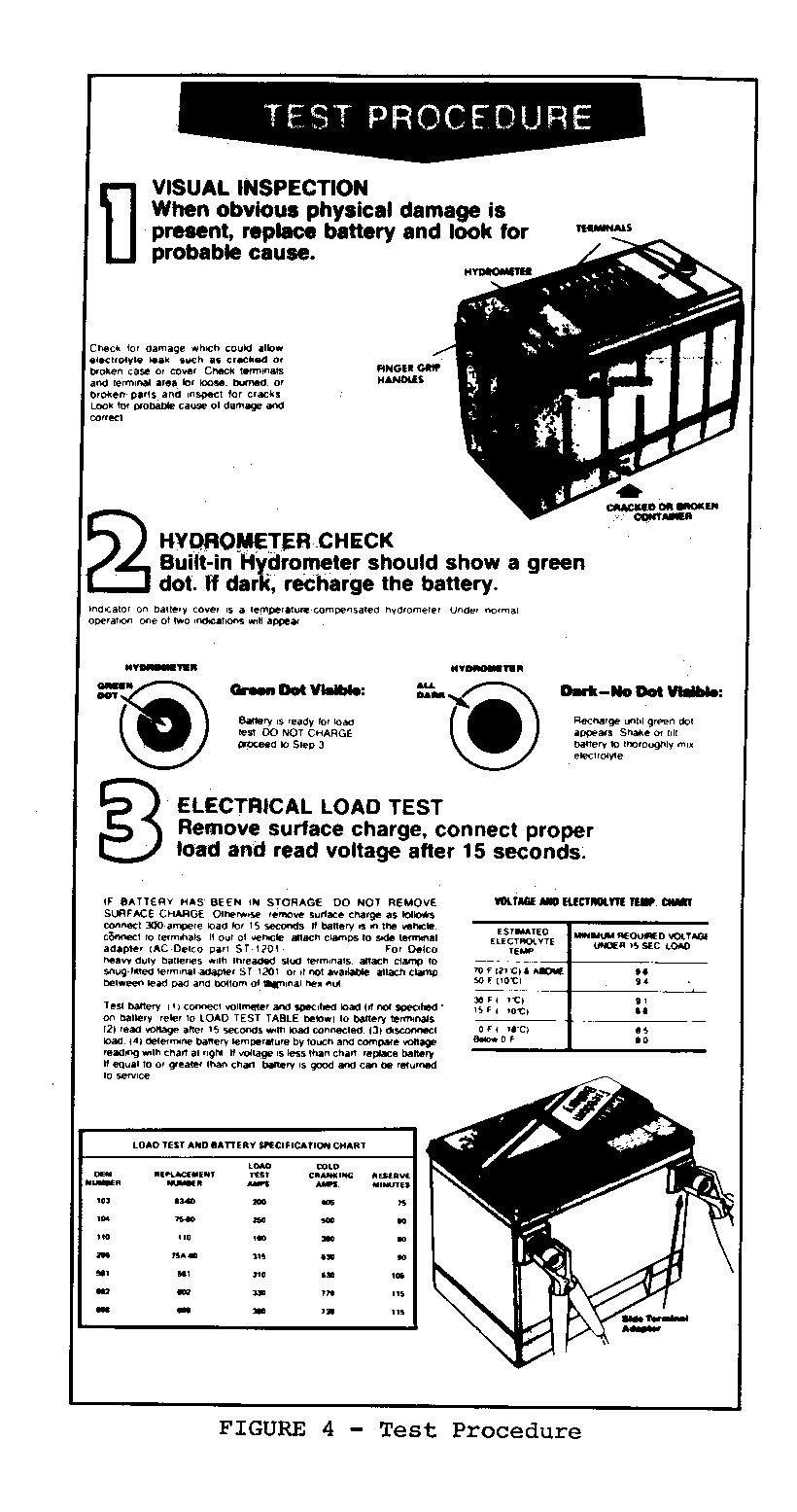

Fig 4: Graphic

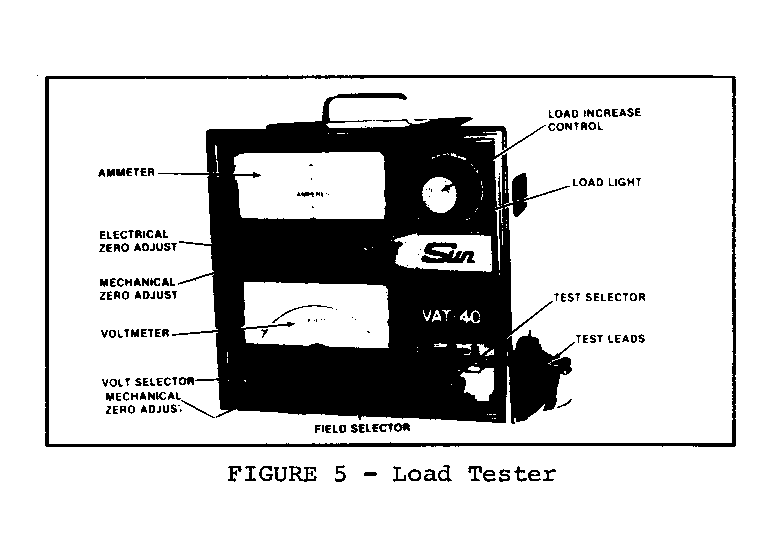

Fig 5: Graphic

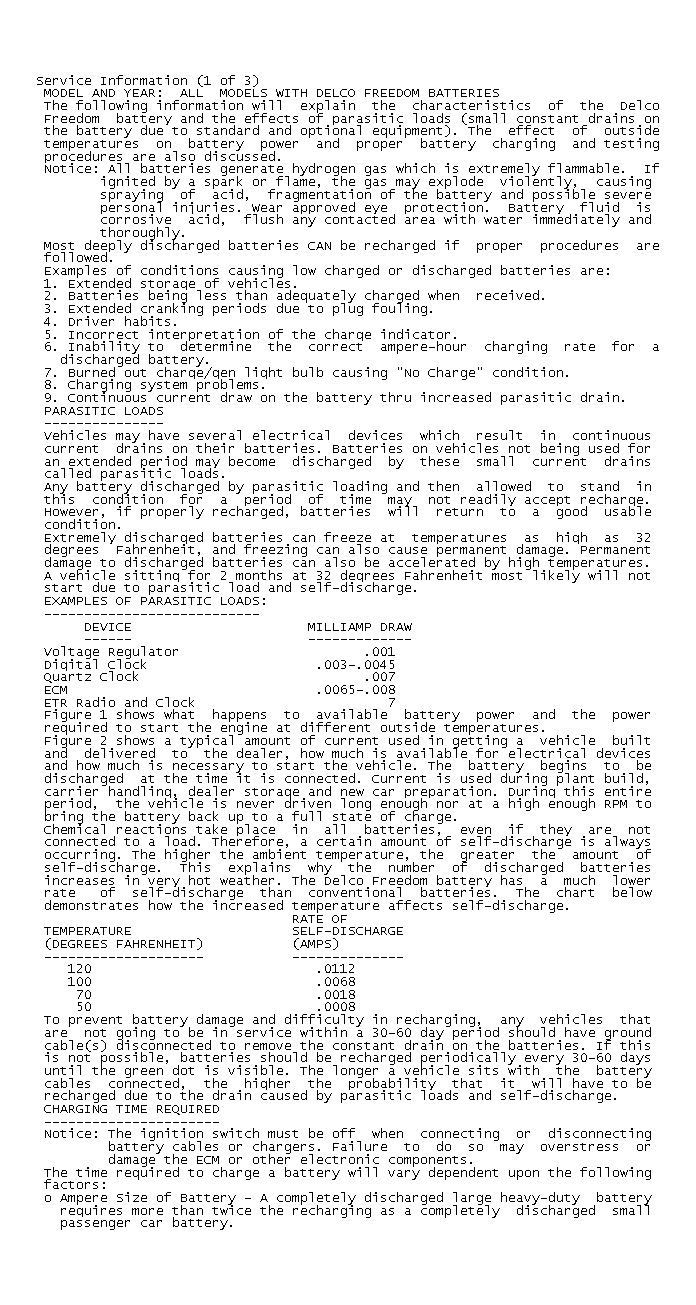

Fig 6: Service Information (1 of 3)

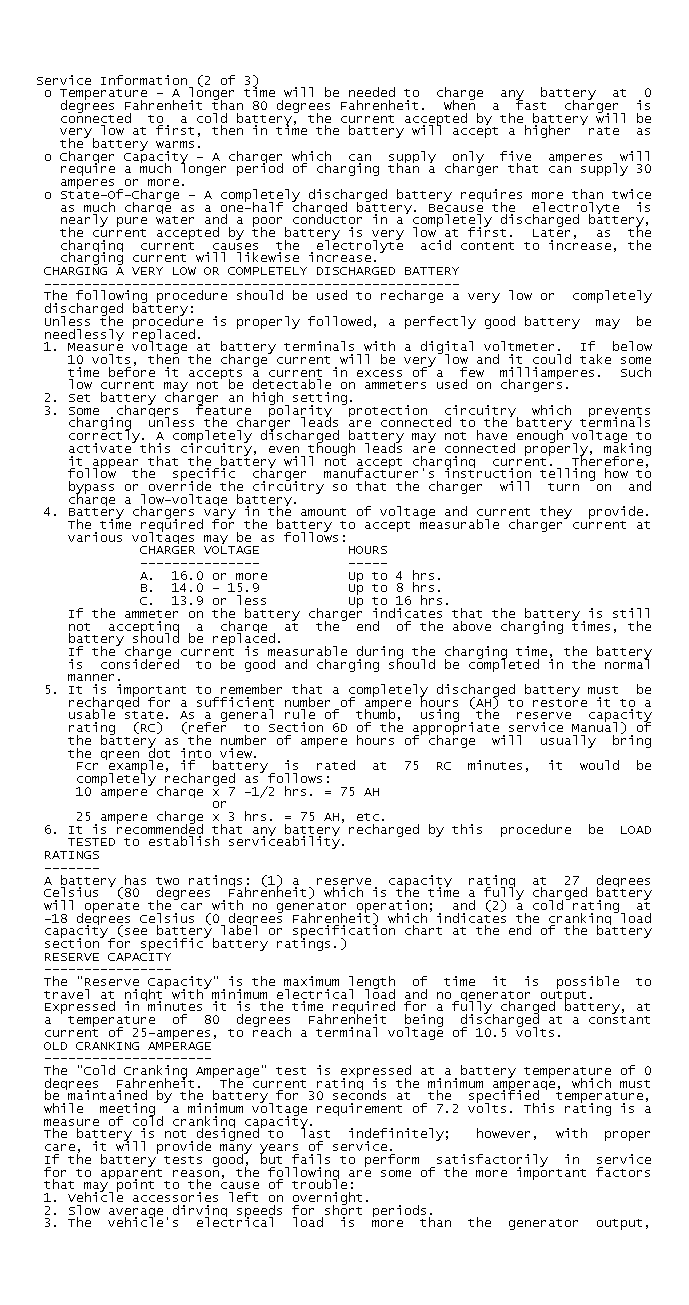

Fig 7: Service Information (2 of 3)

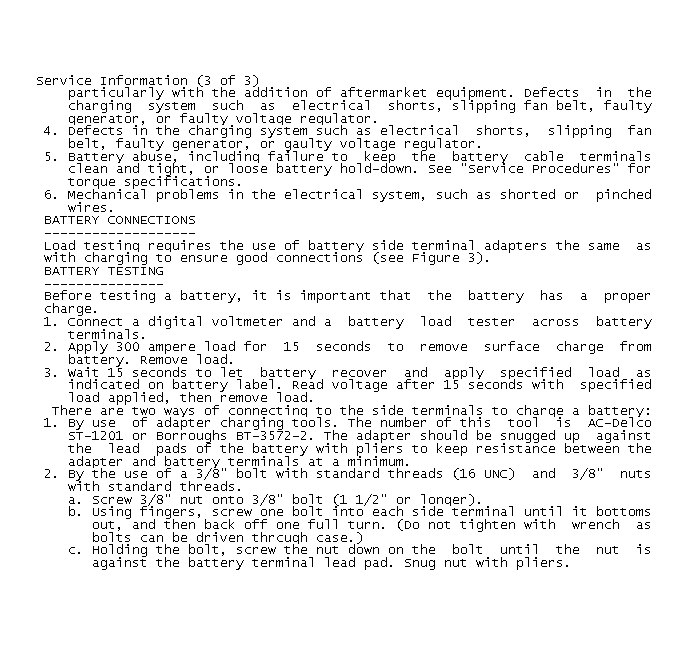

Fig 8: Service Information (3 of 3)
