EXPERTEC TSB (86-14)

Publication date: 1985-12-01
Reference number: 86-14

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-14, Date of Issue: 12/01/85

Model(s): 1986 Chevrolet Shop Manual

Bulletin No.: Chevrolet 86-14

Date: 12/01/1985

1986-SHOP MANUAL SECTION 6E-1 DRIVEABILITY AND EMISSIONS

TO: ALL CHEVROLET DEALERS

The following charts are corrected copies of charts which appear in the 1986 Chevrolet Shop Manual preliminary edition.

Disregard page numbers published on these sheets, as they appear in different locations in different manuals which makes renumbering impractical.

All attached material will appear in the final edition of the 1986 Shop Manual.

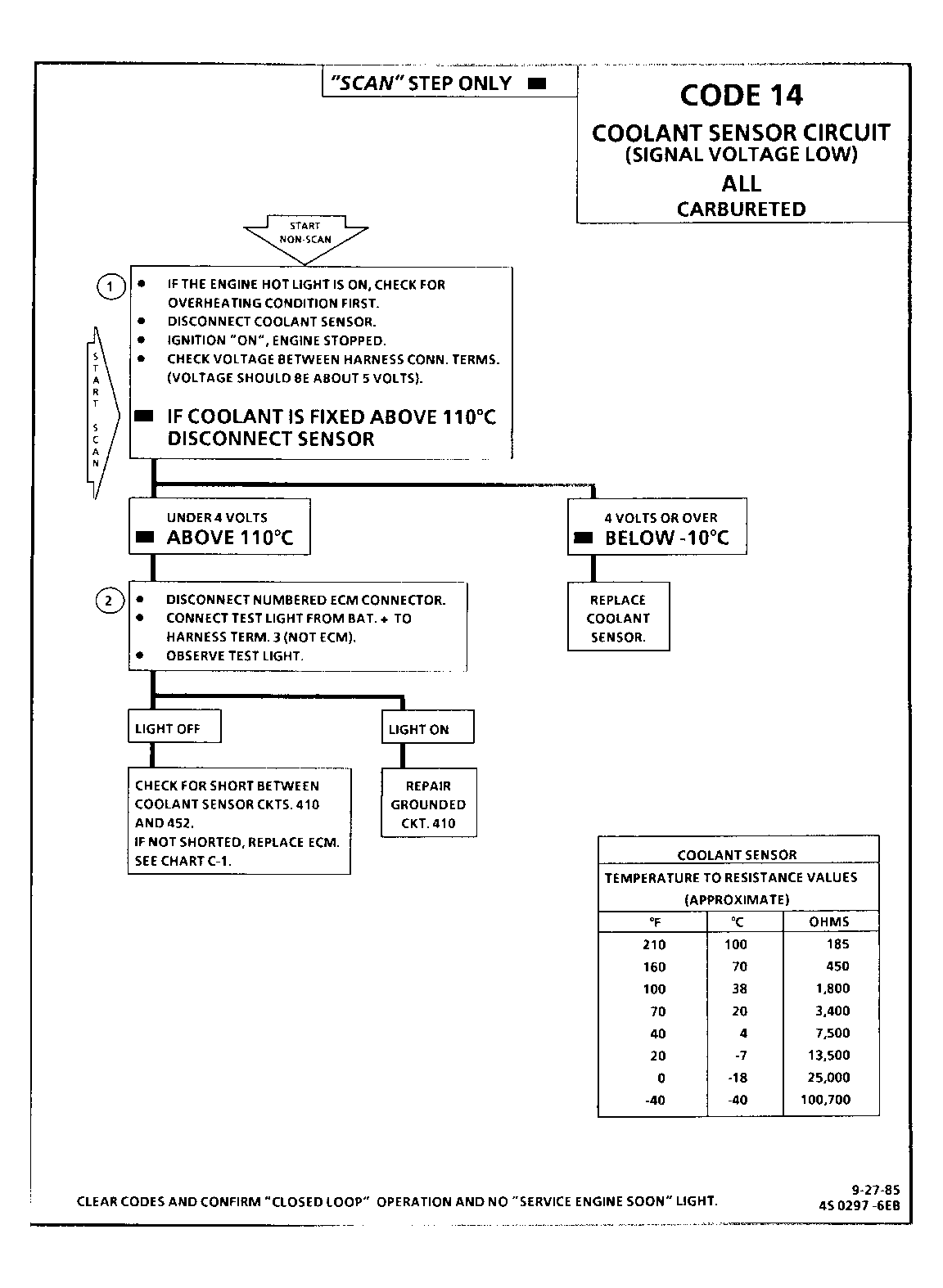

Fig 1: Graphic

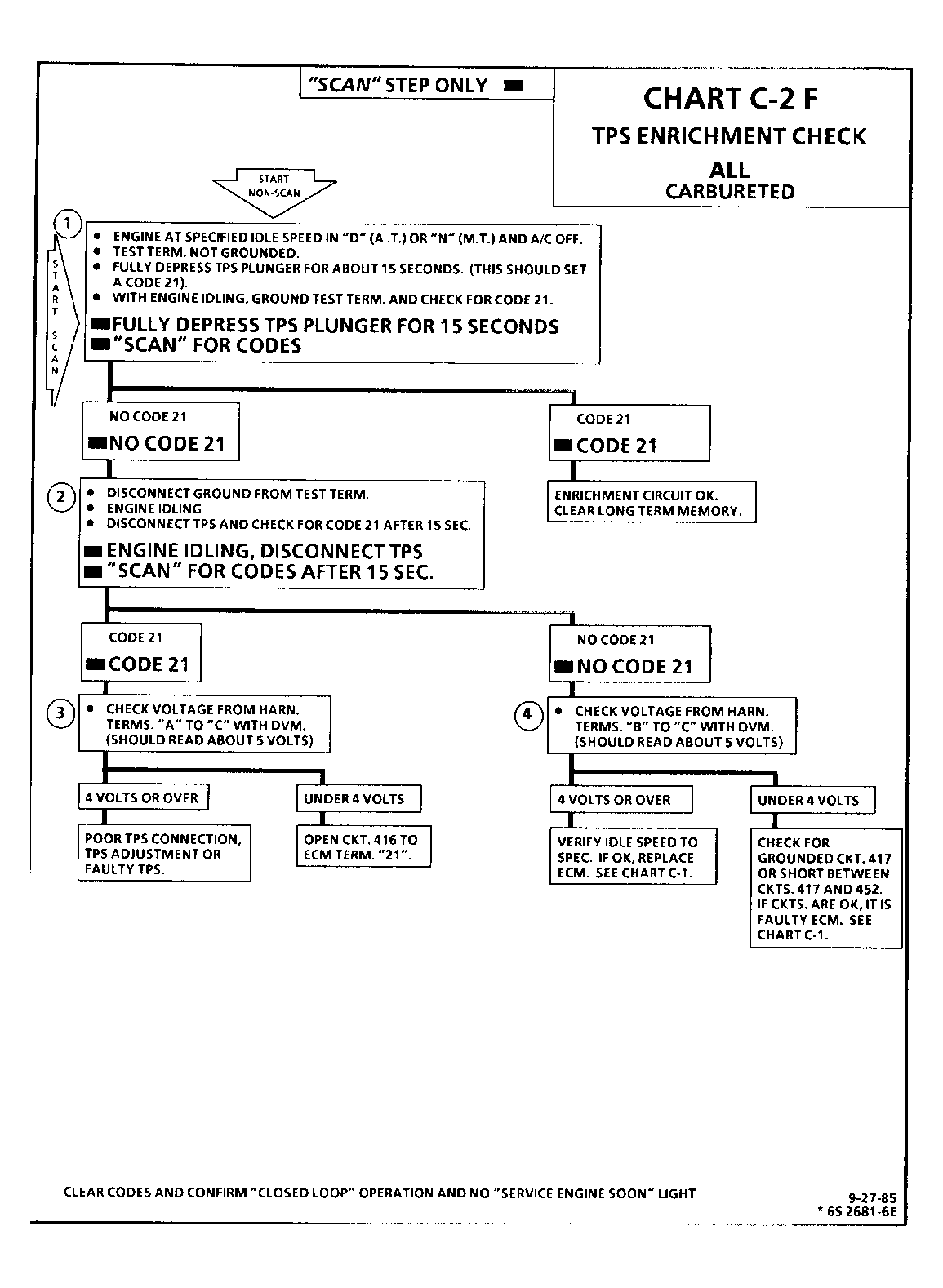

Fig 2: Graphic

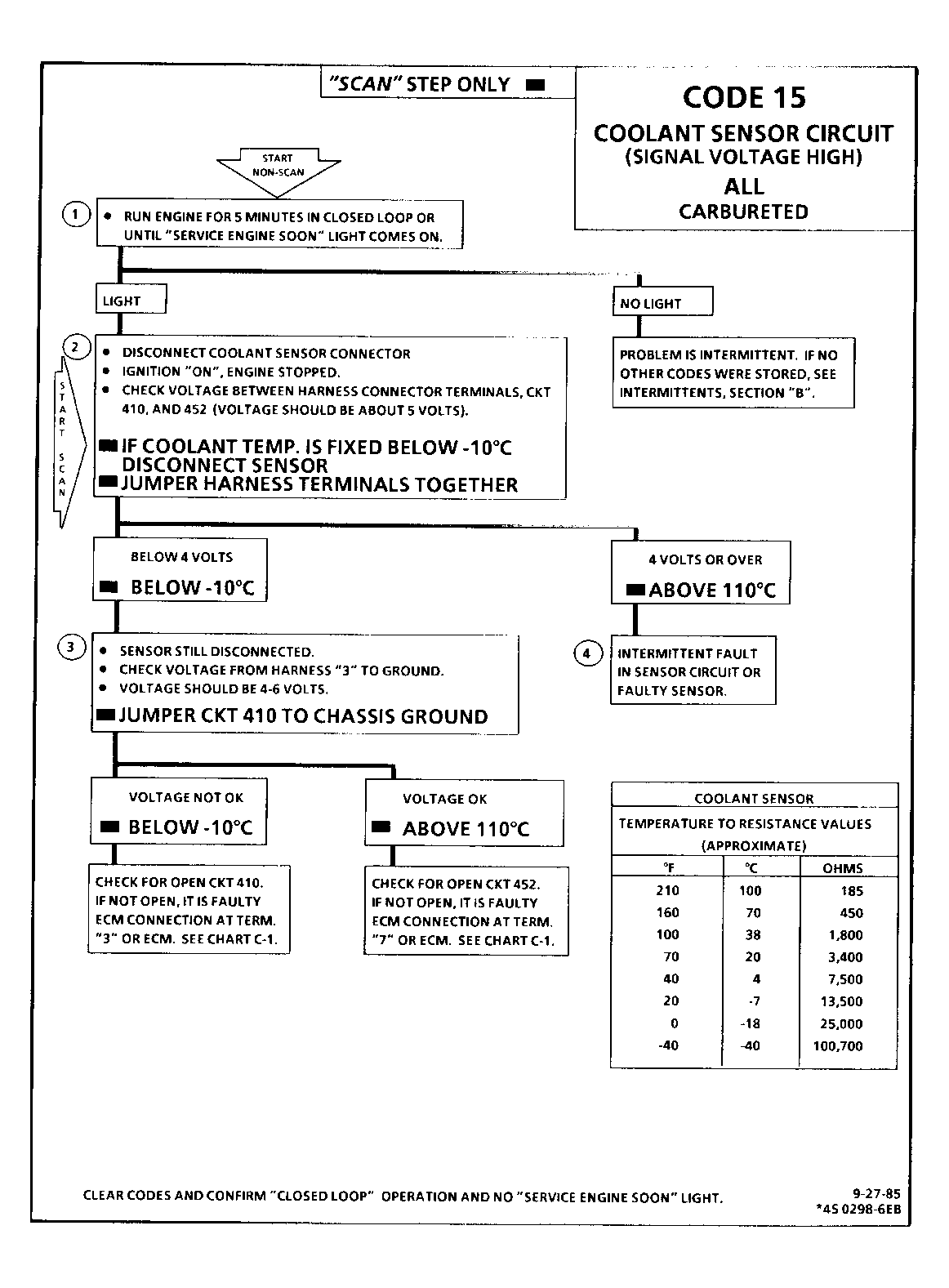

Fig 3: Graphic

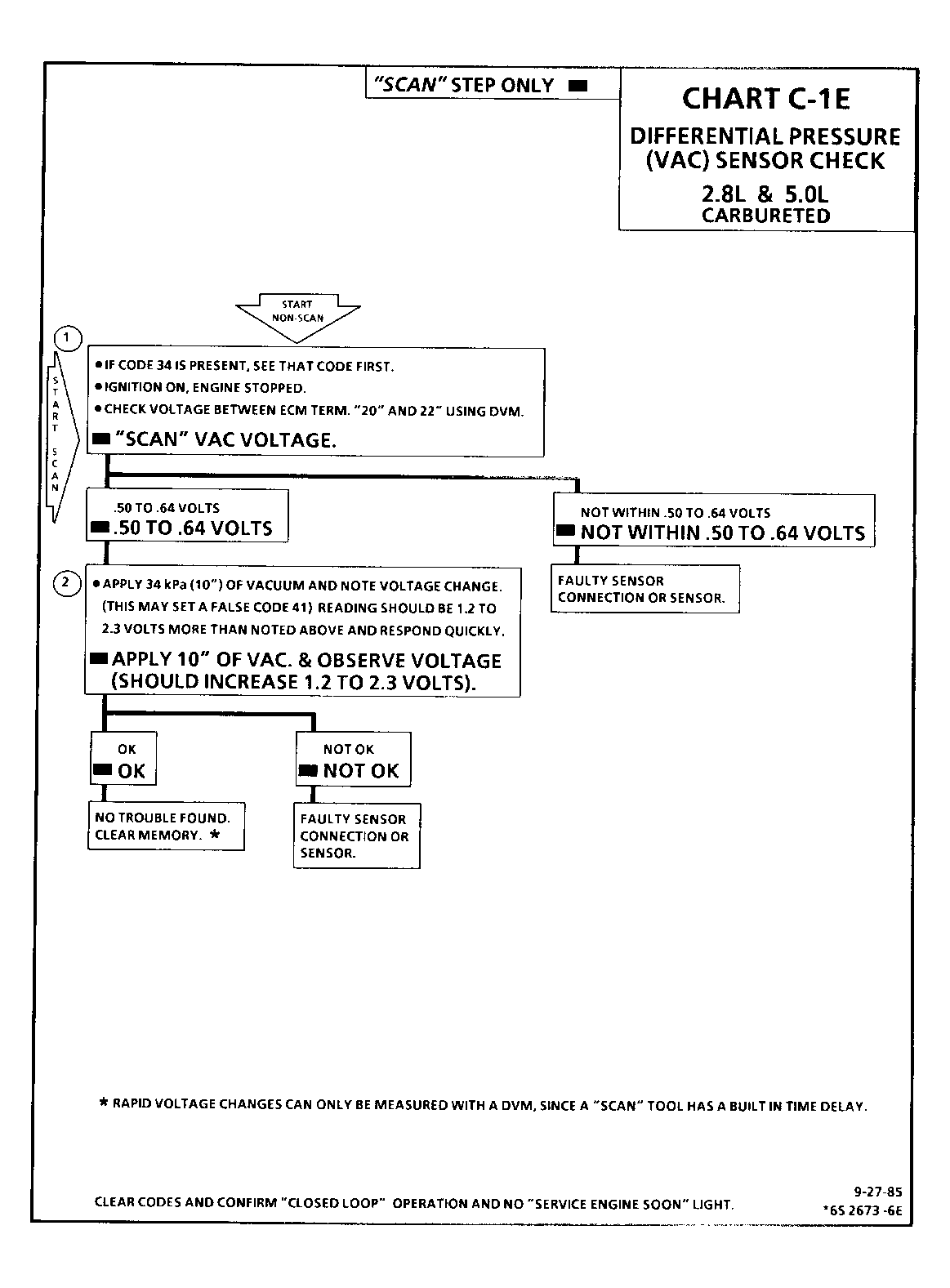

Fig 4: Graphic

Fig 5: Graphic
