EXPERTEC TSB (86-9)

Publication date: 1985-08-02
Reference number: 86-9

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-9, Date of Issue: 08/02/85

08/02/1985

Chevrolet 86-9

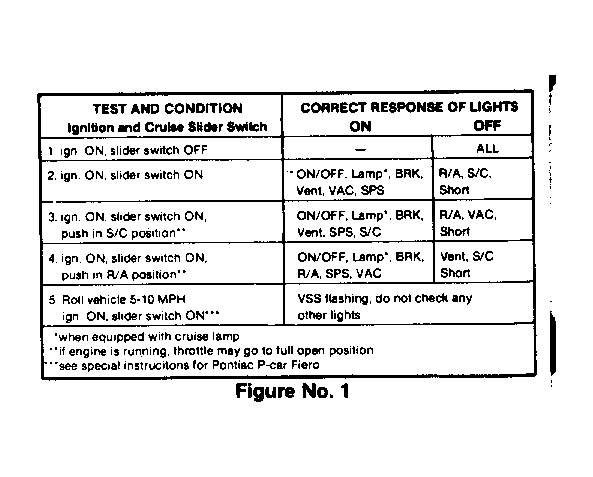

Fig 1: Graphic

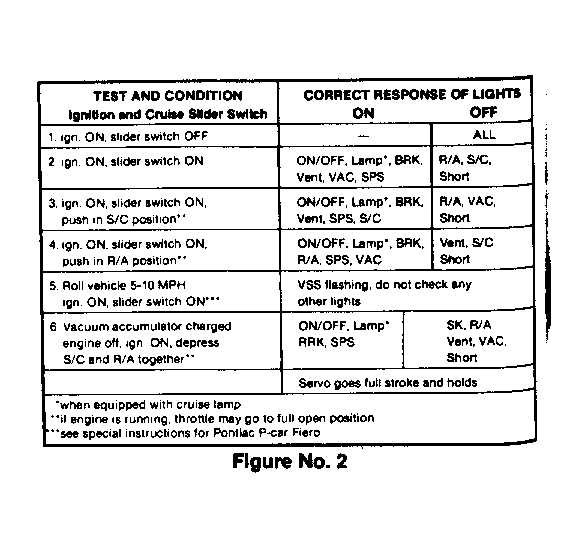

Fig 2: Graphic

MODIFICATION OF DIAGNOSTIC ROUTINE ON THE CLARK BROS., KENT-MOORE, AND SPECMO CRUISE CONTROL "QUICK CHECKERS"

Model and Year: ALL CHEVROLET PASSENGER AND LIGHT

-------------- DUTY TRUCKS WITH CRUISE CONTROL

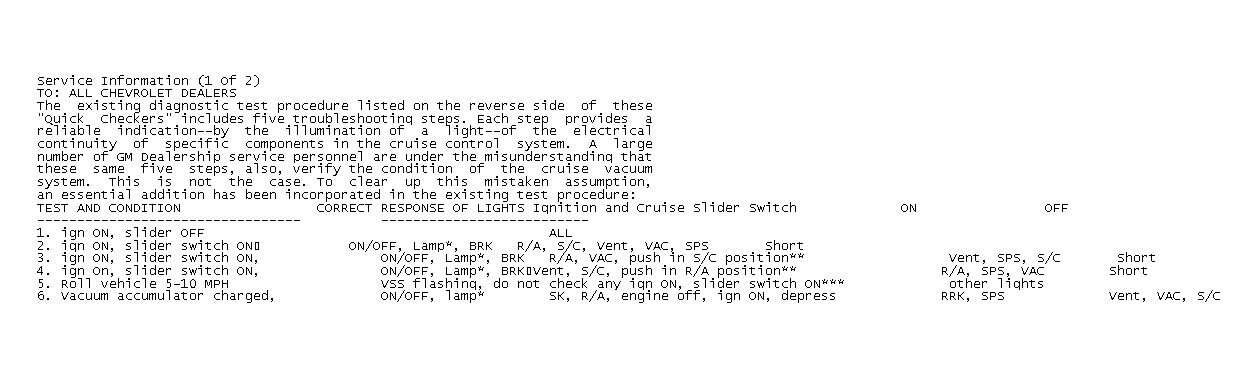

Fig 3: Service Information (1 Of 2)

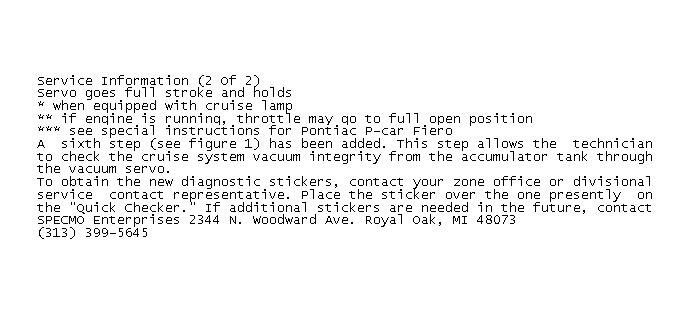

Fig 4: Service Information (2 Of 2)
