EXPERTEC TSB (86-157)

Publication date: 1986-08-20
Reference number: 86-157

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-157, Date of Issue: 08/20/86

REVISION-DIAGNOSTIC ROUTING ON - SPECMO C/C QUICK CHECKERS

08/20/1986

Chevrolet 86-157

BULLETIN ILLUSTRATION LIST

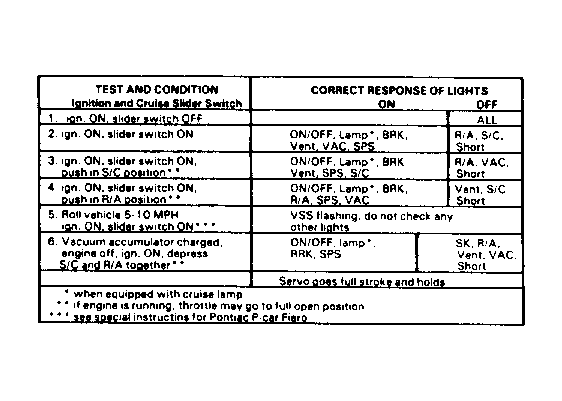

Fig 1: Graphic

GE00W003177

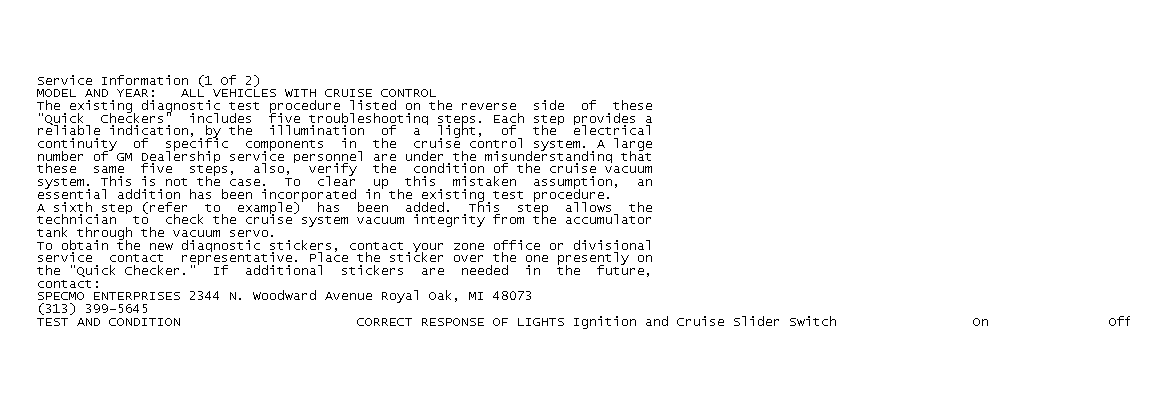

Fig 2: Service Information (1 Of 2)

GB0023530

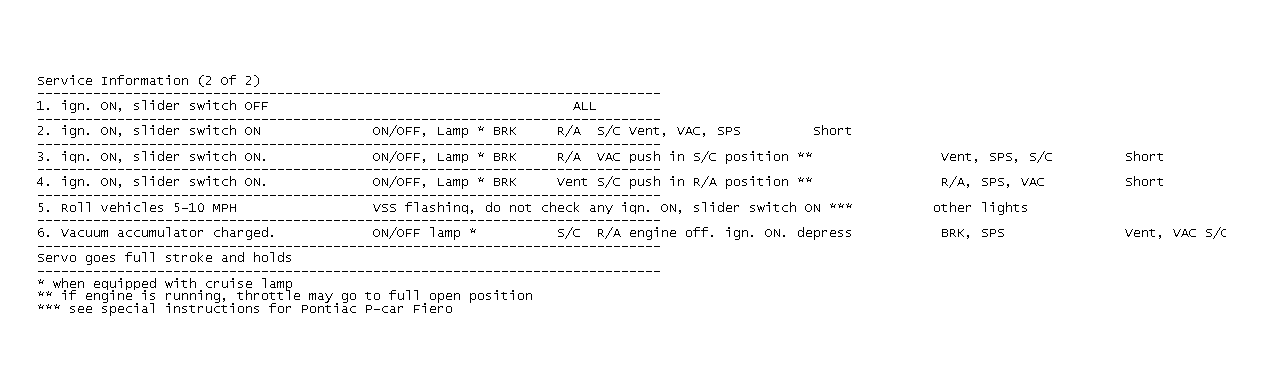

Fig 3: Service Information (2 Of 2)

GB0023531
