Fuse & Circuit Identification

1 - 7.5 Amp - Radio/Stereo Cassette
2 - 15 Amp - Stoplights
3 - 15 Amp - Instrument Lights, Parking Lights, Radio, Tail Lights
4 - 7.5 Amp - Interior Lights, Open Door Warning Light
5 - 7.5 Amp - Charging System Warning Light
6 - 15 Amp - Cigarette Lighter
7 - Open
8 - 20 Amp - Windshield Wipers, Windshield Washer
9 - 7.5 Amp - Turn Signal Lights, Turn Signal Indicator Lights
10 - 7.5 Amp - Back-Up Lights, Temperature Gauge, Fuel Gauge, Heater Main Relay, Cruise Control System, Seat Belt Reminder Light/Buzzer, Warning Lights,
11 - 20 Amp - Charging System Warning Light, Emission Control System
12 - 15 Amp - Left Headlights
13 - 15 Amp - Right Headlights
14 - 10 Amp - Horn, Emergency Flashers
15 - 10 Amp - Generator with 1C Regulator (1G Terminal), Emission Control System, Fuel-Cut Solenoid, Charging System Warning Light Relay
16 - 10 Amp - Radio/Stereo Cassette
17 - 10 Amp - Air Conditioner
18 - 30 Amp (Circuit Breaker) - Rear Window Defogger, Rear Window Defogger Indicator Light
19 - 30 Amp (Circuit Breaker) - Heater Blower Motor
20 - 14 Amp (Circuit Breaker) - Power Door Locks
21 - 30 Amp (Circuit Breaker) - Power Windows

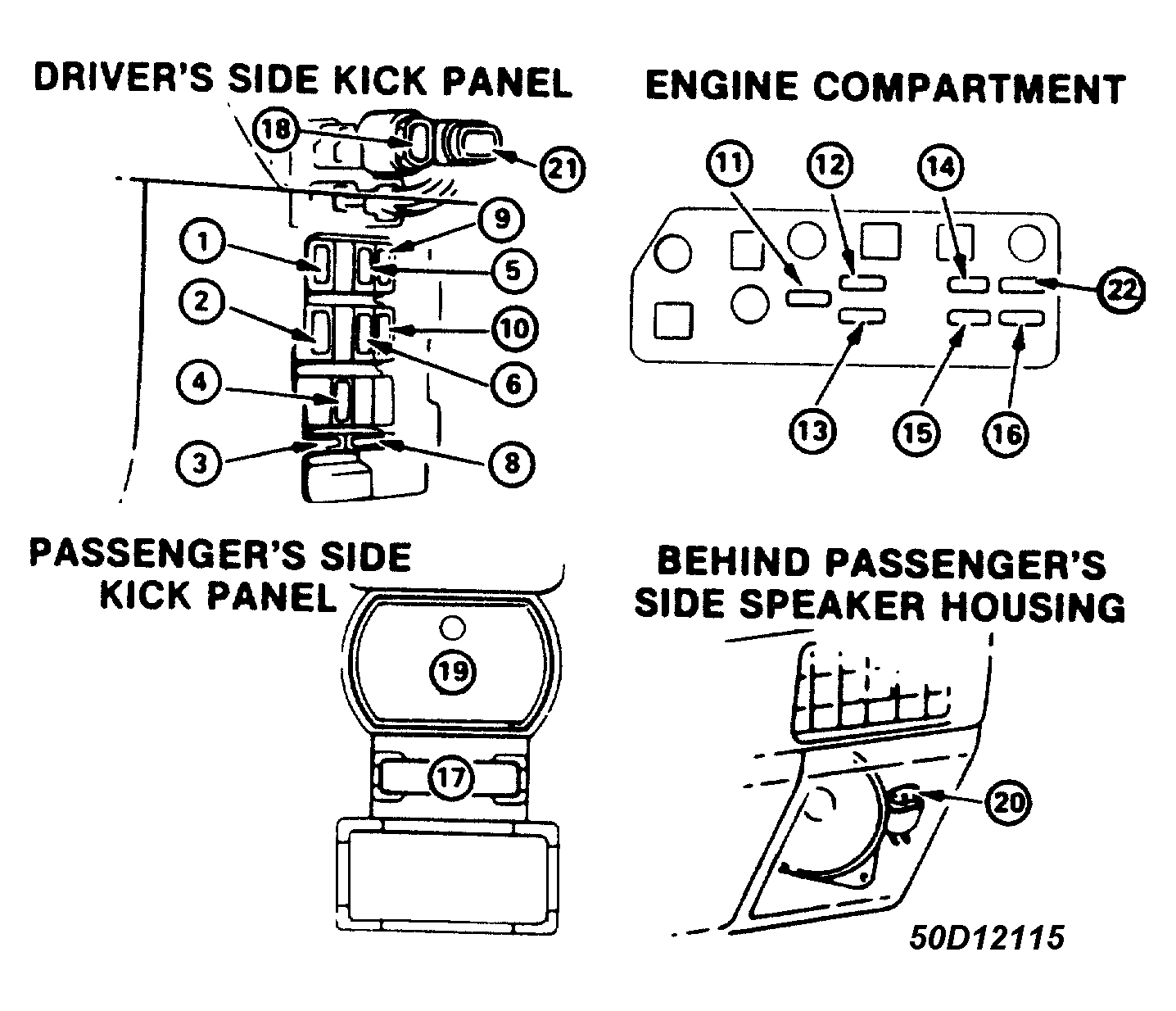

Fig 1: Fuse Panel Identification (1988)
Courtesy of GENERAL MOTORS CORP.
1 - 7.5 Amp - Radio/Stereo Cassette
2 - 15 Amp - Stoplights
3 - 15 Amp - Instrument Lights, Parking Lights, Radio, Tail Lights
4 - 7.5 Amp - Interior Lights, Open Door Warning Light
5 - 7.5 Amp - Charging System Warning Light
6 - 15 Amp - Cigarette Lighter
7 - Open
8 - 20 Amp - Windshield Wipers, Windshield Washer
9 - 7.5 Amp - Turn Signal Lights, Turn Signal Indicator Lights
10 - 7.5 Amp - Back-Up Lights, Temperature Gauge, Fuel Gauge, Heater Main Relay, Cruise Control System, Seat Belt Reminder Light/Buzzer, Warning Lights, Electronically Controlled 4-Speed Automatic Transaxle
11 - 20 Amp - Charging System Warning Light, Emission Control System
12 - 15 Amp - Left Headlights
13 - 15 Amp - Right Headlights
14 - 10 Amp - Horn, Emergency Flashers
15 - 10 Amp - Generator with 1C Regulator (1G Terminal), Emission Control System, Fuel-Cut Solenoid, Charging System Warning Light Relay Electronically Controlled 4-Speed Automatic Transaxle
16 - 10 Amp - Radio/Stereo Cassette
17 - 10 Amp - Air Conditioner
18 - 30 Amp (Circuit Breaker) - Rear Window Defogger, Rear Window Defogger Indicator Light
19 - 30 Amp (Circuit Breaker) - Heater Blower Motor
20 - 14 Amp (Circuit Breaker) - Power Door Locks
21 - 30 Amp (Circuit Breaker) - Power Windows
22 - 15 Amp - Electronic Fuel Injection System (If Equipped)
