Section 3 (Drive Belt Routing): Inspection
WARNING: This page does not describe the selected car, but rather 83 other vehicles, including the 1987 Pontiac Sunbird, 1987 Pontiac Safari, 1987 Pontiac Grand Prix, 1987 Pontiac Grand Am, and 1987 Pontiac Firebird. However, it is still accessible from the selected car via links, so may be relevant.

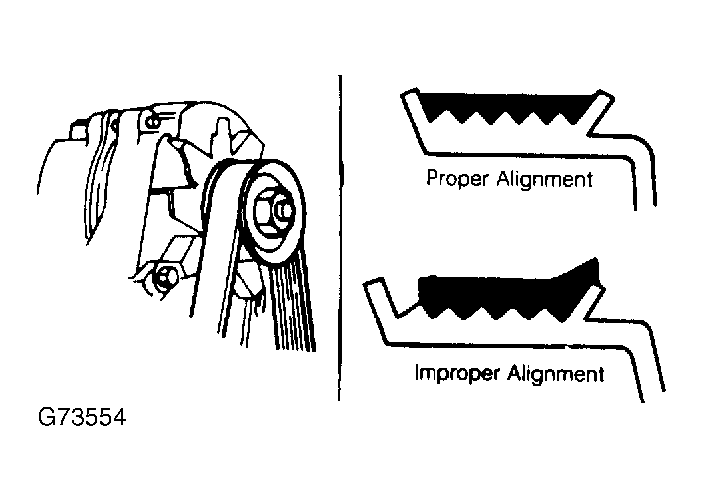

Check belt for fraying. If fraying is noticed, be sure both belt and tensioner are aligned properly. See Fig 1. If tensioner reaches limit of travel, belt is stretched and should be replaced. If a whining or grinding noise can be heard around tensioner or idler, check for possible bearing failure.
