Alternator & Regulator: Overhaul: Disassembly

Remove 3 end cover retaining nuts. Remove end cover. Remove 5 screws retaining brush holder and regulator. Remove 4 screws retaining rectifier holder and rubber insulators. Remove the pulley using Holding Tool (J-35452) and a breaker bar, by turning the socket clockwise. See Fig 2.

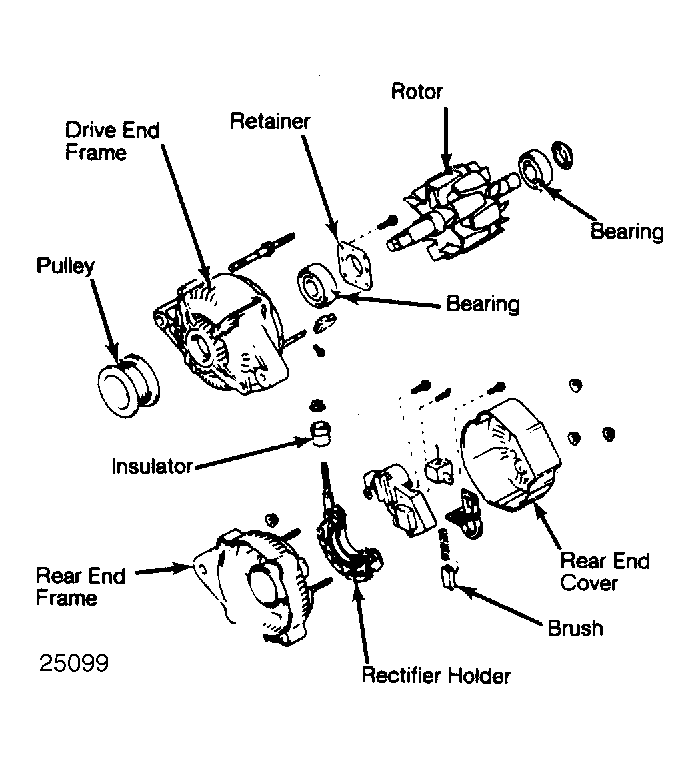

Fig 1: Exploded View of Nippondenso Alternator

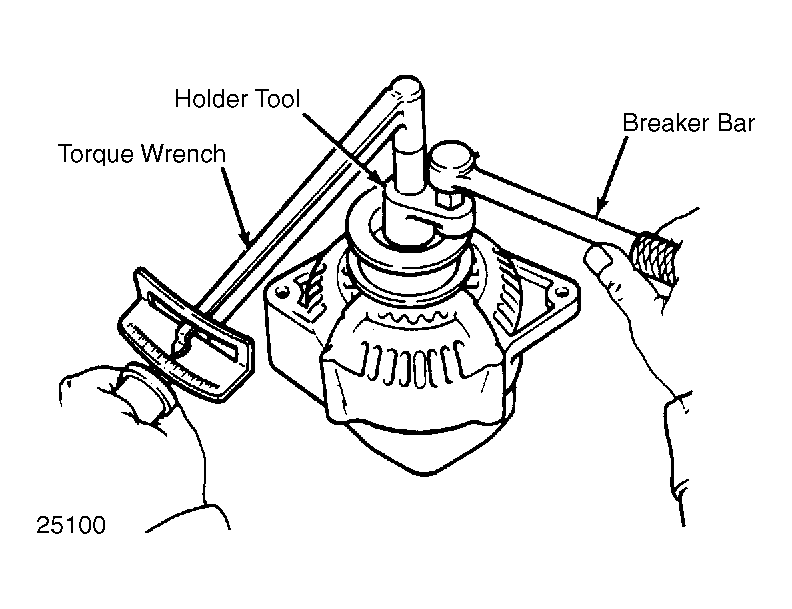

Fig 2: Removing Pulley
