Chart C7 - EGR Check
Chart C7 - EGR Check

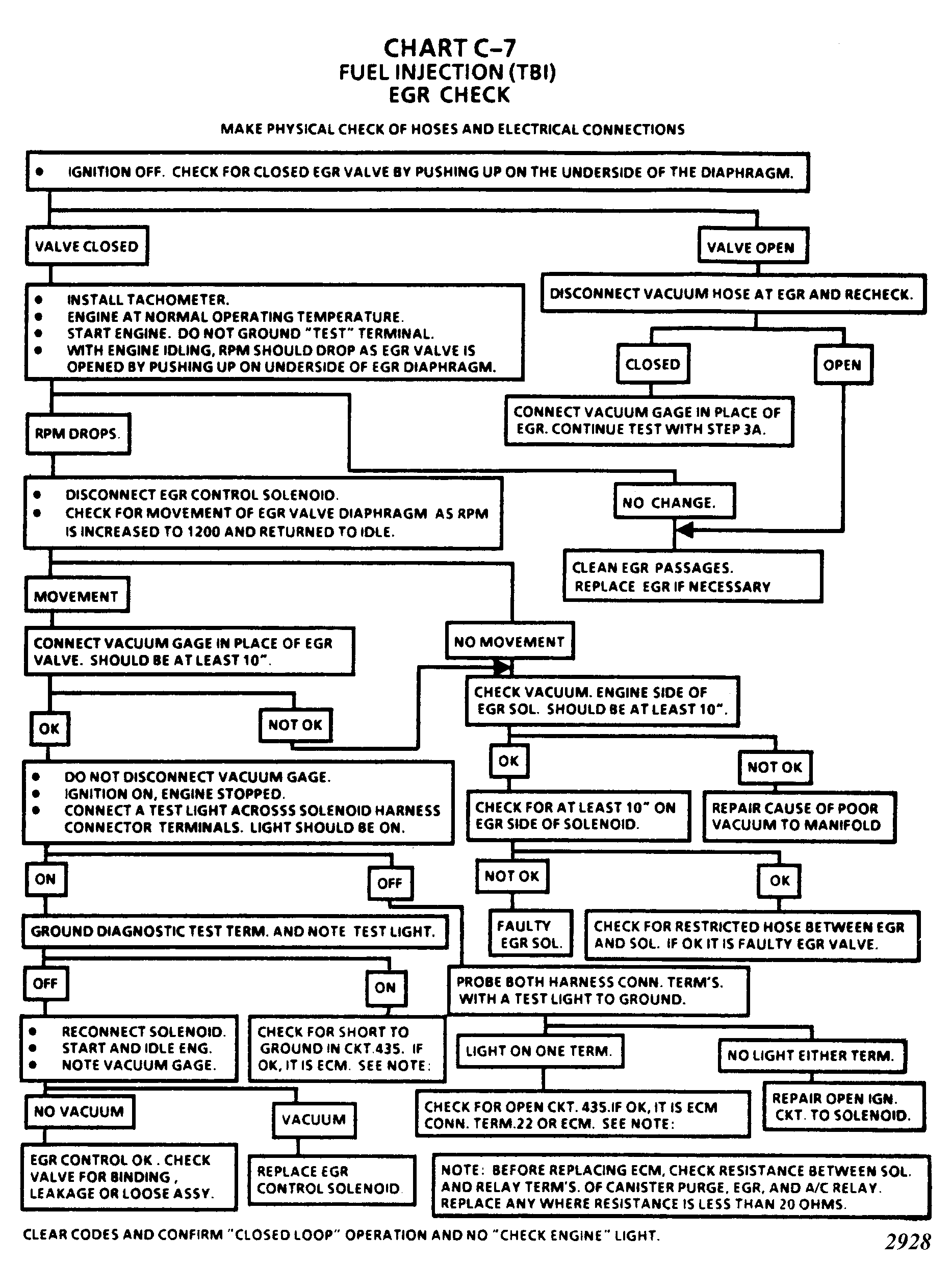

Fig 1: Flow Chart C7, EGR Check
Fig 2: Flow Chart C7, EGR Check (1 Of 2)

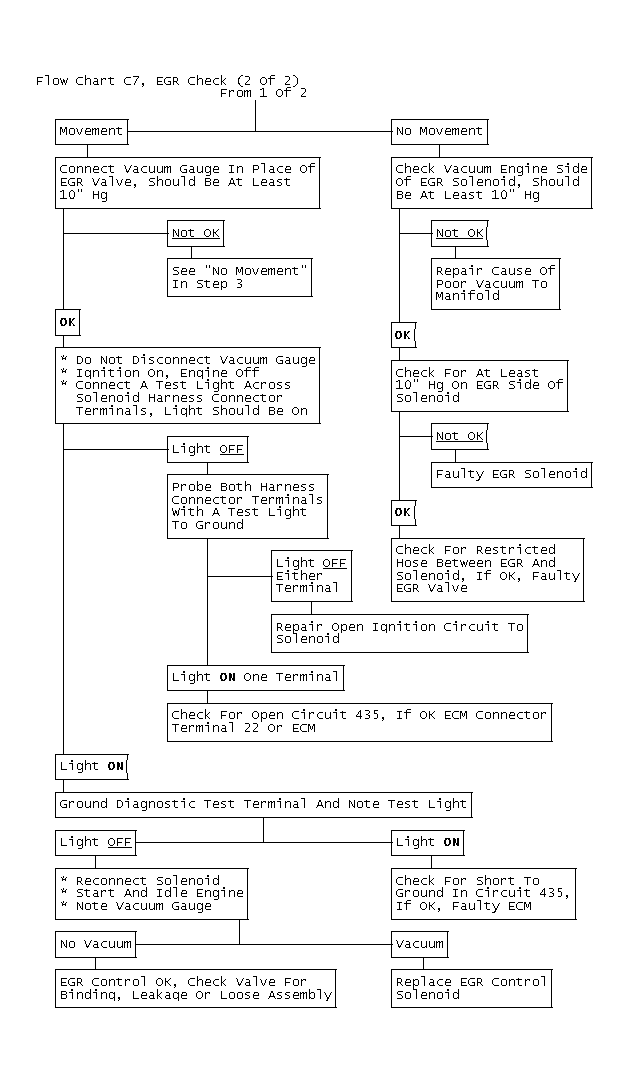

Fig 3: Flow Chart C7, EGR Check (2 Of 2)
