Chart C1D - Map Output Check
Chart C1D - Map Output Check

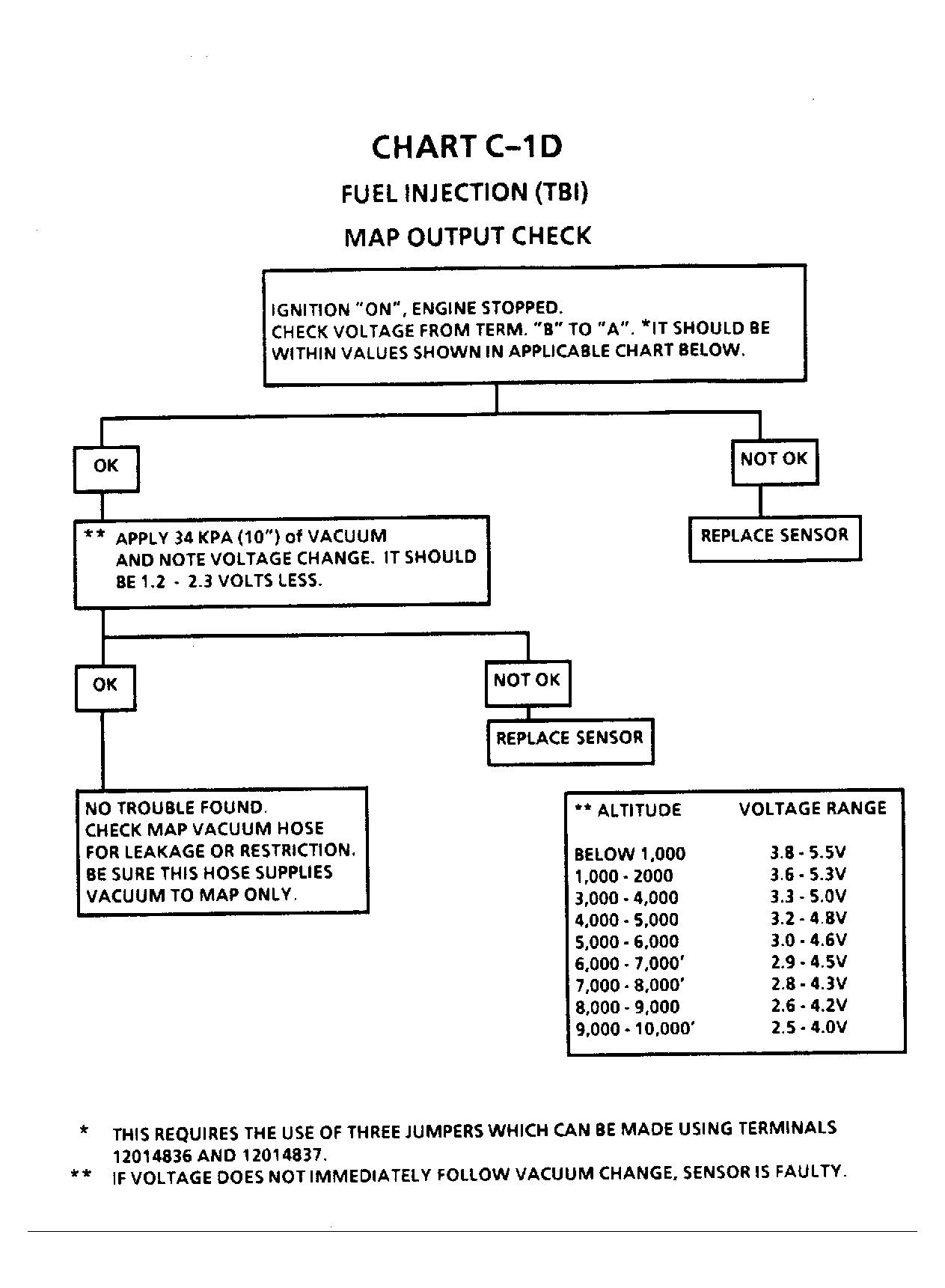

Fig 1: Flow Chart C1D, MAP Output Check
Fig 2: Flow Chart C1D, MAP Output Check
