G10/20 Series Alignment Specifications
G10/20 SERIES ALIGNMENT SPECIFICATIONS
| Application |
Specification |

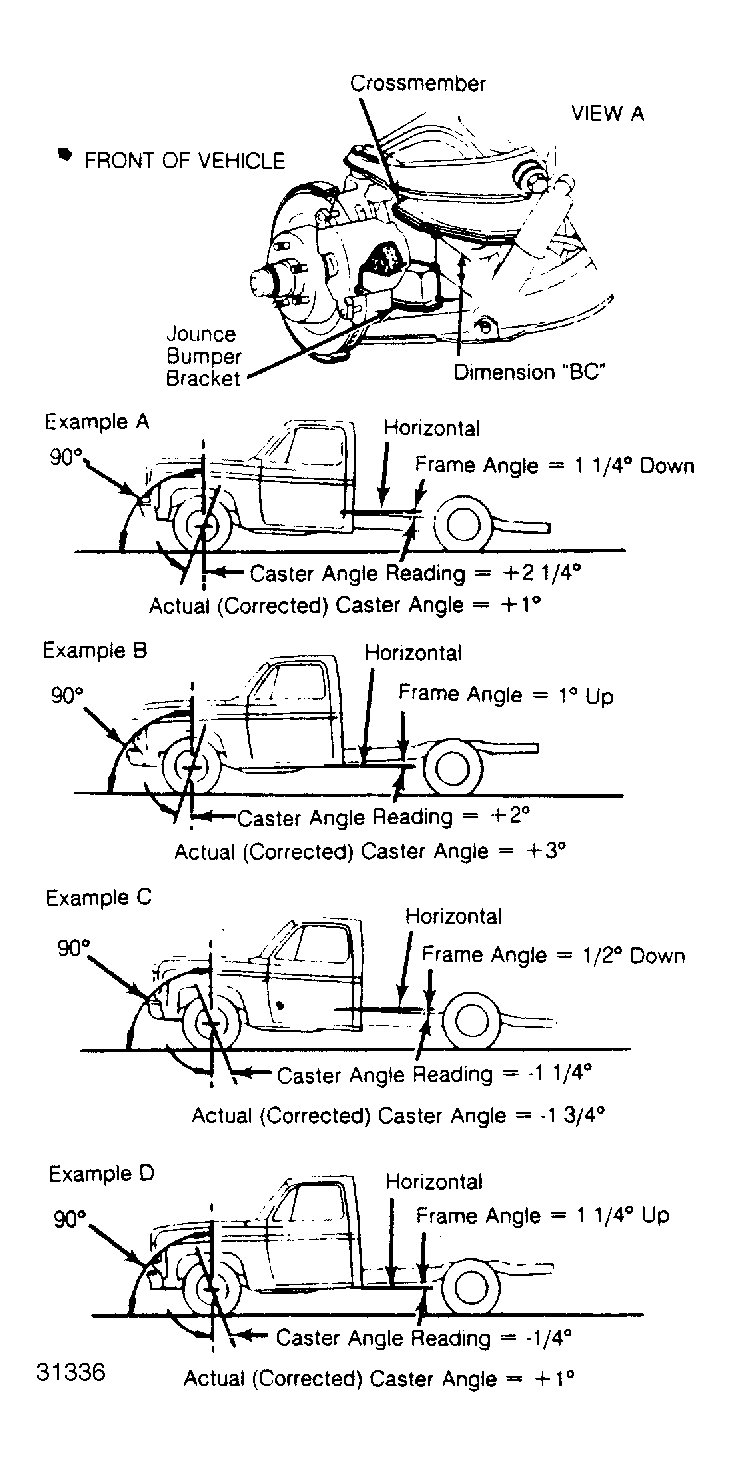

| Axle Gap (In Inches) |
| 1.50 |
3.417° Caster |
| 1.62 |
3.317° Caster |
| 1.75 |
3.217° Caster |
| 1.88 |
3.100° Caster |
| 2.00 |
3.000° Caster |
| 2.12 |
2.950° Caster |
| 2.25 |
2.850° Caster |
| 2.38 |
2.750° Caster |
| 2.50 |
2.667° Caster |
| 2.62 |
2.567° Caster |
| 2.75 |
2.480° Caster |
| 2.88 |
2.400° Caster |
| 3.00 |
2.330° Caster |
| 3.12 |
2.317° Caster |
| 3.25 |
2.150° Caster |
| 3.38 |
2.066° Caster |
| 3.50 |
2.000° Caster |
| 3.62 |
1.880° Caster |
| 3.75 |
1.800° Caster |
| 3.88 |
1.730° Caster |
| 4.00 |
1.667° Caster |
| 4.12 |
1.600° Caster |
| 4.25 |
1.530° Caster |
| 4.38 |
1.467° Caster |
| 4.50 |
1.400° Caster |
| Camber |
0.5° |
| Toe-In (In Inches) |
3/16" |
