Home >> Chevrolet >> 1985 >> Hi-Cube 5.7 M, 400/M40 >> Repair and Diagnosis >> Engine Performance >> System >> 4.3L/5.0L/5.7L Tests W/Codes >> Map Output Check

Map Output Check

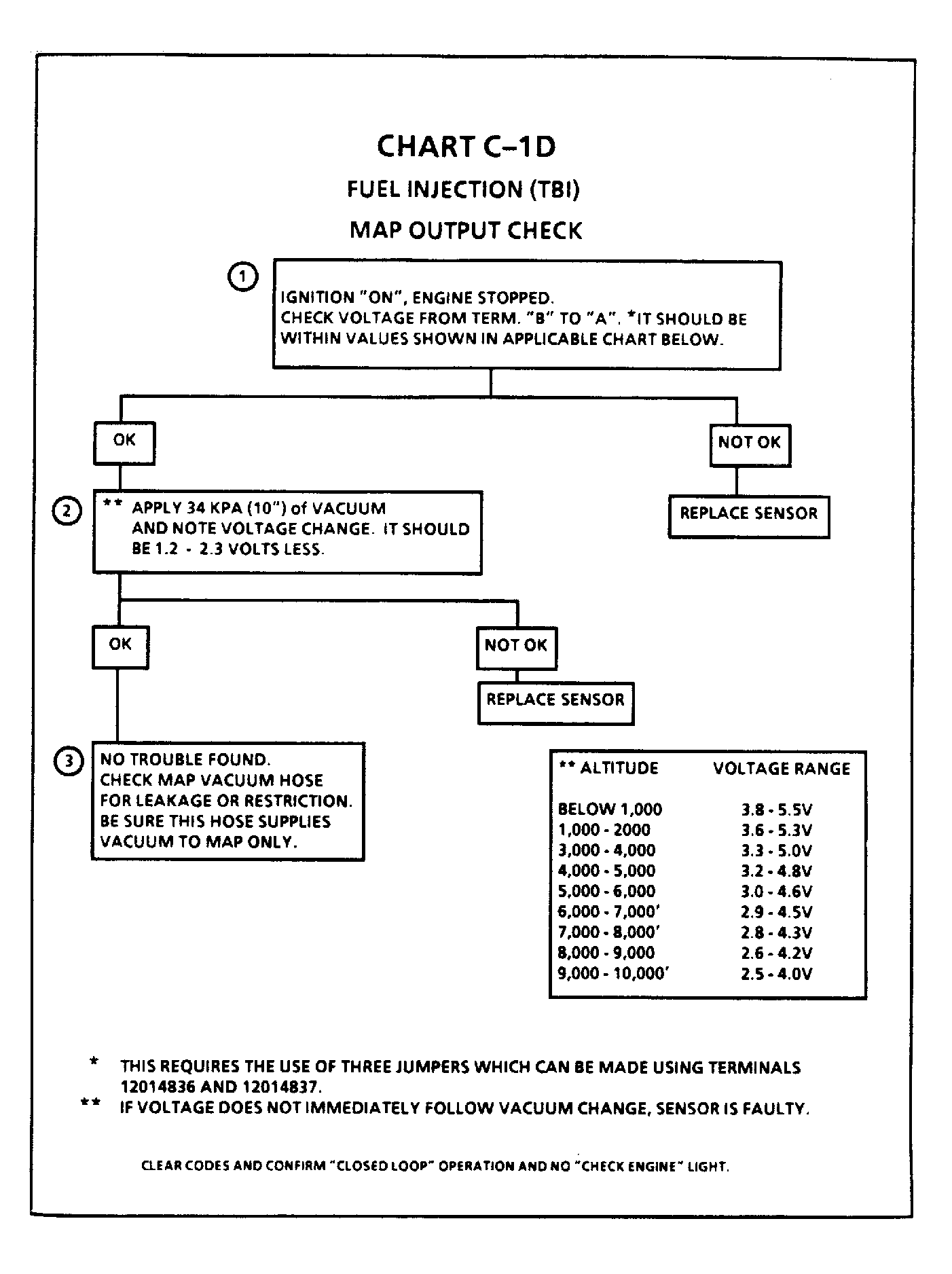

Fig 1: MAP Output Check

G6518
