Chart C3 - Canister Purge Valve Check

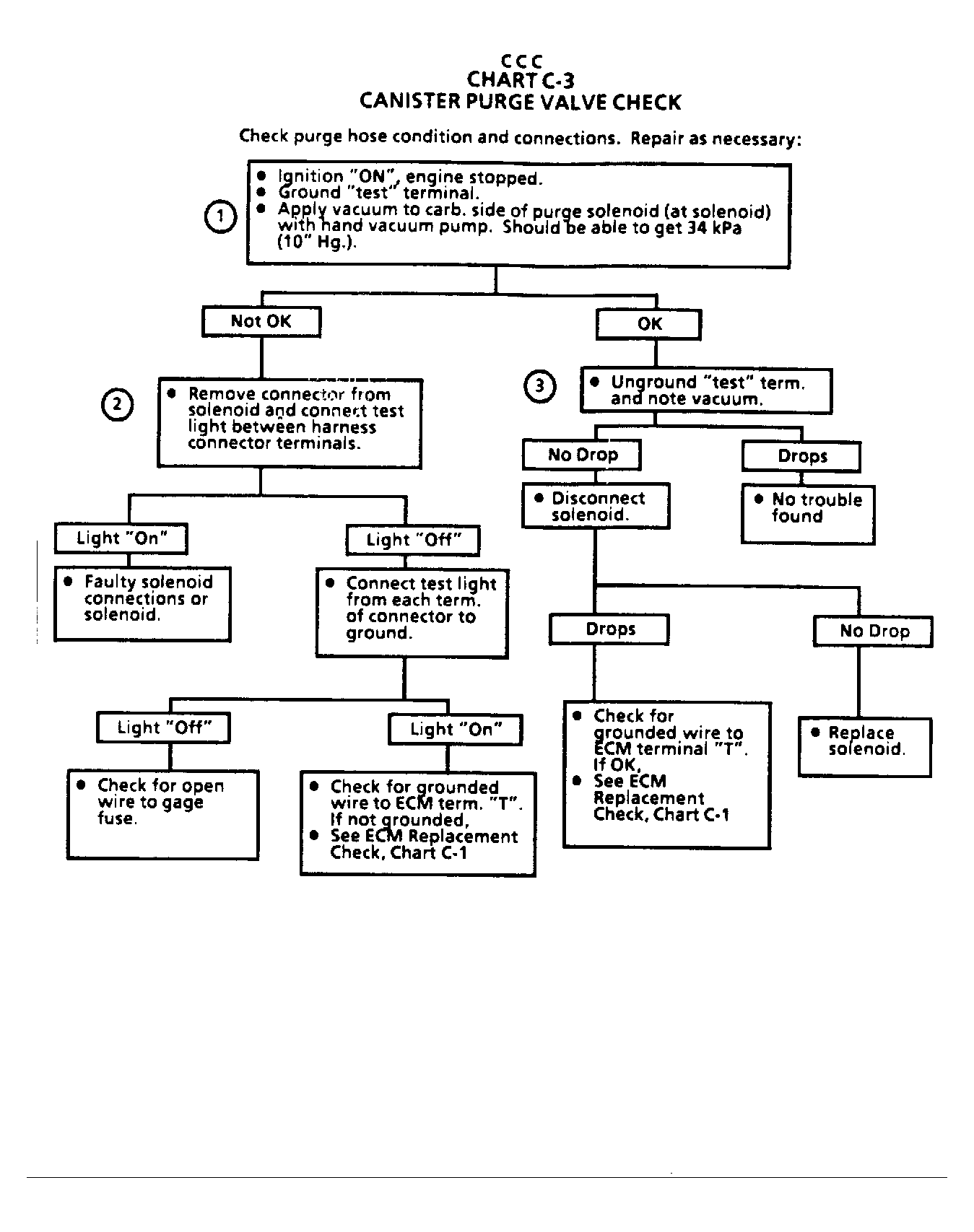

Fig 1: Flow Chart C3 - Canister Purge Valve Check
G6507

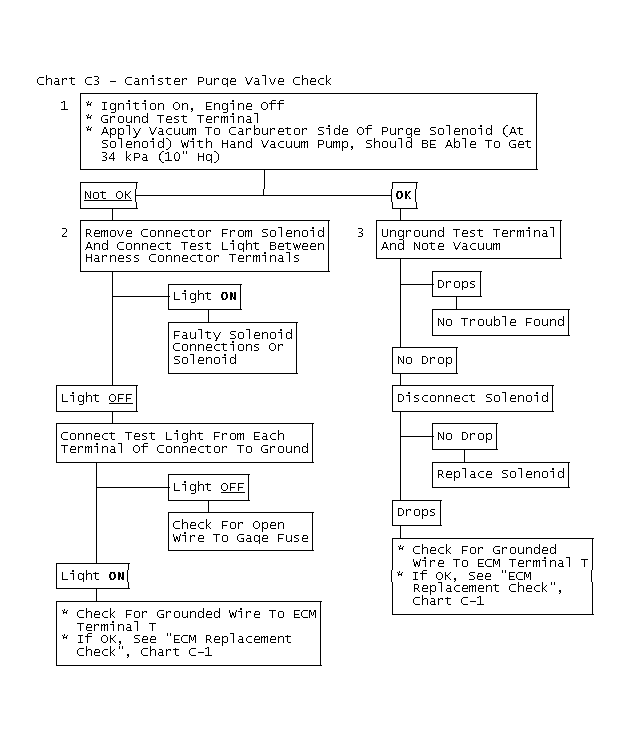

Fig 2: Flow Chart C3 - Canister Purge Valve Check
GB0048273
