Proper adapters must contact vehicle in areas shown in illustrations. See Fig 1 through Fig 4
. Adapters must be positioned to distribute load and support vehicle in a stable manner. DO NOT allow lift pads to contact exhaust system components.

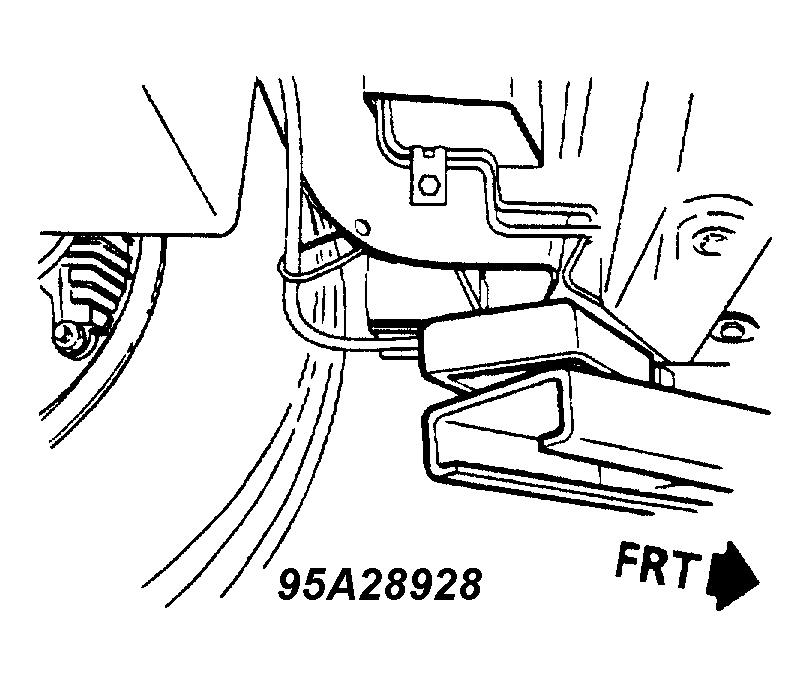

Fig 1: Using Frame Contact Hoist Rearward of Left Front Wheel
Courtesy of GENERAL MOTORS CORP.

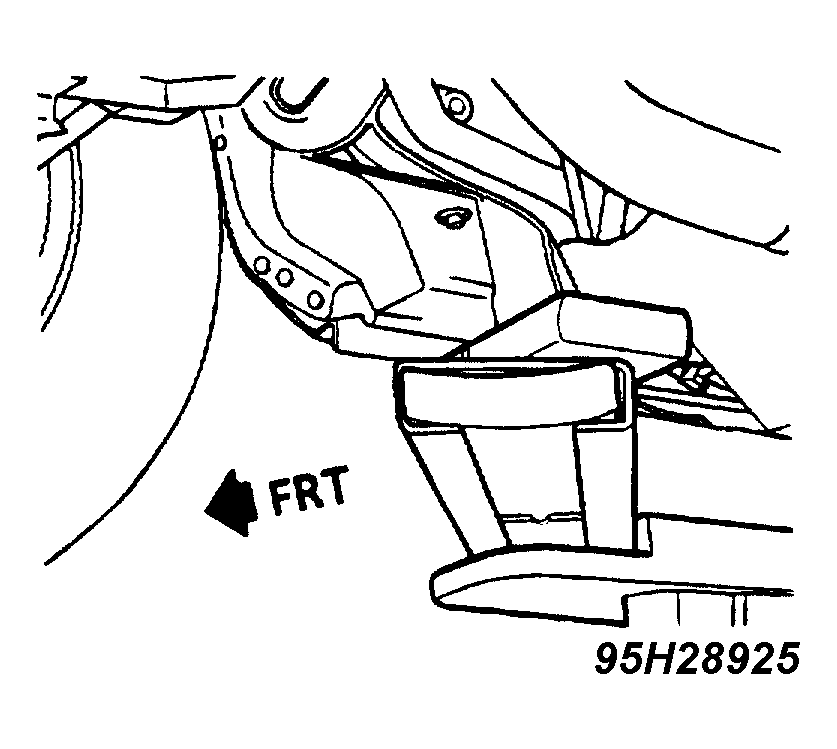

Fig 2: Using Frame Contact Hoist Rearward of Right Front Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 3: Using Frame Contact Hoist Forward of Left Rear Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 4: Using Frame Contact Hoist Forward of Right Rear Wheel
