EXPERTEC TSB (87-100)

Publication date: 1987-04-03
Reference number: 87-100

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 87-100, Date of Issue: 04/03/87

04/03/1987

Chevrolet 87-100

Fig 1: Graphic

MODEL AND YEAR: 1985-87 CAMARO, CORVETTE WITH 5.0L OR 5.7L PFI ENGINE (VIN CODES F AND 8)

TO: ALL CHEVROLET DEALERS

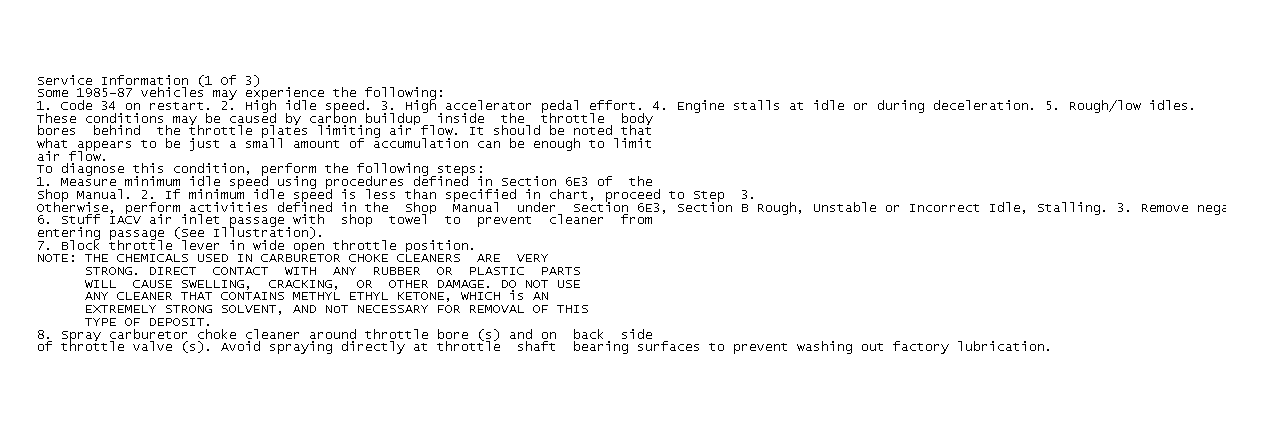

Fig 2: Service Information (1 Of 3)

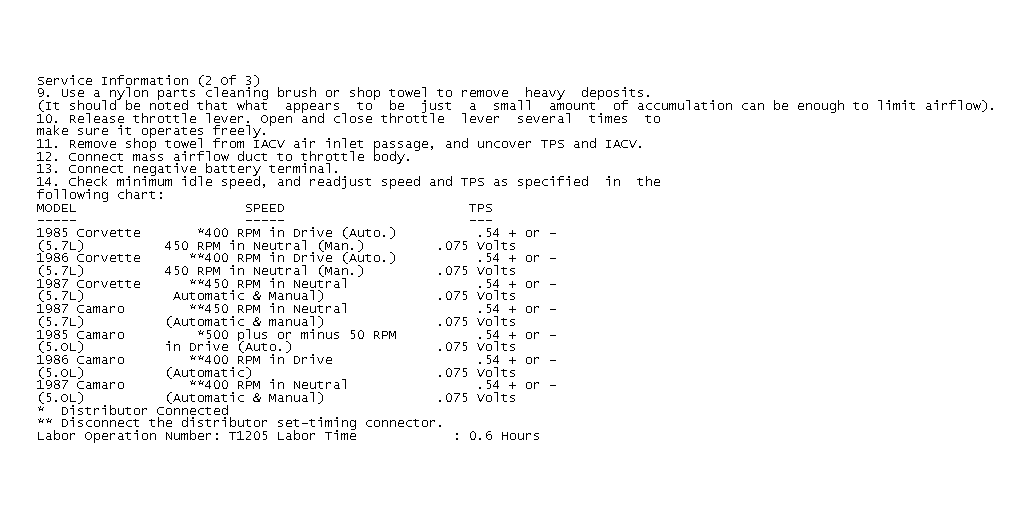

Fig 3: Service Information (2 Of 3)

Fig 4: Service Information (3 Of 3)
