Wiring Diagrams

NOTE: For wiring not covered in this article, refer to appropriate WIRING DIAGRAM article.

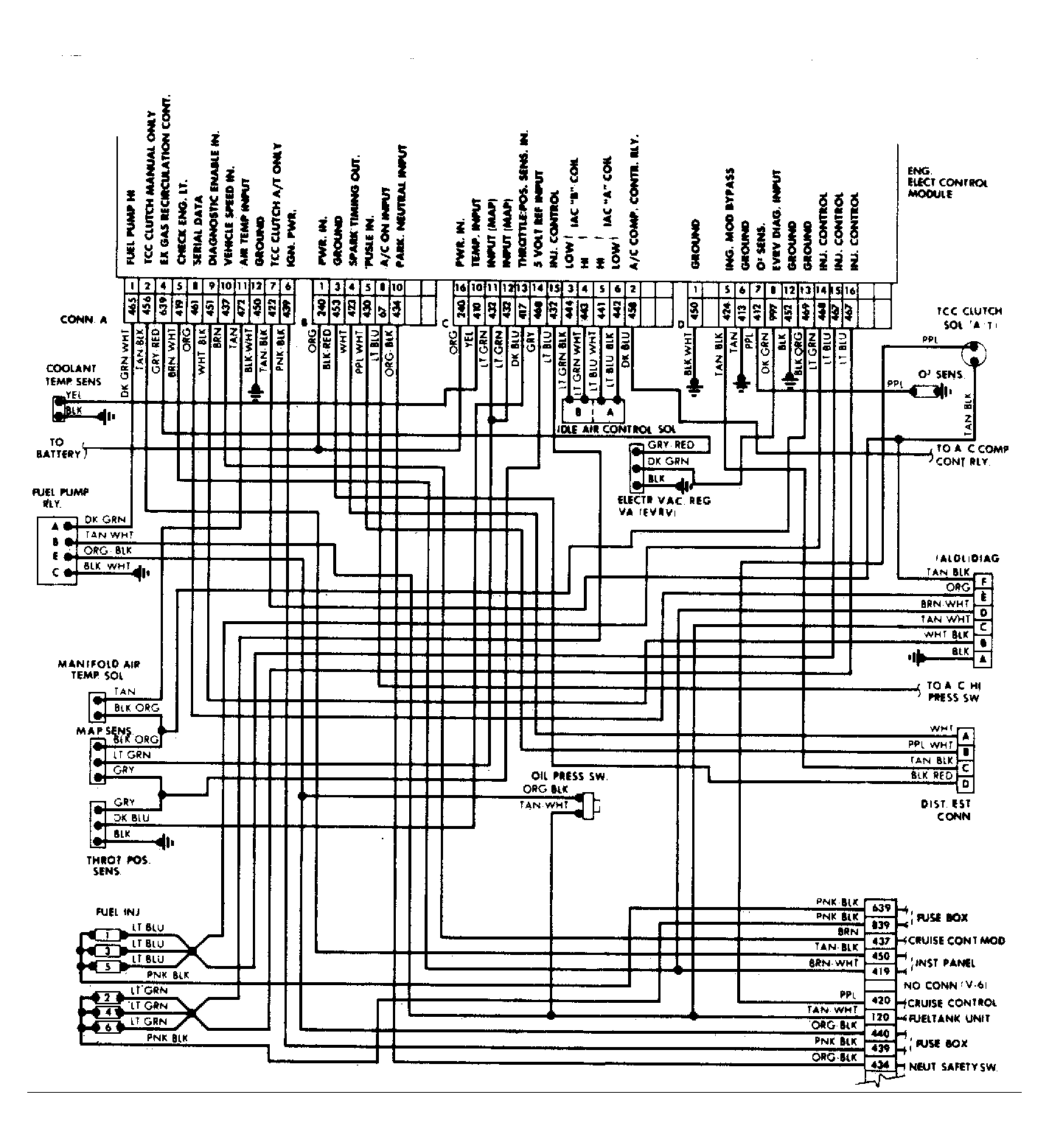

Fig 1: 2.8L Port Fuel Injection CCC Wiring Diagram
G4993

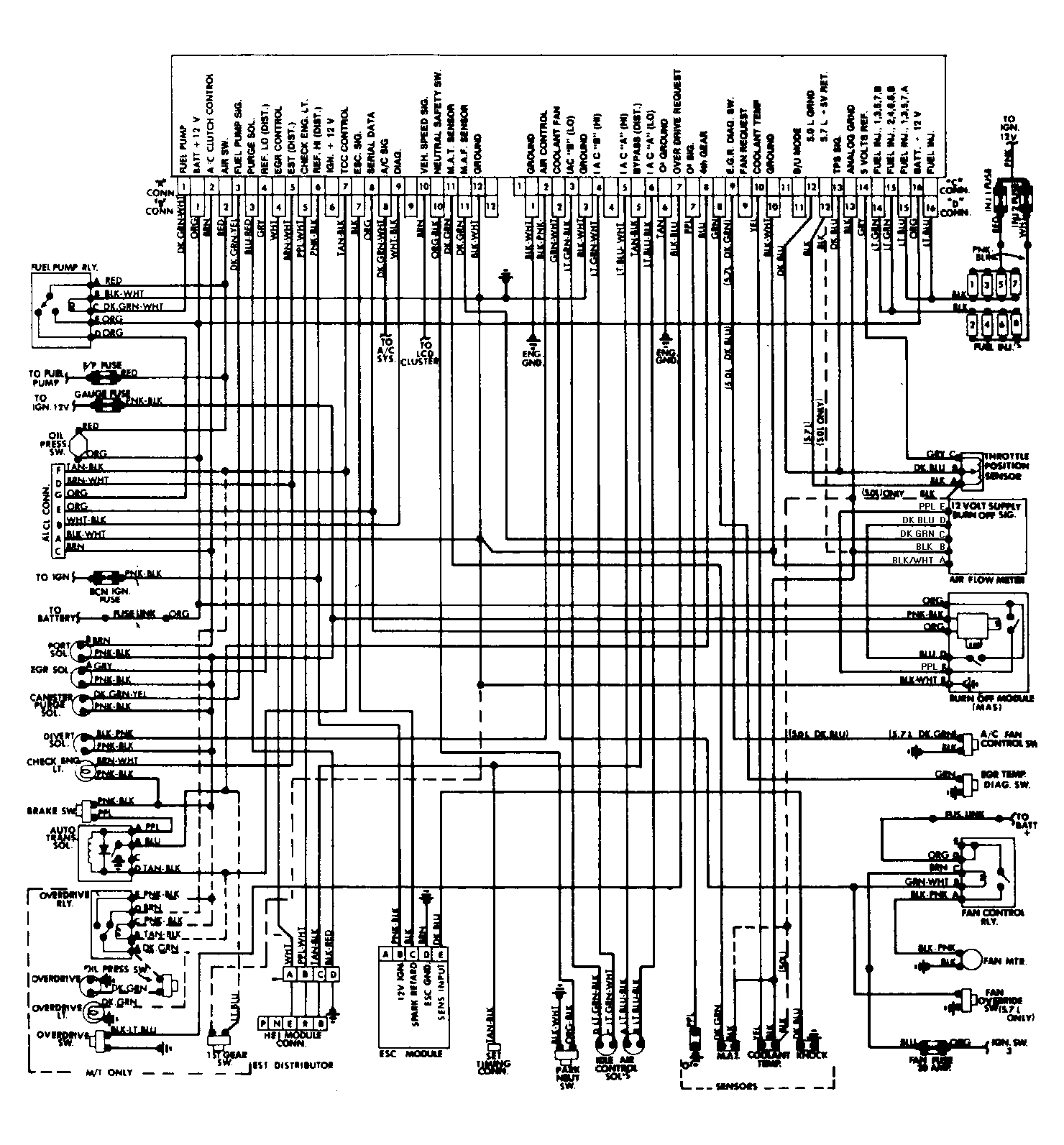

Fig 2: 5.0L & 5.7L Port Fuel Injection CCC Wiring Diagram
G3052
