Chart C13 - Functional Burn-Off Control Check (5.0L & 5.7L)
Chart C13 - Functional Burn-Off Control Check (5.0L & 5.7L)

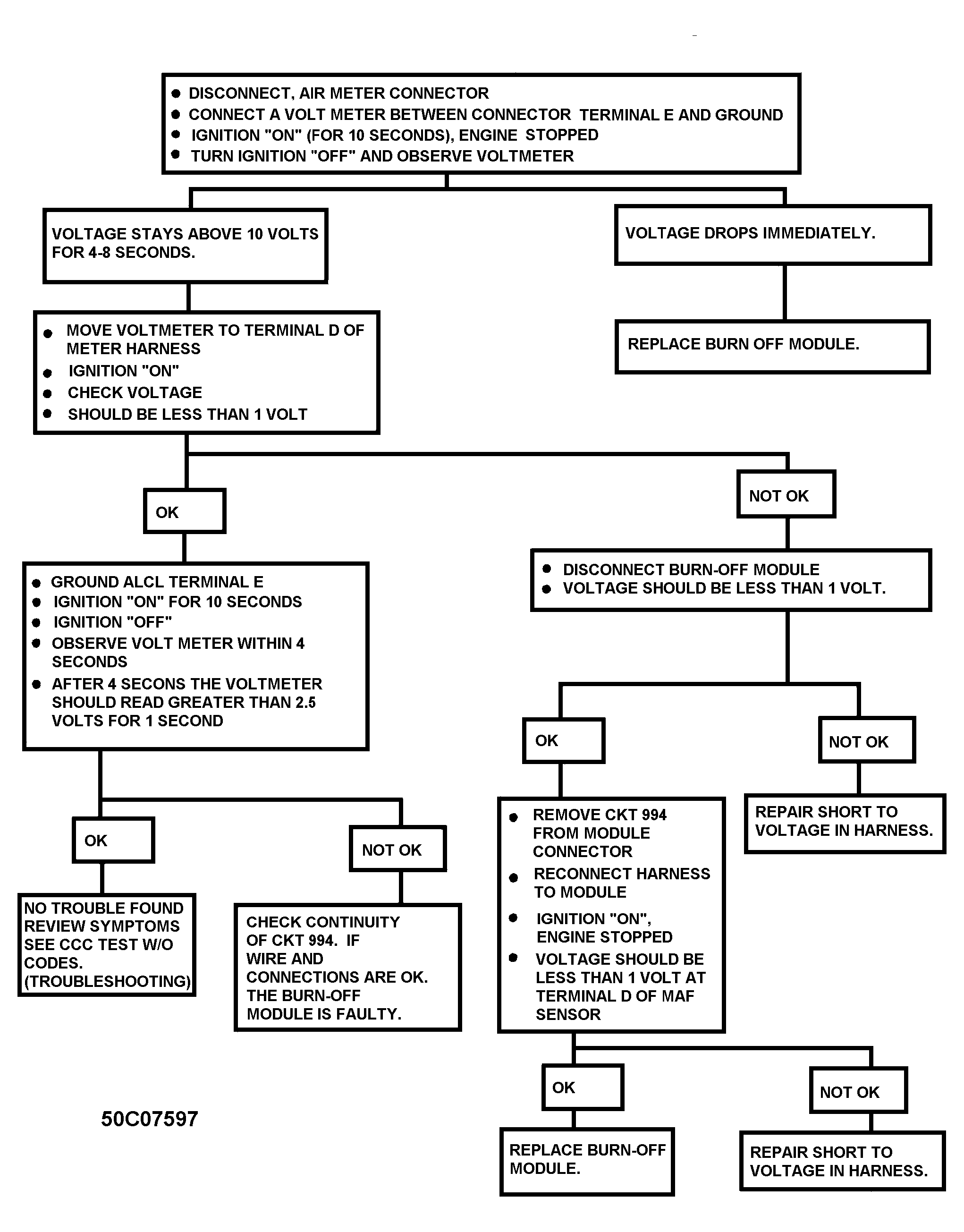

Fig 1: Chart C13 - Functional Check of Burn-Off Control (5.0L & 5.7L)
