Chart C1E - Vac Sensor Check

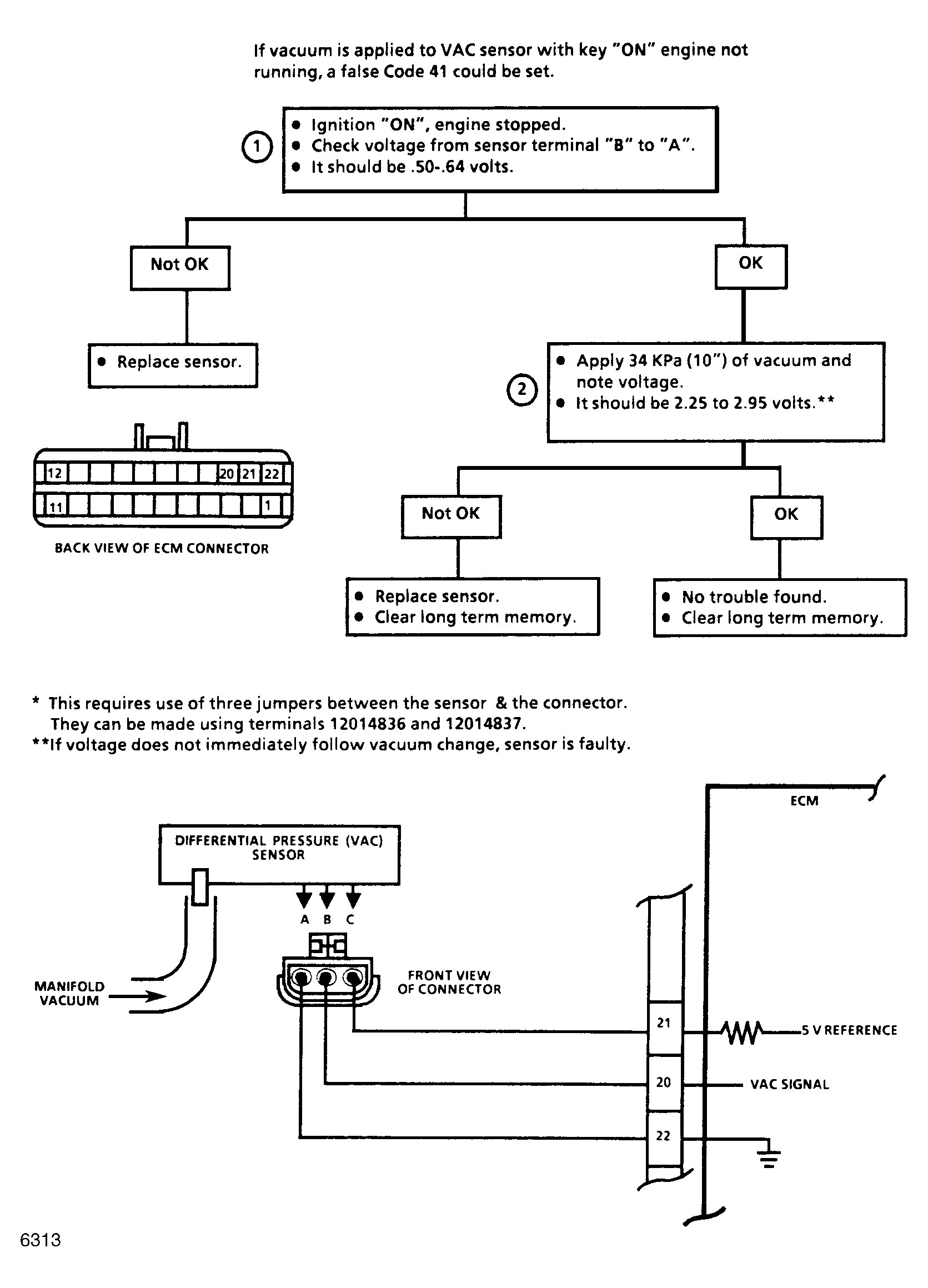

Fig 1: Flow Chart C1E, Differential Pressure Sensor (VAC) Check

G6313

Fig 2: Flow Chart C1E, Differential Pressure Sensor (VAC) Check

GB0045930
