Chart C4B - Ignition System Check
Chart C4B - Ignition System Check

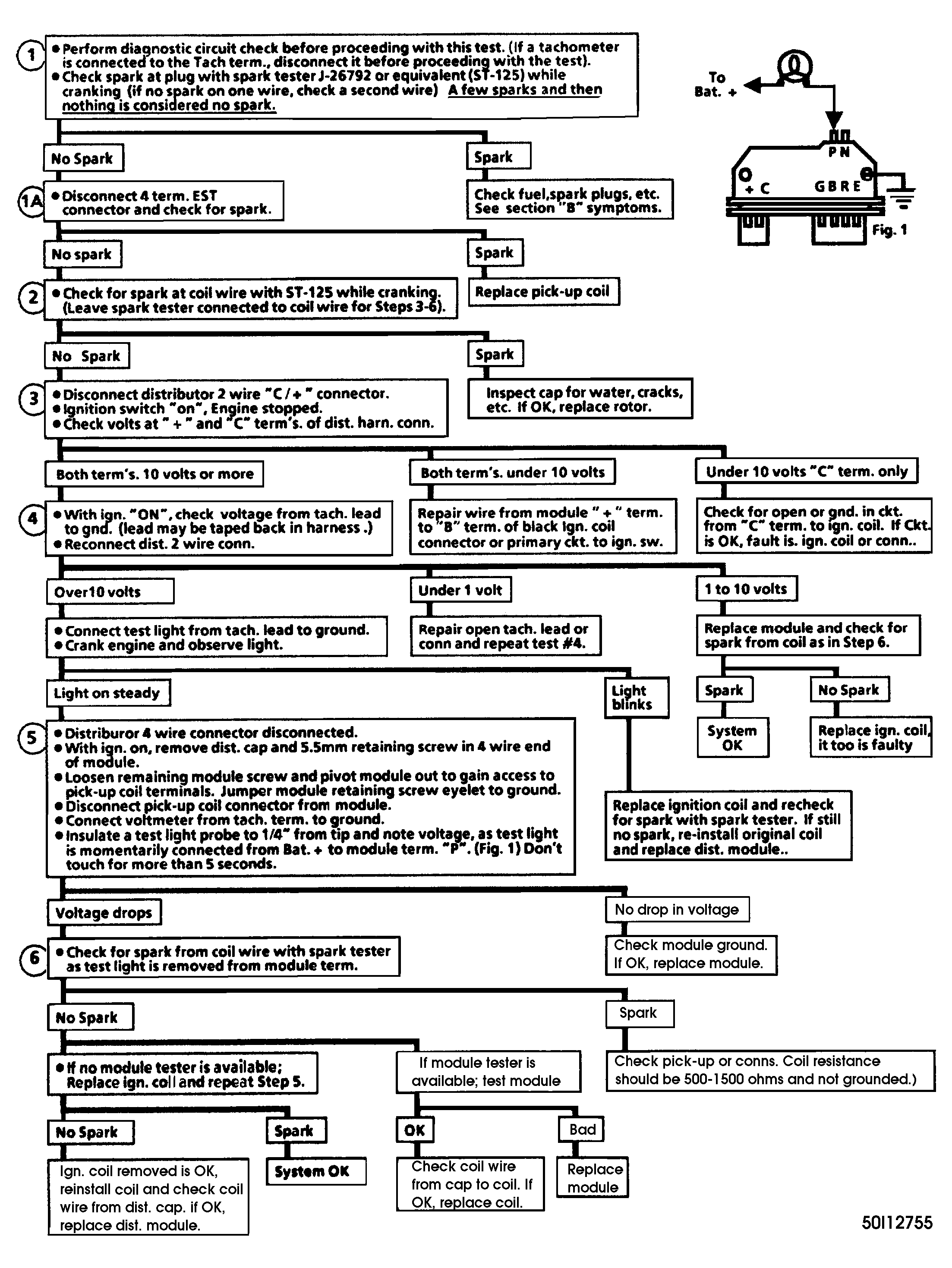

Fig 1: Chart C4B, Ignition System Check
