Flow Chart - Diagnostic Circuit Check

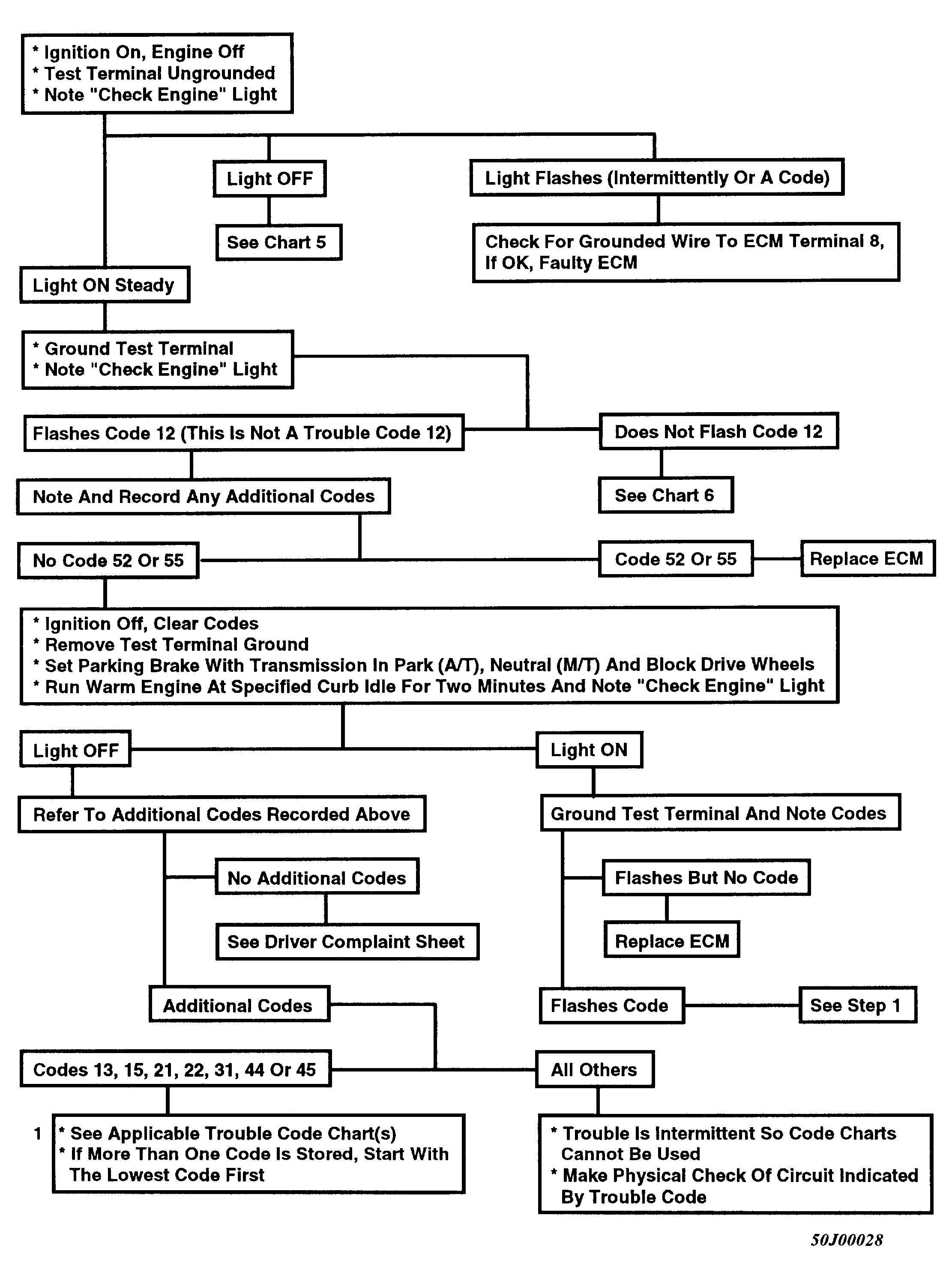

Fig 1: Flow Chart - Diagnostic Circuit Check

G50J00028

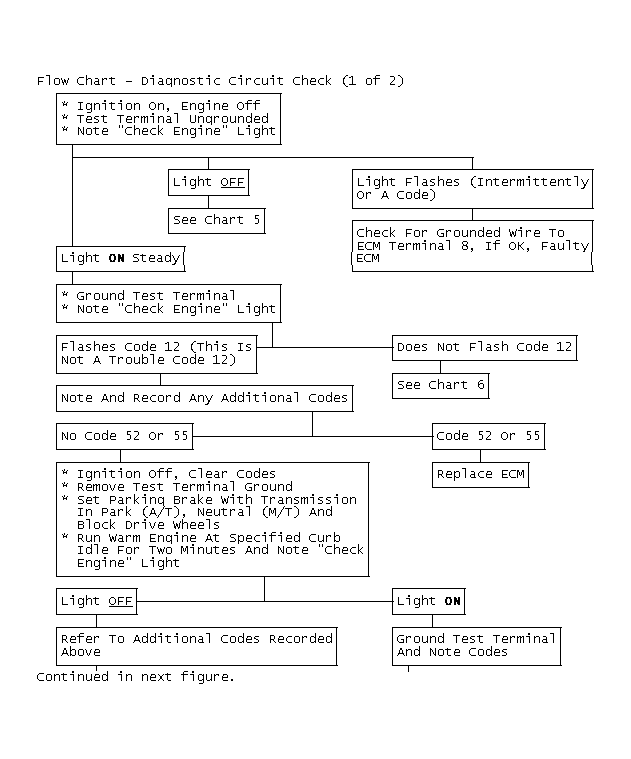

Fig 2: Flow Chart - Diagnostic Circuit Check (1 of 2)

GB0020790

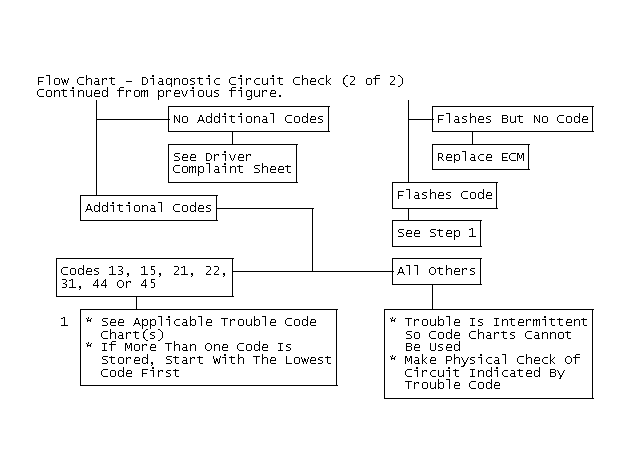

Fig 3: Flow Chart - Diagnostic Circuit Check (2 of 2)

GB0020791
