Intermediate Servo: Disassembly

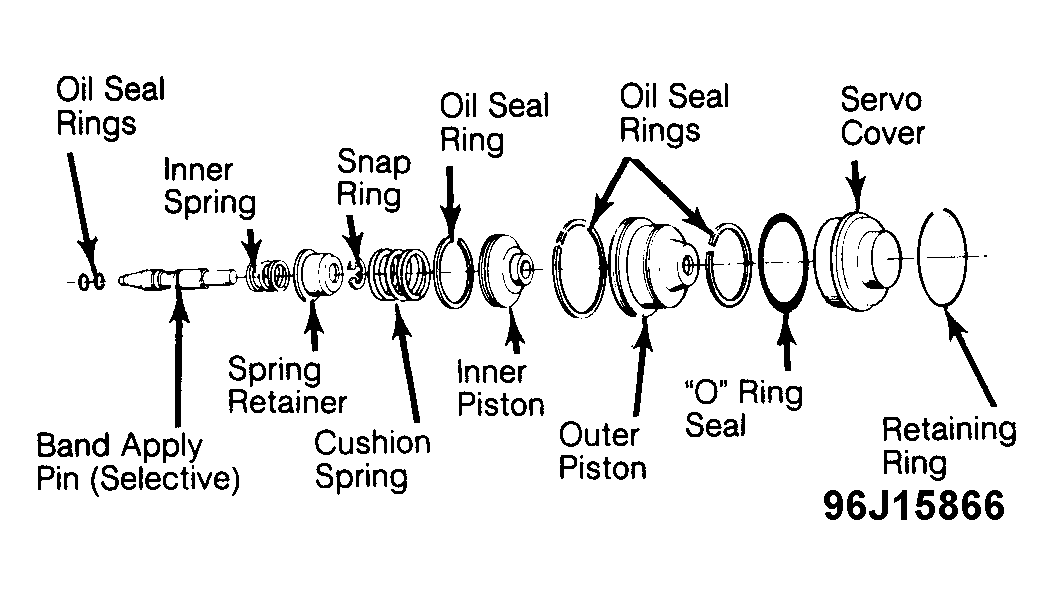

Compress intermediate servo piston spring. Using small flat blade screwdriver, remove servo pin-to-piston snap ring. Separate band apply pin, spring and washer from servo piston. See Figure .
Compress intermediate servo piston spring. Using small flat blade screwdriver, remove servo pin-to-piston snap ring. Separate band apply pin, spring and washer from servo piston. See Figure .
