Chart C-8A-1: TCC Check

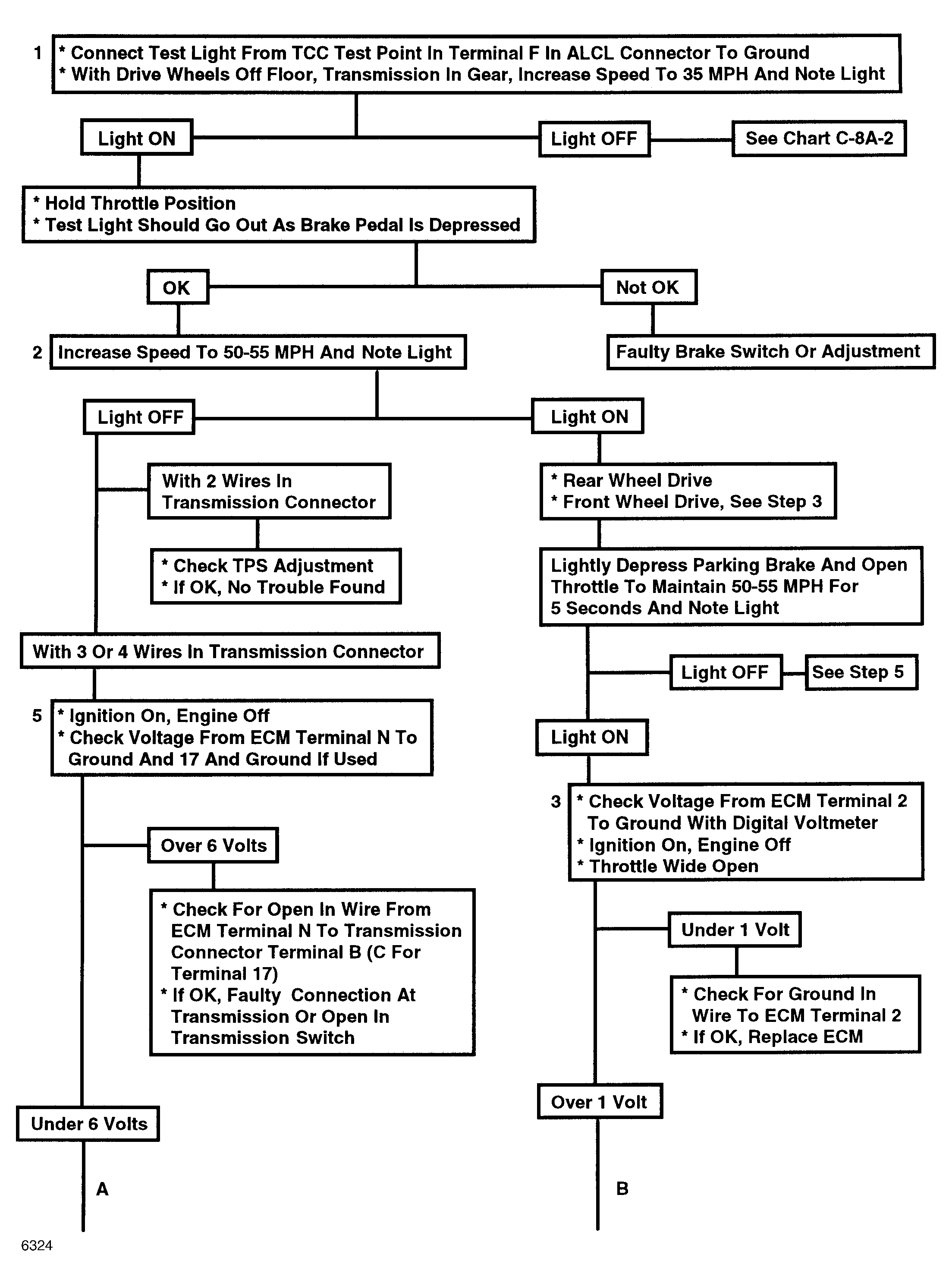

Fig 1: Chart C-8A-1: TCC Check Flow Chart (Part 1, 1 Of 2)

G6324

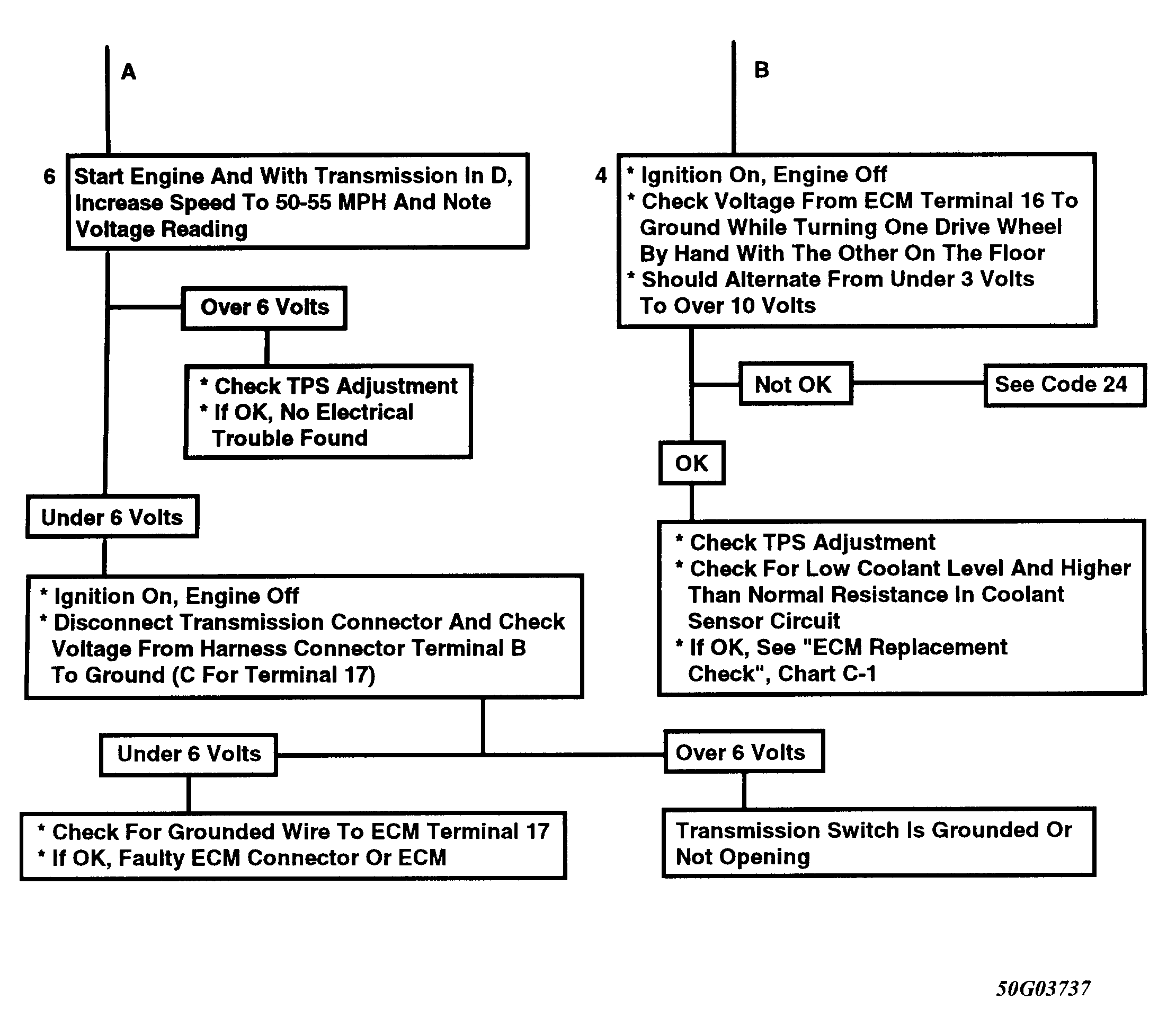

Fig 2: Chart C-8A-1: TCC Check Flow Chart (Part 1, 2 Of 2)

G50G03737
