Chart C-6A: Air Management Check

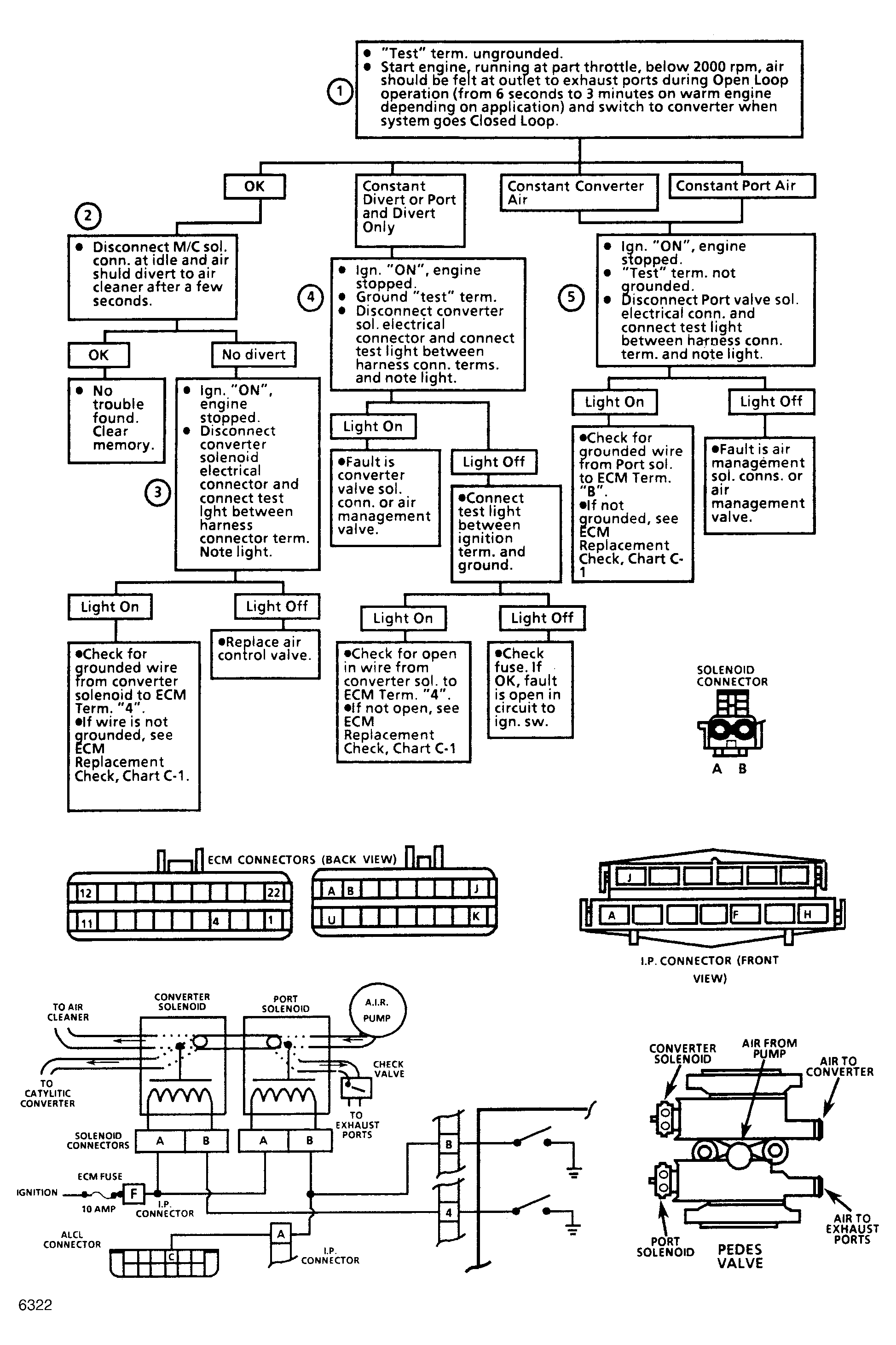

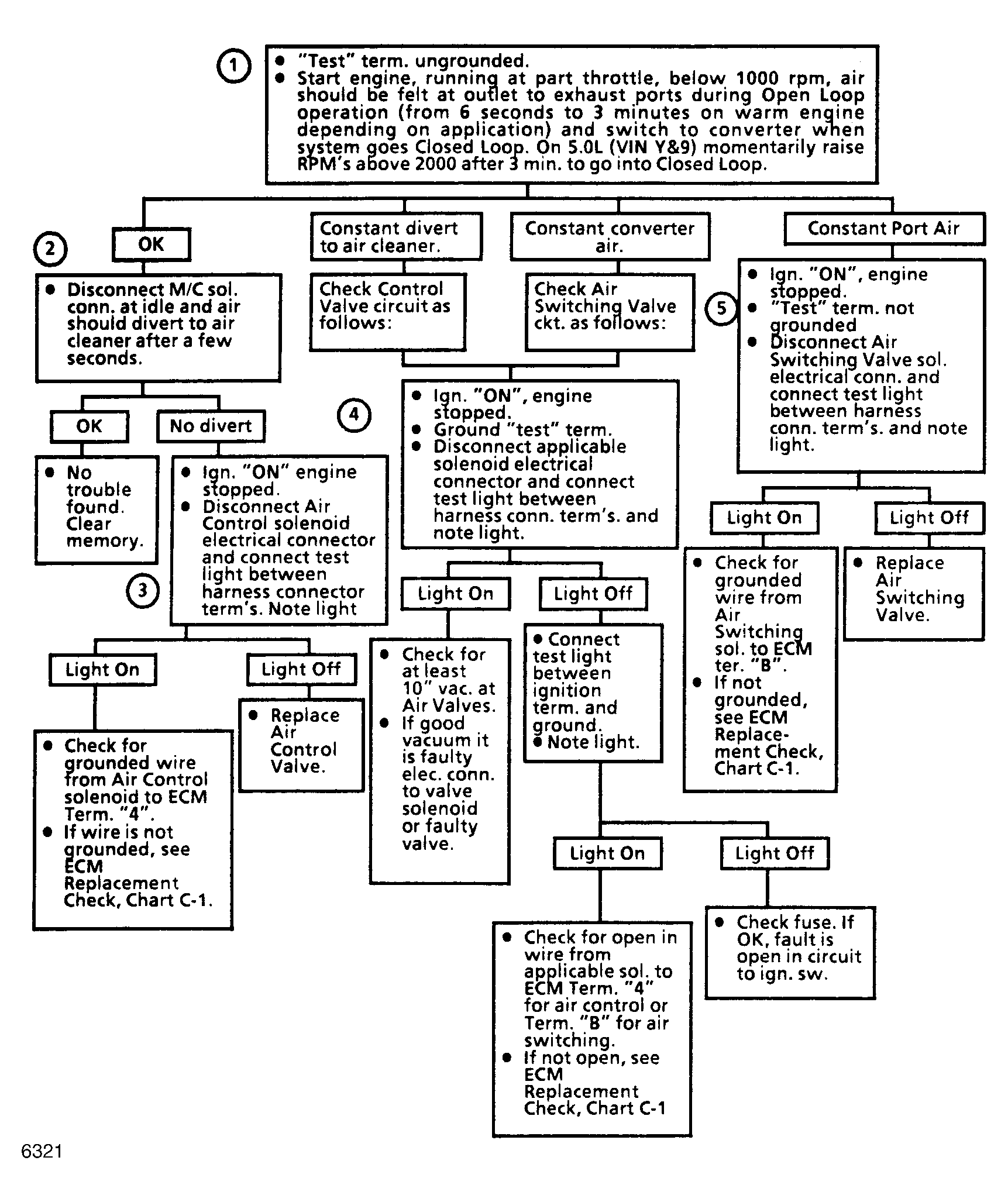

Fig 1: Chart C-6A: W/Elect Divert & Switching Valve Flow Chart

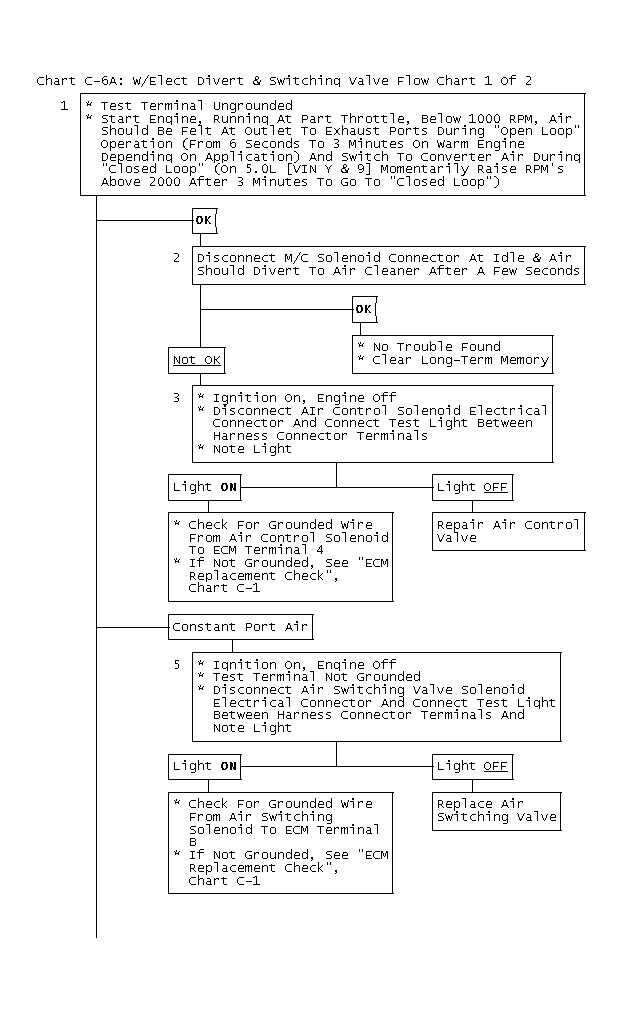

Fig 2: Chart C-6A: W/Elect Divert & Switching Valve Flow Chart 1 Of 2

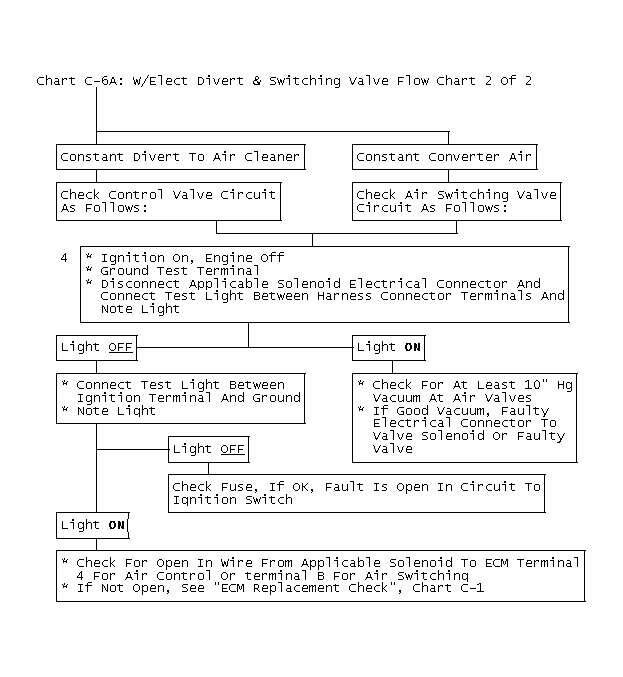

Fig 3: Chart C-6A: W/Elect Divert & Switching Valve Flow Chart 2 Of 2

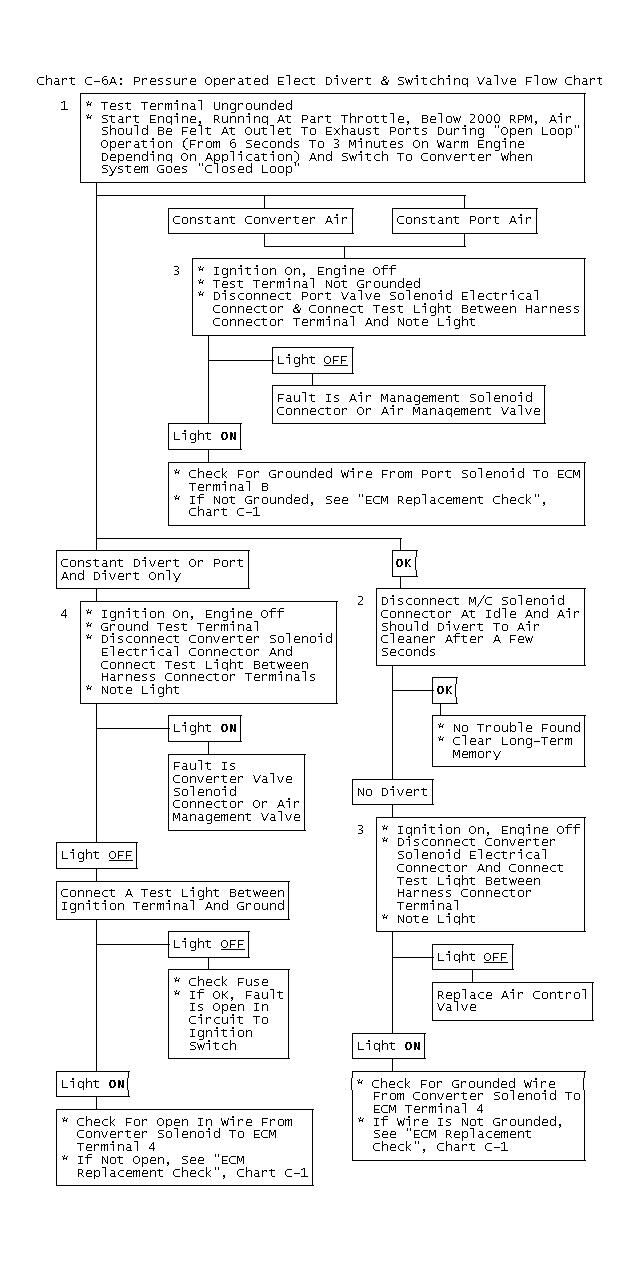

Fig 4: Chart C-6A: Pressure Operated Elect Divert & Switching Valve Flow Chart

Fig 5: Chart C-6A: Pressure Operated Elect Divert & Switching Valve Flow Chart
