Chart C-4B: Ignition System Check (W/Remote Coil)

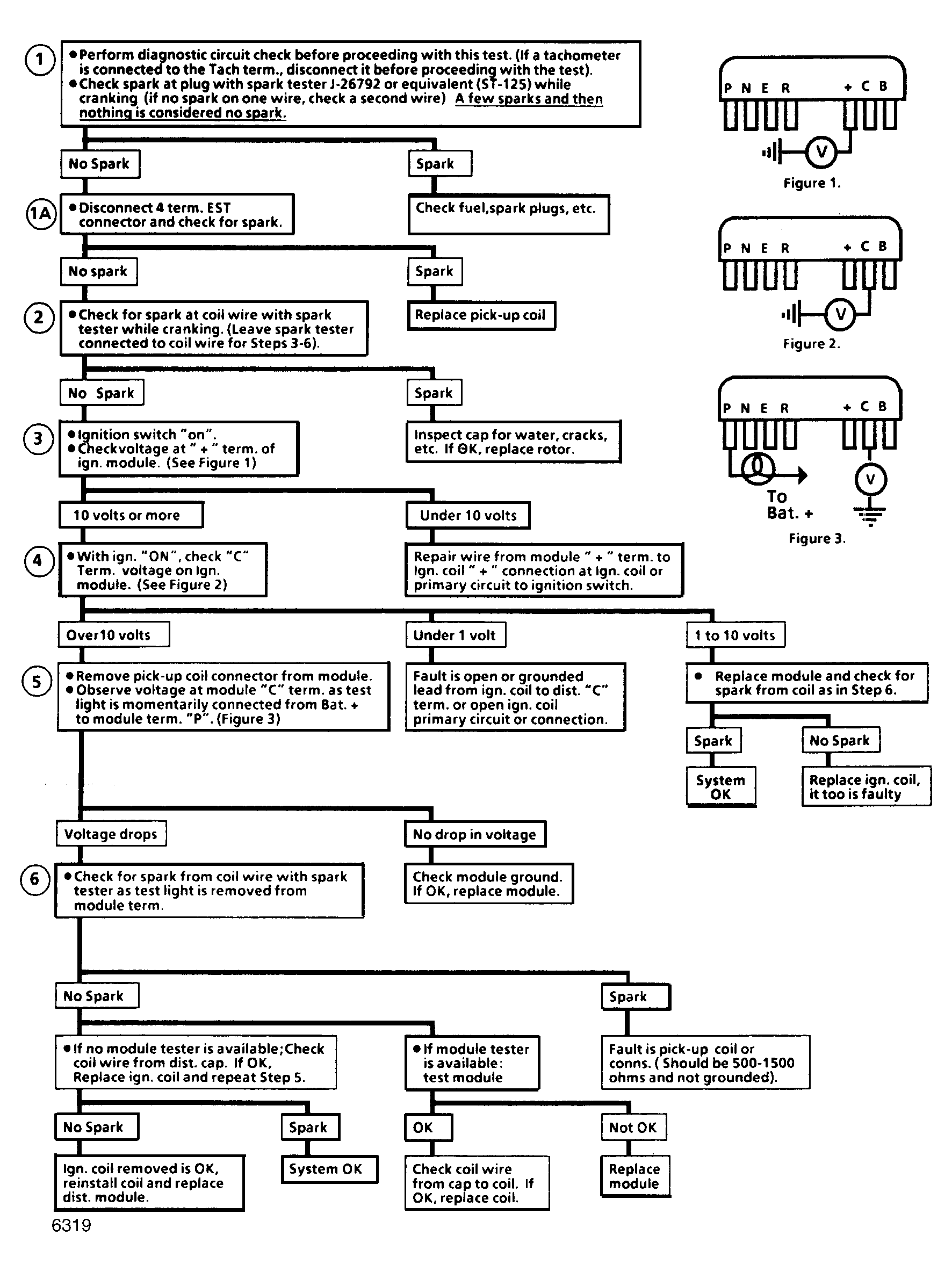

Fig 1: Chart C-4B: Ignition System Check Flow Chart (W/Remote Coil)

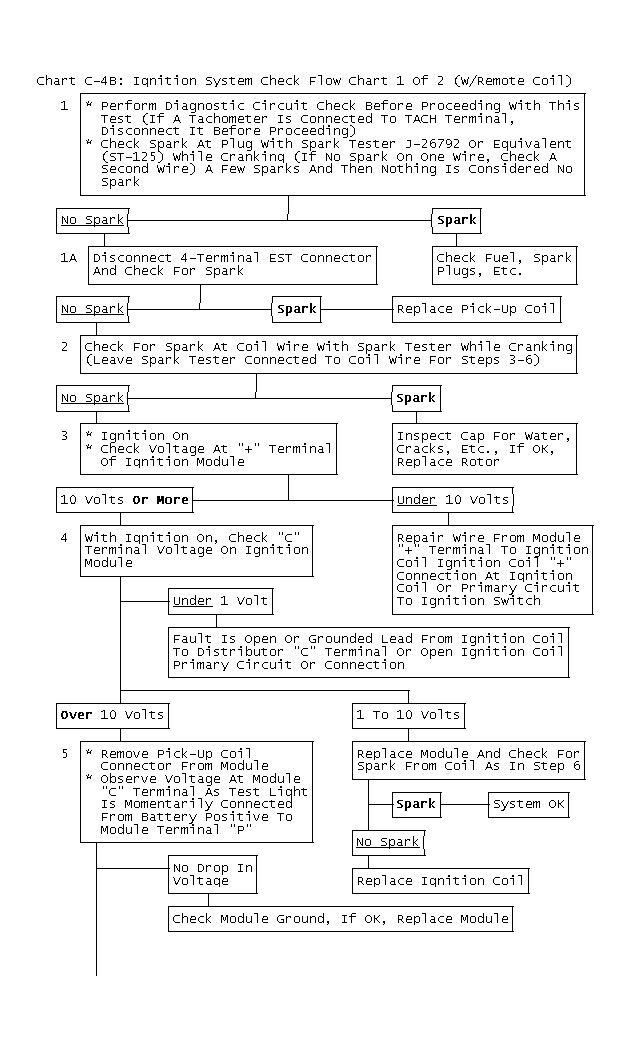

Fig 2: Chart C-4B: Ignition System Check Flow Chart 1 Of 2 (W/Remote Coil)

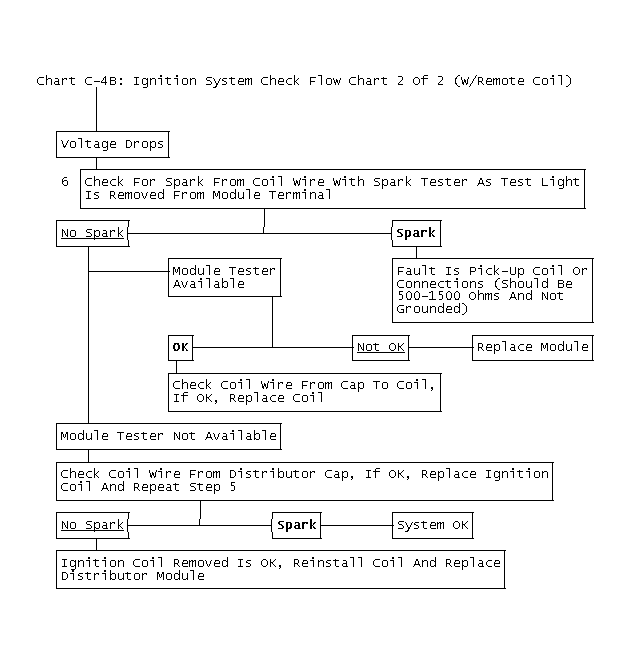

Fig 3: Chart C-4B: Ignition System Check Flow Chart 2 Of 2 (W/Remote Coil)
