Testing & Diagnosis

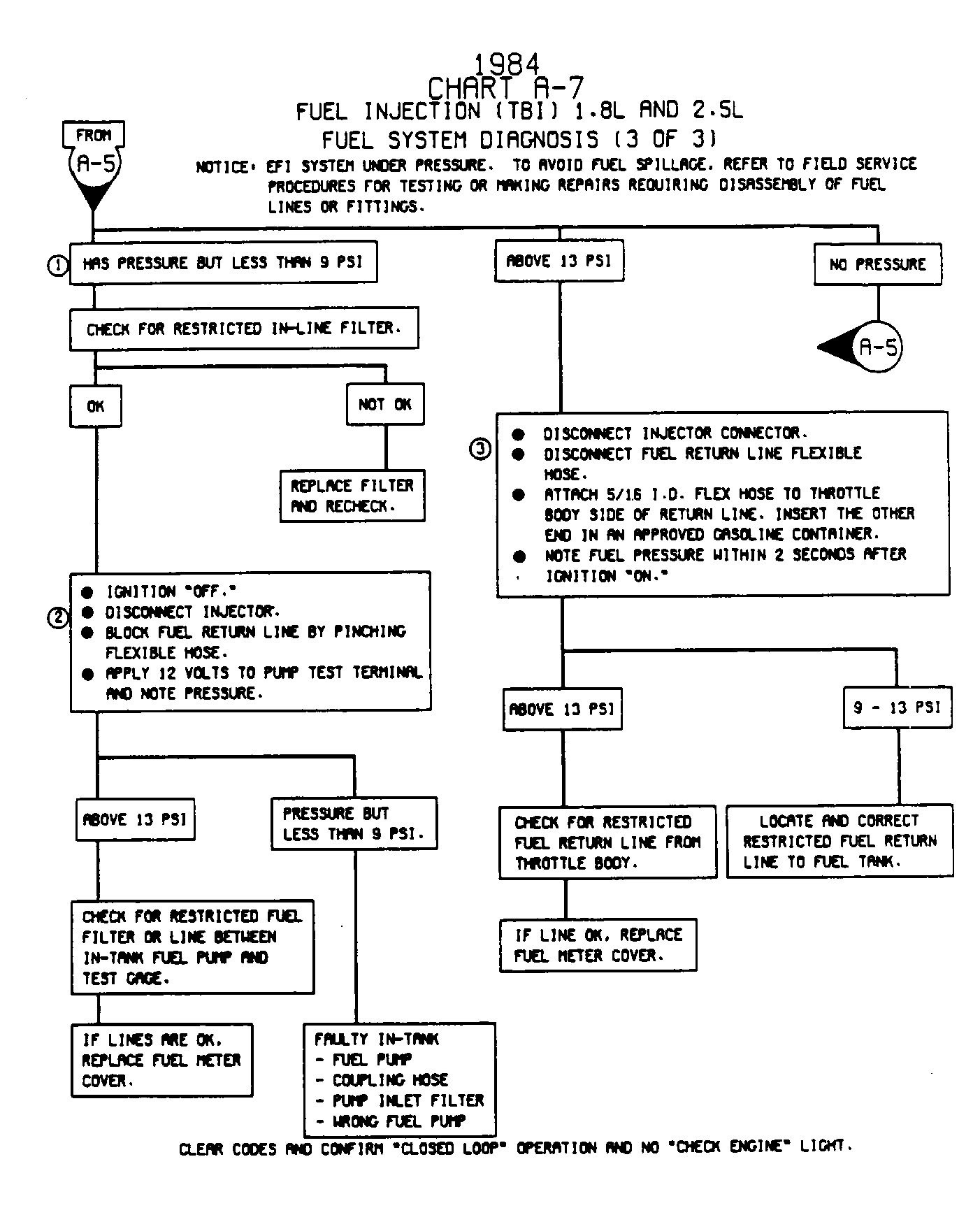

Fig 1: 1984 Fuel System Diagnosis

G1689

Fig 2: 1984 Fuel System Diagnosis (Cont.)

G1691
