Fuel Meter Cover

  1. Install new fuel pressure regulator dust seal in fuel meter body recess in rear unit. Install new fuel return passage gasket. Install new fuel meter cover gasket on fuel meter body.
  2. Install fuel meter cover with pressure regulator on rear unit. Install fuel meter cover with accumulator on front unit. Apply thread locking compound (Loctite 262 or equivalent) to 5 cover screws. Install lock washers and screws (2 short screws go next to injector).
NOTE: Pressure regulator has a taller regulator "can" than the accumulator assembly.

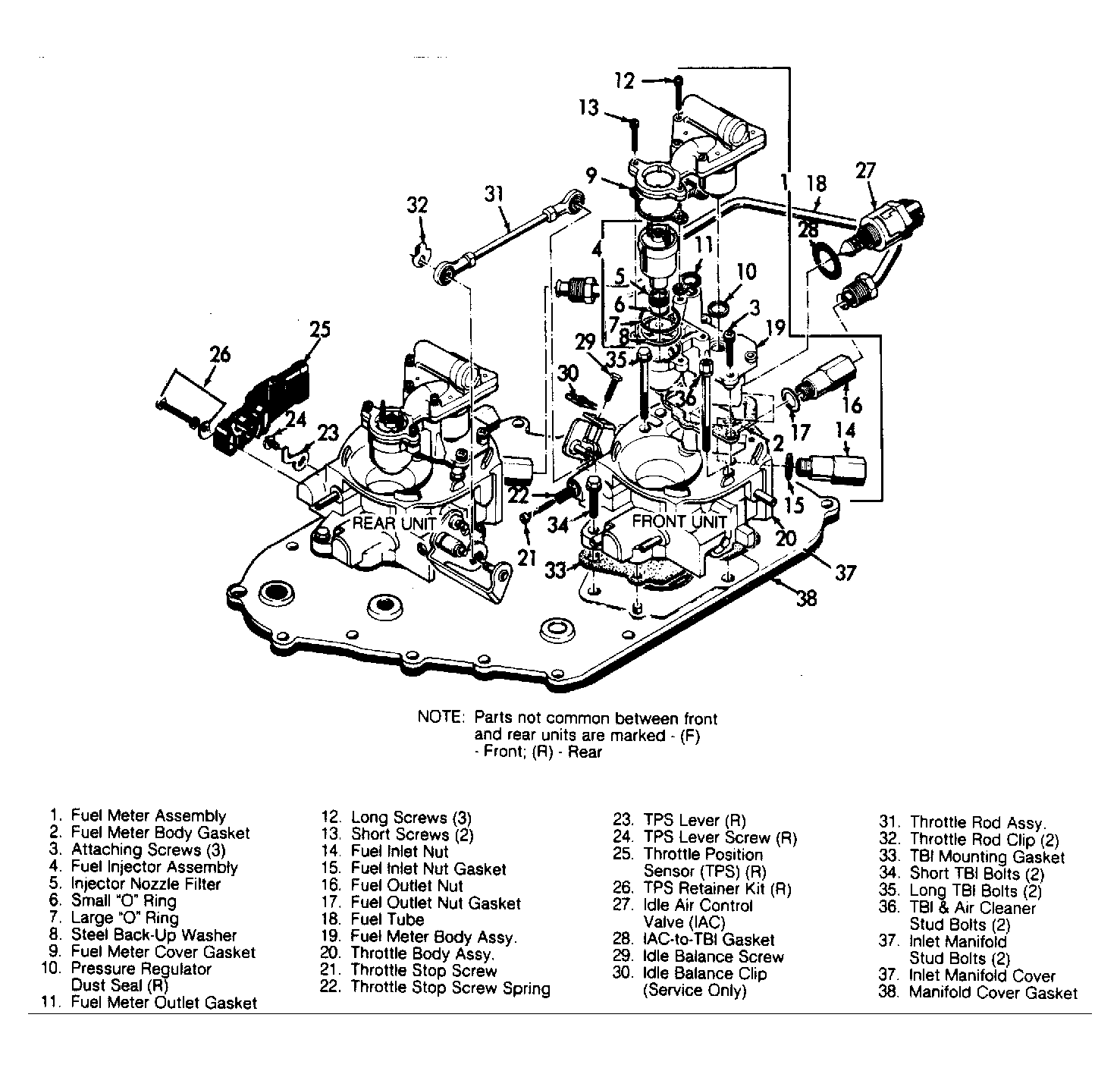

Fig 1: Exploded View of Model Dual Unit (Crossfire) Throttle Body Assembly (Exploded View of Front Unit is Typical for Rear Unit)
G1697
