Corvette Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
1.8L/2.5L/5.7L TBI Tests
>>
Chart C2C - Idle Air Control
Chart C2C - Idle Air Control

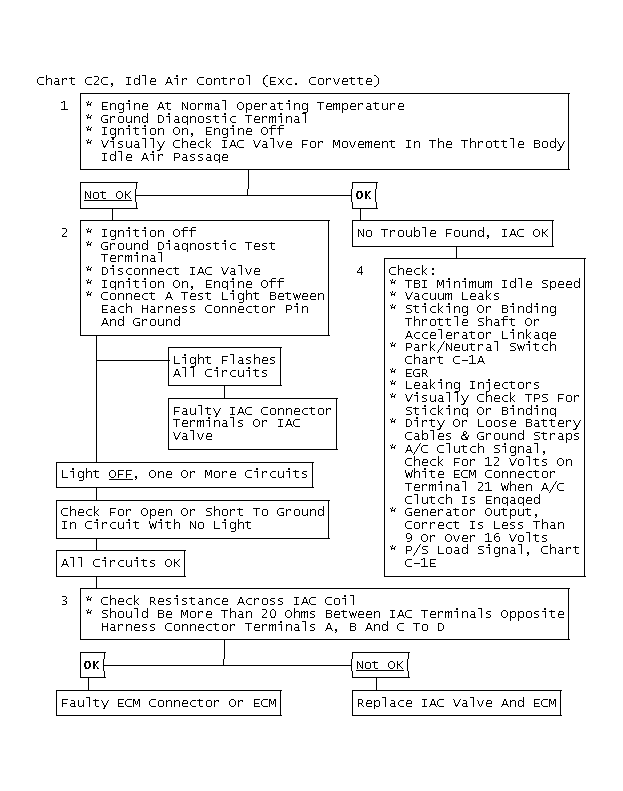

Fig 1: Chart C2C, Idle Air Control Flow Chart (Exc. Corvette)

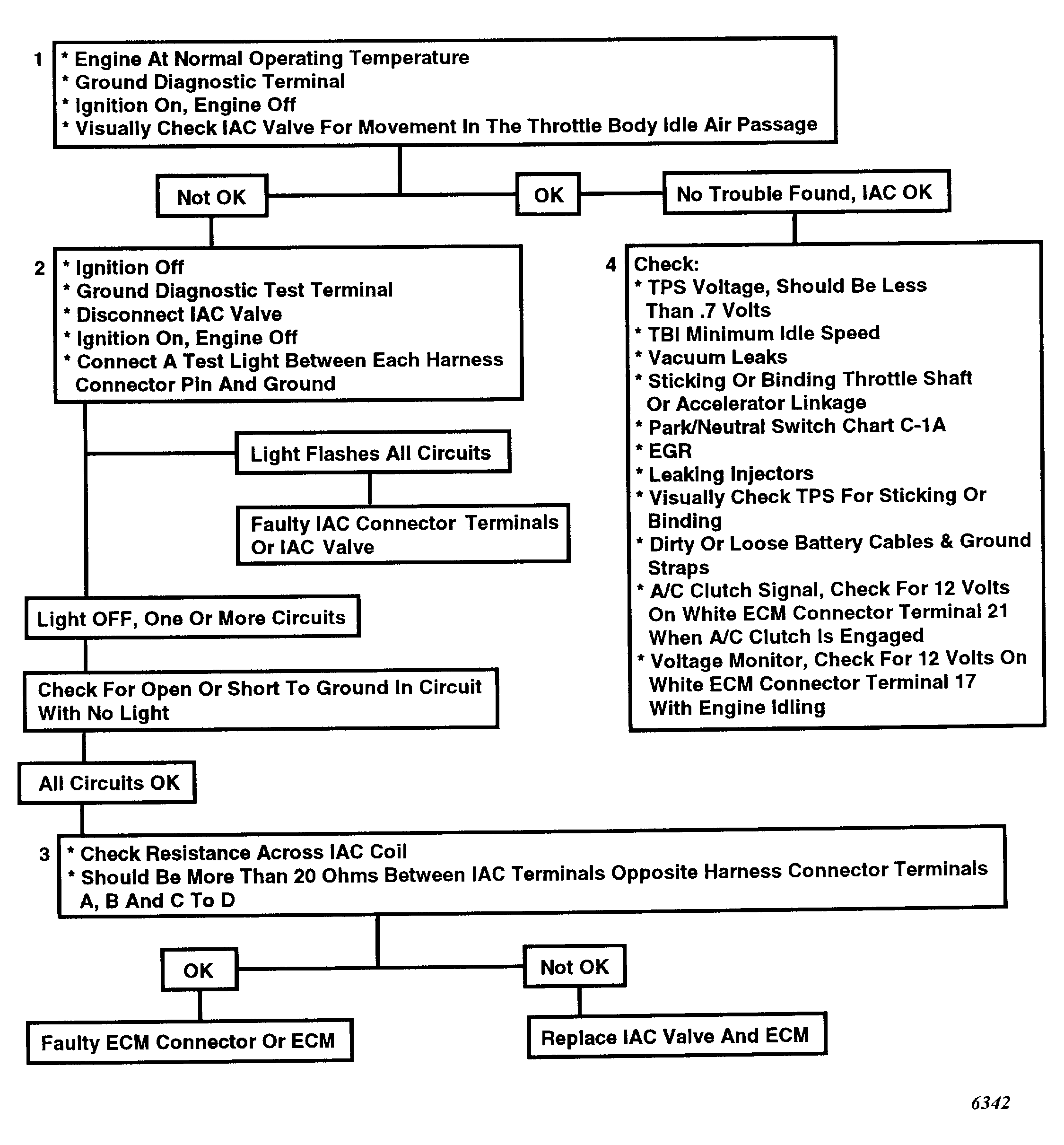

Fig 2: Chart C2C, Idle Air Control Flow Chart (Exc. Corvette)

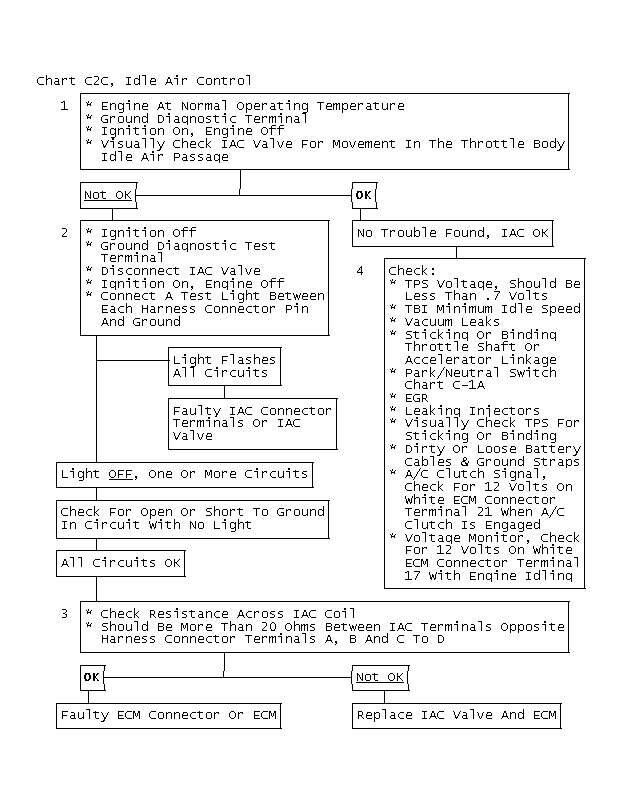

Fig 3: Chart C2C, Idle Air Control Flow Chart (Corvette)

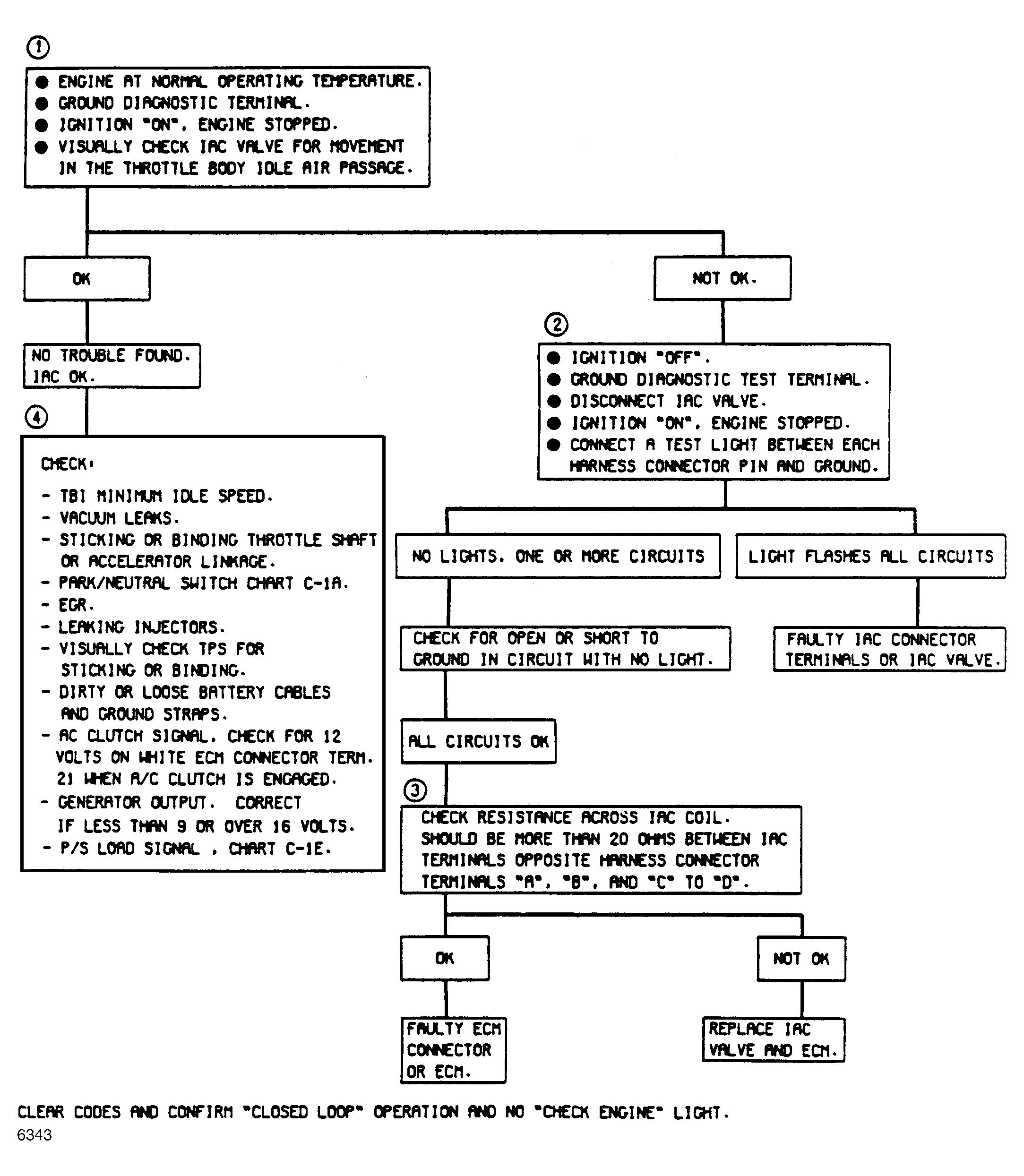

Fig 4: Chart C2C, Idle Air Control Flow Chart (Corvette)
